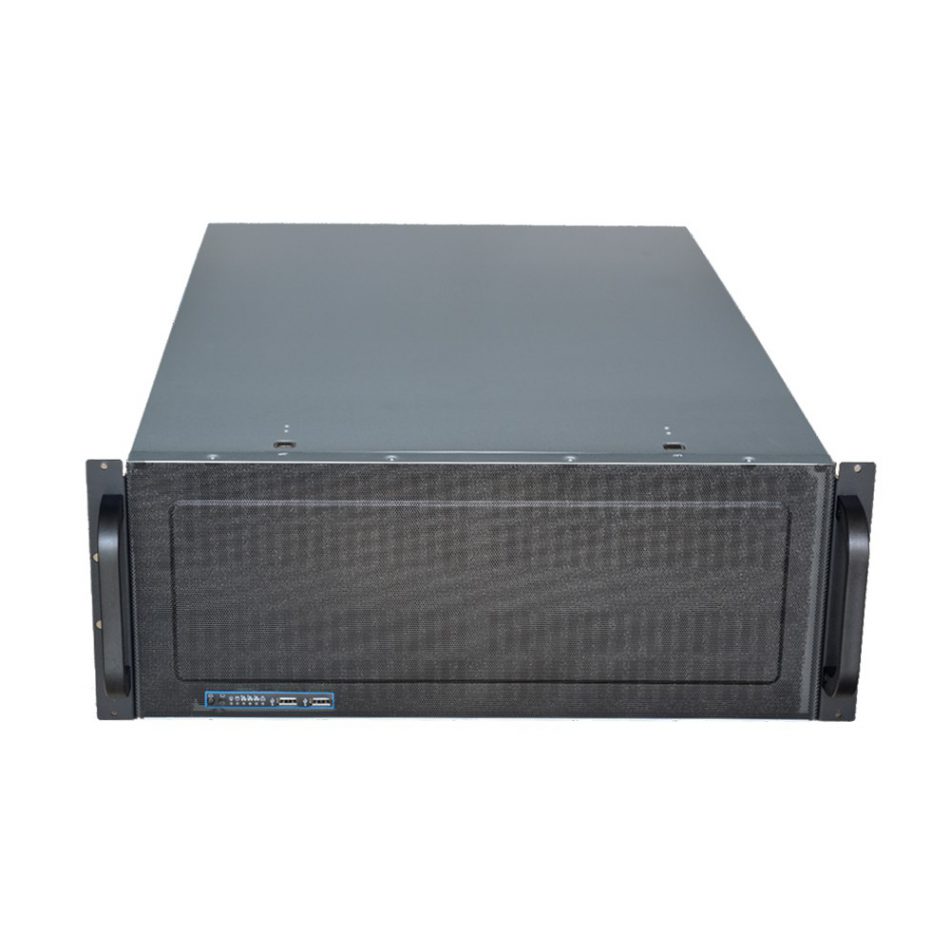

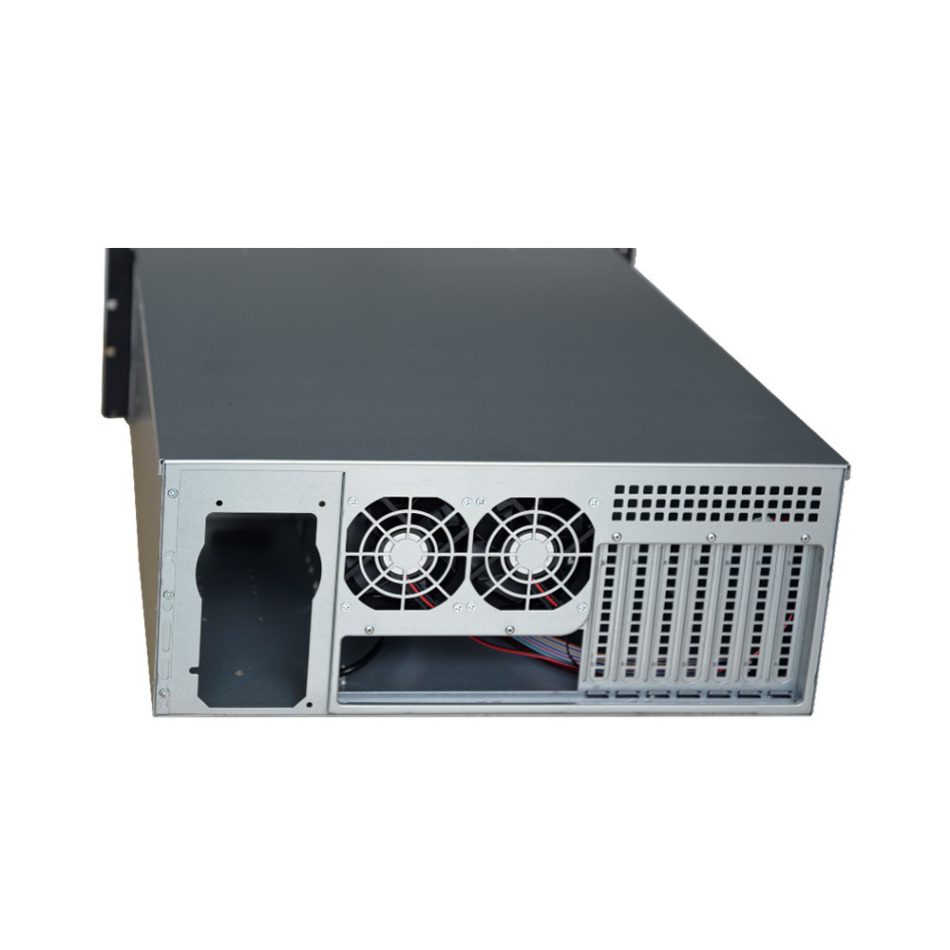

Rack Mountable Server Chassis Case 4U 650mm Depth with ATX PSU Window – No PSU

 Part# TGC-H4-650

  • 4U Rackmount Server Chassis
  • 483 x 650 x 176mm
  • Standard ATX PSU Compatibility
  • Standard ATX M/B Form Factor

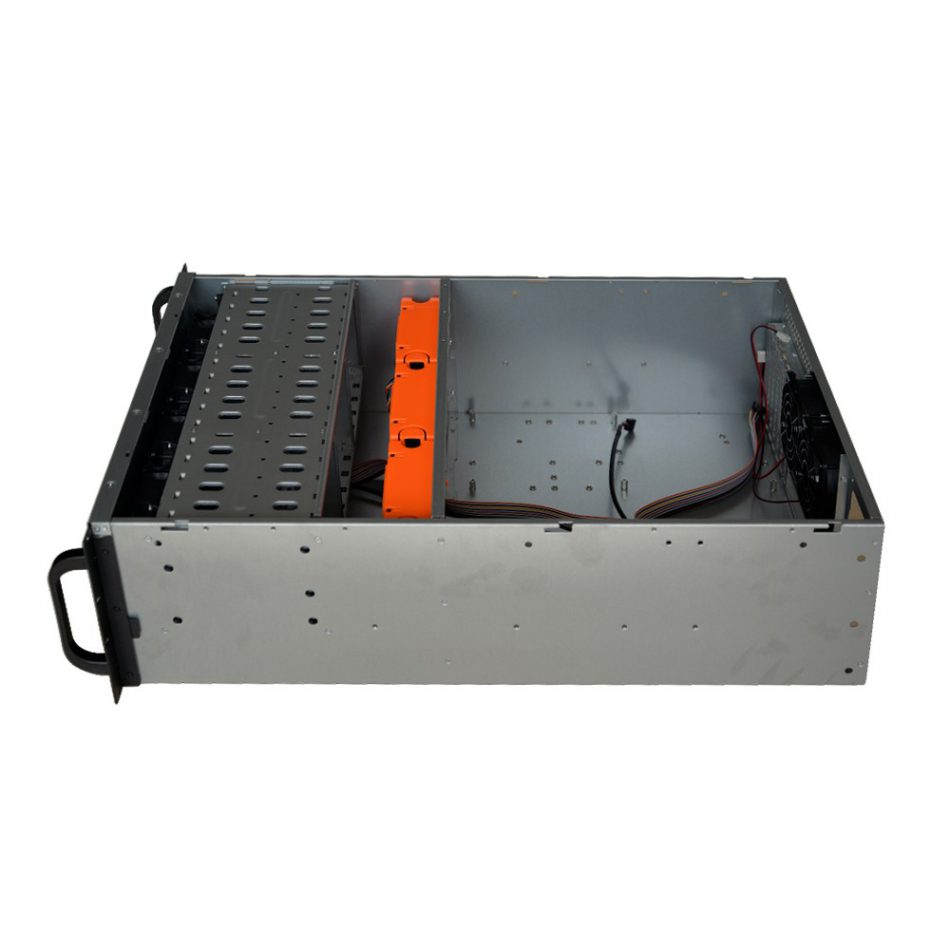

  • 15 Fixed Bays – Internal – 3.5″
  • 7 Full Height PCI Expansion Slots

Features:

  • 4U rackmount design,meets EIARS-310C standard.
  • 15 x 3.5″ drive bays
  • Easy drive mounting with 24 screwless rails
  • Support EEB (12″x13″), CEB(12″x10.5″), ATX (12″x9.6″), Micro ATX (9.6″ x 9.6″) Mini ITX (6.7″ x 6.7″) motherboard
  • Rigid top cover

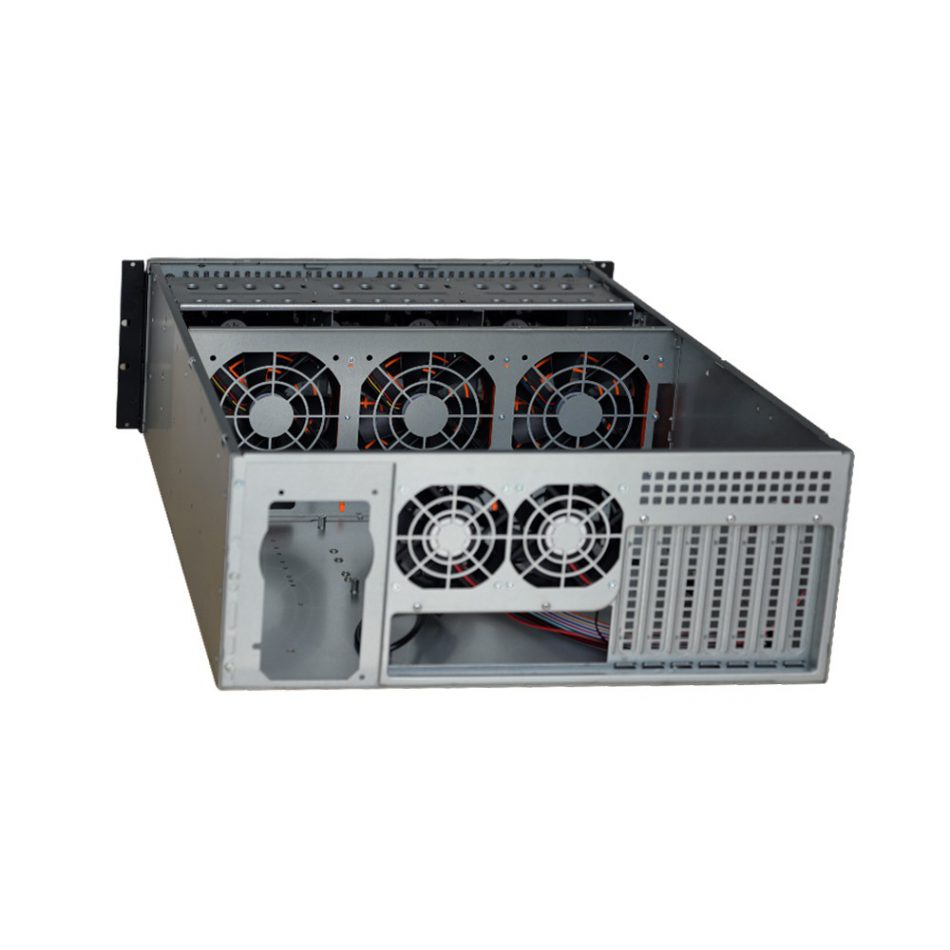

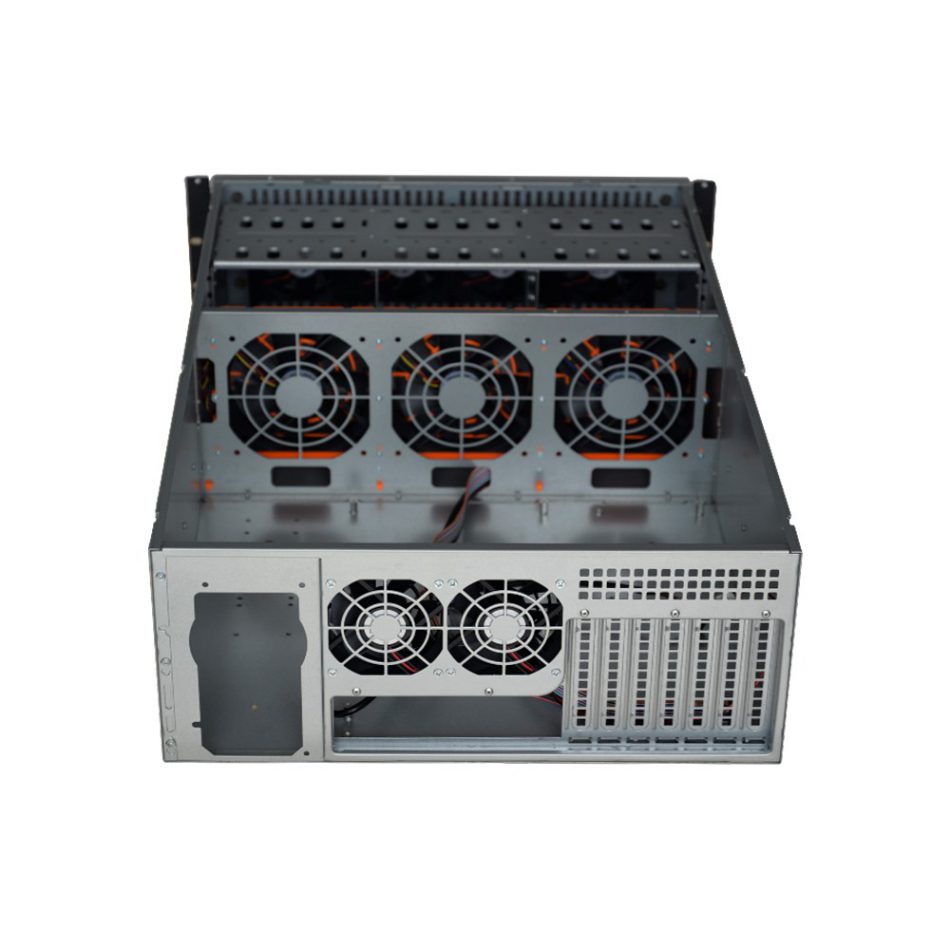

  • Supplied with 3 x 120mm Hot Swap Fan Wall and 4 x 80mm front fans, 2 x 80mm rear fans for better ventilation
  • Front accessible USB 2.0 ports
  • Smooth border prevent lacerating your skin

Specifications:

  • Drive Bay: Supports 15 x Fixed 3.5″ HDD Bays
  • Cooling Fans: 3 x 120mm Hot Swap Fan Wall and 4 x 80mm front fans,2 x 80mm rear fans
  • Switch: Power ON/OFF x 1, System reset x 1
  • Indicator: Power ON/OFF x 1, HDD x 1, NETWORK X 2
  • Connector: Two front accessible USB port
  • Motherboard Compatibility:
    • EEB (12″x13″)
    • CEB(12″x10.5″)
    • ATX (12″x9.6″)
    • Micro ATX (9.6″ x 9.6″)
    • Mini ITX (6.7″ x 6.7″)
  • Power Supply: Standard ATX (Redundant ATX not supported)
  • Dimensions (WxDxH): 483 x 650 x 176mm
  • Packing: single box
  • Weight: 14kg (approx)
  • Environment Temperature: 0/55 °C, 32/131 °F (Operating) -20/60 °C, -4/140 °F (Non-Operating)
  • Relative Humidity: 5% to 95%,non-condensing
  • Vibration (5-500Hz): 1 Grms (Operating), 2 G (Non-Operating)
  • Shock: 10 G(with 11ms duration, half sine wave) (Operating), 30 G (Non-Operating)
