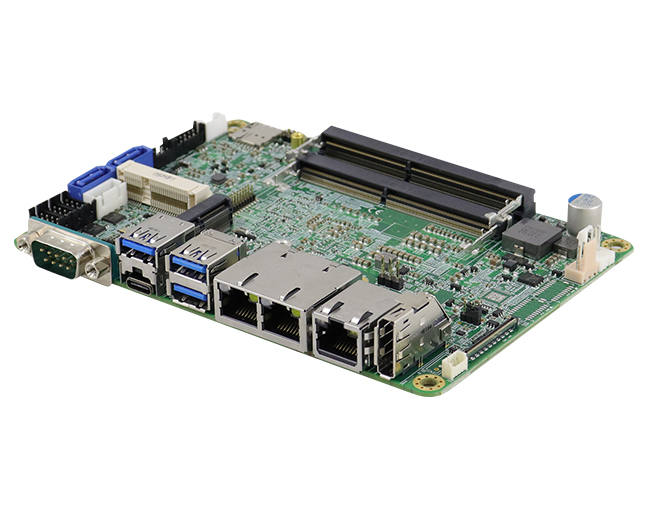

IB836 – Intel® Atom® x6000 Series 3.5″ Disk-Size SBC

Embedded Computing

IB836
Intel® Atom® x6000 Series 3.5″ Disk-Size SBC

  • Onboard Intel® Atom® x6000 Series processor
  • 2x DDR4-3200 SO-DIMM, Max.32GB, supports IBECC
  • Supports 2x DisplayPort (DP and Type-C), eDP or 24-bit dual-channel LVDS
  • 3x Intel® PCI-E GbE LAN
  • 2x USB 2.0, 4x USB 3.1, 2x SATA III
  • 1x M.2 sockets (E-Key), 1x Mini PCI-E slot (Full-size)
  • Watchdog timer, Digital I/O, TPM (2.0), mSATA(Share with SATA port)
  • Wide-range operating temperature from -40°C to 85°C

The IB836 is a 3.5-inch single board computer powered by robust Intel® Atom® x6000 Series (formerly Elkhart Lake) processors to meet the demands of critical real-time computing in applications spanning the retail, transport, industrial automation, and medical sectors.

To support the next generation of IoT solutions, IBASE’s IB836 comes with three processor variants with a TDP range of 6W to 12W, a maximum of 3.0GHz burst frequency, up to 50% improved CPU performance and up to two times enhancement in graphics from previous generation. The SBC has two DDR4 memory slots with a 32GB capacity and in-band error-correcting code (IBECC) functionality that corrects single-bit memory errors in standard, non-ECC memory. Three independent displays can be driven with up to 4Kp60 resolutions via two DisplayPort (DP & Type C) and one eDP or LVDS output.

Rich I/O connectivity and expansion capabilities on the IB836 allow connection to numerous peripherals and include 2x USB 2.0, 4x USB 3.1, 2x SATA III, 1x M.2 and 1x mPCIe interface, as well as three Gigabit Ethernet ports for high-speed connections to wired devices. Measuring 102mm by 147mm, the board operates on a 9V~36V wide range power input and extended temperature range of -40 to +85°C.

IB836 is currently available with Intel Atom x6425E, x6413E or x6211E processor. Other features comprise TPM to enable applications to run securely and EuP/ErP power saving and intelligent scheduler to improve environmental performance.

CPUIntel® Atom® QC x6425E (1.8GHz/3.0GHz, 1.5MB cache, 12W TDP)
Intel® Atom® QC x6413E (1.5GHz/3.0GHz, 1.5MB cache, 9W TDP)
Intel® Atom® DC x6211E (1.2GHz/3.0GHz, 1.5MB cache, 6W TDP)
PCHIntegrated in Intel® SoC
Memory TypesDDR4-3200 SO-DIMM, Max. 32GB, supports IBECC
BIOSAMI
Watchdog Timer256 levels
H/W MonitorYes
Storage Device Interface1x mSATA (Share with SATA port)
Mini Type Slots1x M.2 (E-Key, type:2230)
Graphics ControllerIntel® SoC integrated Gen11 Graphics
Video Output2x DisplayPort (DP connector & Type-C) eDP or 24-bit dual-channel LVDS
Ethernet3x Intel® I210IT PCI-E Gigabit LAN
I/O ChipFintek F81964D-I
Serial Port1x RS232/422/485 (Jumper-less selection)
3x RS232
USB 2.02x USB2.0 (Pin-header)
USB 3.0/ 3.13x USB 3.1 (Type-A)
1x USB (Type-C)
Serial ATA2x SATA III
AudioBuilt-in HD with Realtek ALC269 w/ class-D amplifier
TPMTPM (2.0)
OthersDigital I/O (4-in/4-out), EuP/ErP, +9V~+36V DC-in
Dimensions (L X W)102mm x 147mm (4″ x 5.8″)
Power ConsumptionTBD
Operating Temperature-40°C~85°C (-40°F ~185°F)
Storage Temperature-40°C~90°C (-40°F ~194°F)
Relative Humidity90% ([email protected]°C)
IB836F-6425EIntel® Atom® x6425E, 3.5-inch Disk Size SBC w/ 3x GbE LAN, 2x DisplayPort (DP connector& Type-C), LVDS,mSATA, M.2, EuP/ErP, 9V~36V DC-in, wide temp support
IB836FE-6425EIntel® Atom® x6425E, 3.5-inch Disk Size SBC w/ 3x GbE LAN, 2x DisplayPort (DP connector& Type-C), eDP,mSATA, M.2, EuP/ErP, 9V~36V DC-in, wide temp support
IB836F-6413EIntel® Atom® x6413E, 3.5-inch Disk Size SBC w/ 3x GbE LAN, 2x DisplayPort (DP connector& Type-C), LVDS(24-bit LVDS Dual-channel), mSATA, M.2, EuP/ErP,9V~36V DC-in, wide temp support
IB836FE-6413EIntel® Atom® x6413E, 3.5-inch Disk Size SBC w/ 3x GbE LAN, 2x DisplayPort (DP connector& Type-C), eDP,mSATA, M.2, EuP/ErP, 9V~36V DC-in, wide temp support
IB836F-6211EIntel® Atom® x6211E, 3.5-inch Disk Size SBC w/ 3x GbE LAN, 2x DisplayPort (DP connector& Type-C), LVDS,mSATA, M.2, EuP/ErP, 9V~36V DC-in, wide temp support
IB836FE-6211EIntel® Atom® x6211E, 3.5-inch Disk Size SBC w/ 3x GbE LAN, 2x DisplayPort (DP connector& Type-C), eDP,mSATA, M.2, EuP/ErP, 9V~36V DC-in, wide temp support
HSIB836-X-AHeatsink for IB836
HSIB836-X-1Heat spreader for IB836
IB76A-2Cable kit w/ USB, COM, Power, SATA + Power
