Jetson PC EX731

Embedded Vision Solutions based on NVIDIA Jetson TX1/TX2

  • 1x HDMI-out (TX2 supports 2x HDMI-out)
  • 1x USB3.1 Gen1 and 1x Gigabit Ethernet RJ-45
  • Stackable design to support EX731 daughter boards family for extra I/O
  • Compact PCB dimension: Pico-ITX, 100 mm x 72mm (3.9” x 2.8”)
  • Fully support NVIDIA® Jetson™ TX1 and TX2

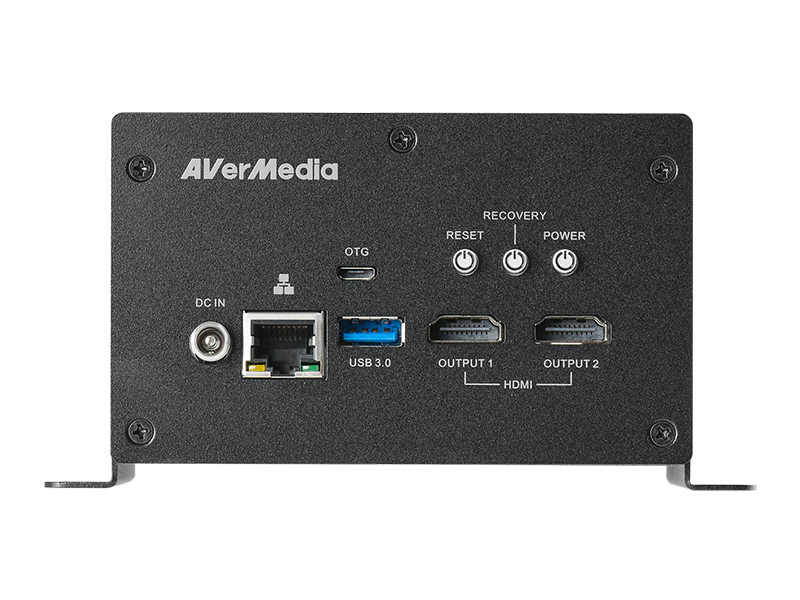

EX731 is a sophisticated embedded system designed for NVIDIA Jetson TX1 and TX2. It can be composed of EX731-AA carrier board, Jetson TX1 or TX2 module, and a fan module. The dimensions of EX731 are 114.8mm x 74.3mm x 75.8mm.

It supports various advanced I/O ports, such as 2xHDMI output and 1xUSB 3.0 for Tegra X1/X2, and 1xRJ45 for Giga Ethernet, to provide better platform for the users to develop their application.

EX731 can work with a daughter board, EX731-N1, which can support two 4Kp30 M.2 video capture cards from AVerMedia for rich video data analysis. EX731 is also designed as an application ready platform to provide a total solution for multiple applications to improve the performance and flexibility for time to market.

With EX731, software developers not only can design their deep learning software on this platform but also can market their software and the platform as a complete solution. This can greatly help to simplify the effort and processes of the system integration to launch their deep learning solution into the market.

With more than 25-years of being passionate in the video and audio technology and innovation, now AVerMedia extends the footprints and offerings to the new era of GPGPU, designed with NVIDIA Jetson TX1/TX2, to bring deep learning features into the embedded applications.

Taking the advantages of up to 1 TFLOP of supercomputing performance, less than 15 watts of low power consumption, CUDA programming of parallel computing, cuDNN GPU-accelerated library for deep neural networks, and AVerMedia video and audio technology of capturing, post processing, and streaming. Embedded Tegra Solutions developed by AVerMedia are the best design for video-enabled edge computing applications of in-vehicle, robotics, UAV/UGV, surveillance, inspection and measurement, IVA, and medical imaging.

Embedded Tegra Solutions

AVerMedia offers 5 categories of Embedded Tegra Solutions for deep learning application on the edge devices, with the support of HDMI video source and the direct technical support by developers.

  • Standard and customized TK1 modules and carrier boards
  • Standard and customized TX1/TX2 carrier boards
  • Standard and customized TK1 single boards
  • Standard and customized TK1 and TX1/TX2 application-ready systems
  • Software design service of Linux BSP, driver, OpenCV, VisionWorks, and cuDNN.

Benefit to Our Clients

  • With multiple offerings and direct technical support, we, AVerMedia, are able to help our clients succeed to resolve system compatibility issue, optimize system cost and performance, ensure project schedule, reduce R&D resource investment, and create product differentiation in their video and audio applications which utilize the embedded system with AVerMedia video capture cards, such as C353, CM313B, C351, and C039P.
  • AVerMedia TK1/TX2 carrier board (EX731-AA) is designed to install in the standard Pico-ITX chassis with power supply and AVerMedia video capture cards to build a complete embedded application-ready system. Once the design and verification of our clients’ application software are done, the software can be installed on this application-ready-system and shipped for the field test and deployment on the end customer site. It can significantly help our clients reduce the development cycle time of turning their innovative design into a marketable product.
  • Also, we, AVerMedia, are an accountable service provider of in-house product design, verification, and manufacturing, to support our clients to compensate their capacity and/or skill gaps, realize their innovative applications, and achieve the ultimate goals of time to market and time to volume.

AVerMedia Expertise and Advantage

  • Knowledge of global UHD/HD/SD/TV analog and digital video signals
  • Video and audio signal encode, decode, transcode, and streaming
  • Capability to resolve system compatibility issue and provide solution among system hardware, BSP, driver, Linux OS, OpenCV, VisionWorks, cuDNN and application software
  • Support of battery power and HDMI/VGA/3G-SDI/Composite video sources
  • Integrated skill sets of product design with driver, SDK, AP, FPGA, F/W, schematics, PCB, power, ID/ME, tooling, molding, packaging, EMC/EMI, thermal, reliability, safety, and usability, plus project management, product verification, manufacturing, and global logistics.
  • Product customization and direct technical support by our developers

AVerMedia Team

  • We are a group of passionate and integrated professionals dedicated in video and audio technology and innovation.
  • We provide state-of-the-art standard products and customization design service to help our clients succeed in their embedded applications.
  • We operate highly efficiently and effectively in fulfilling our clients’ needs on technical supports and joint developments.

Warranty and Longevity

  • Product Warranty: Standard 1-year warranty and up to 5-years optional extension
  • Product Longevity: Standard 5-years product life cycle and up to 10-years optional extension
Support ModuleNVIDIA® Jetson™ TX1/TX2
Display Interface1x HDMI-out Type A, 4096 x 2160 p60 (TX2 support 2x HDMI-out)
Storage1x micro-SD card
LAN Port1x RJ-45 for Gigabit Ethernet
USB3.1 Gen11x USB3.1 Gen1 Type A
USB2.01x USB OTG for Recovery
I/O Extension1x 3.3V UART, 1x SPI, 1x I2S, 1x I2C, 7x GPIOs
Power Supply+12VDC/5A
Operating Temperature-10°C ~ +70°C (with fan module)
Operating Humidity10% ~ 90% (RH)
Storage Temperature-10°C ~ +85°C
DimensionPico-ITX , 100mm x 72mm (3.9“ x 2.8“)
ButtonPower, Reset, and Recovery



Next Version:

System MonitoringRTC battery capacity, and fan speed

All specifications are subject to change without prior notice.



TX1 and TX2 Comparison

 Jetson TX1  Jetson TX2
GPU  256-core Maxwell  256-core Pascal
CPU  Quad Core ARM Cortex A57Dual Core NVIDIA Denver 2.0 +
Quad Core ARM Cortex A57
Memory  4GB 64-bit LPDDR4, 25.6 GB/s8GB 128-bit LPDDR4, 58.4 GB/s
Storage  16 GB e.MMC32GB e.MMC
Wi-Fi  802.11 b/g/n/ac 2×2 MIMO802.11 b/g/n/ac 2×2 MIMO
Ethernet  Gigabit EthernetGigabit Ethernet
HDMI 2.0 a/b  x1x2
Video Encode  Up to 2160p, 30 fpsUp to 2160p, 60 fps
Video Decode  Up to 2160p, 60 fpsUp to 2160p, 60 fps
Mechanical  50mm x 87mm, 400-pin board to board connector50mm x 87mm, 400-pin board to board connector
