Key Applications
* The ideal camera ranges were output of fully populated enclosure by pure recording under 30FPS, H.264, 5Mbps Bitrate and 1080P resolution.
Features:
Specifications:
Processor: Intel Core i7-9700E (8C/8T) 12M Cache, 2.6GHz
Ram: 1x 16GB DDR4-3200MHz ECC (support up to 4x DIMM slots)
GPU: Integrated Intel® UHD Graphics 630
Video Output: 1x VGA, 1x DVI-I, 2x DP
OS Boot Drive: 240GB Enterprise SATA M.2 SSD
OS: MS Windows 11 Professional (or Windows Server 2019 or 2022, upon request)
Networking: 2x Gigabit LAN Ports, 1x IPMI LAN Port
Power Supply: 350W 80+ Platinum Level Certified w/ PFC (single / non-redundant)
Dimensions: 437mm(L) x 43mm(H) x 483mm(D)
Form Factor: 1U Rack Mount
Warranty: 3 Years Return To Base

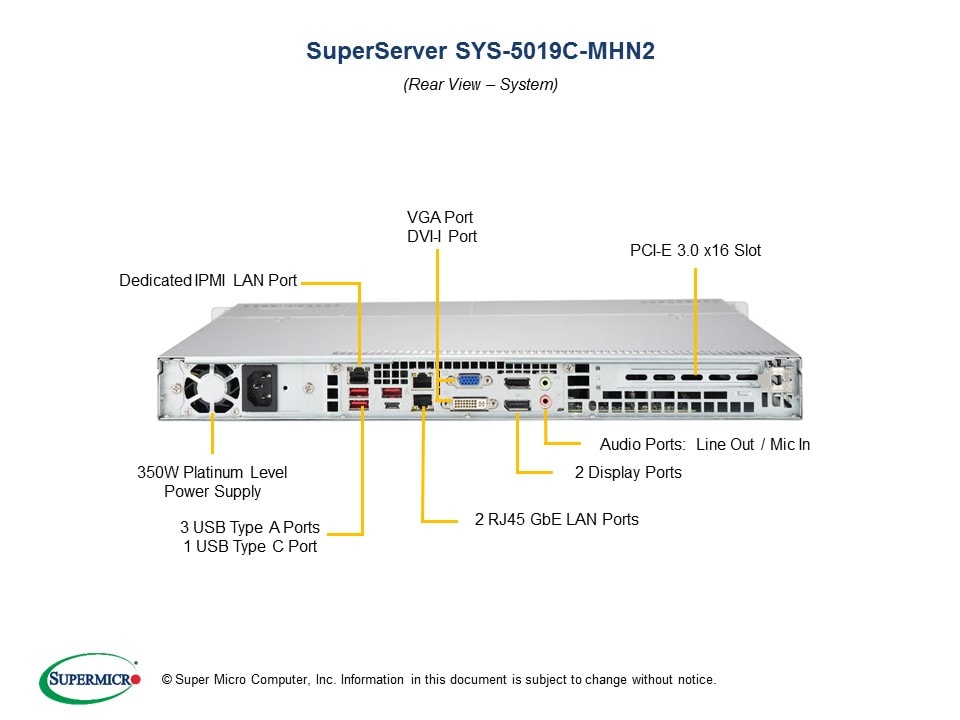

I/O ports:
SATA: 5x SATA3 (6Gbps) ports; RAID 0, 1, 5, 10
LAN: 2x RJ45 Gigabit Ethernet LAN ports, 1x RJ45 Dedicated IPMI LAN port
USB: 2x USB 3.1 ports (rear), 2x USB 2.0 ports (rear)
Video: VGA D-Sub Connector port, 1 DVI – I port, 2 DP (DisplayPort) ports 3 independent displays
Serial Port / Header: 1x COM port (header)
TPM: 1x TPM 2.0 Header
Front Panel
Buttons: Power On/Off button, System Reset button
LEDs: Power LED, Hard drive activity LED, Network activity LEDs, System Information LED
Expansion Slots
PCI-Express: 1x PCI-E 3.0 x16 slot
M.2 Interface: 1x SATA/PCI-E 3.0 x4 and 1x PCI-E 3.0 x4, M.2 Form Factor: 2280/22110, M.2 Key: M-Key
Drive Bays: 4x Hot-swap SATA 3.5″ drive bays **
System Cooling: 5x 40x28mm PWM fans
Dimensions and Weight
Operating Environment / Compliance
