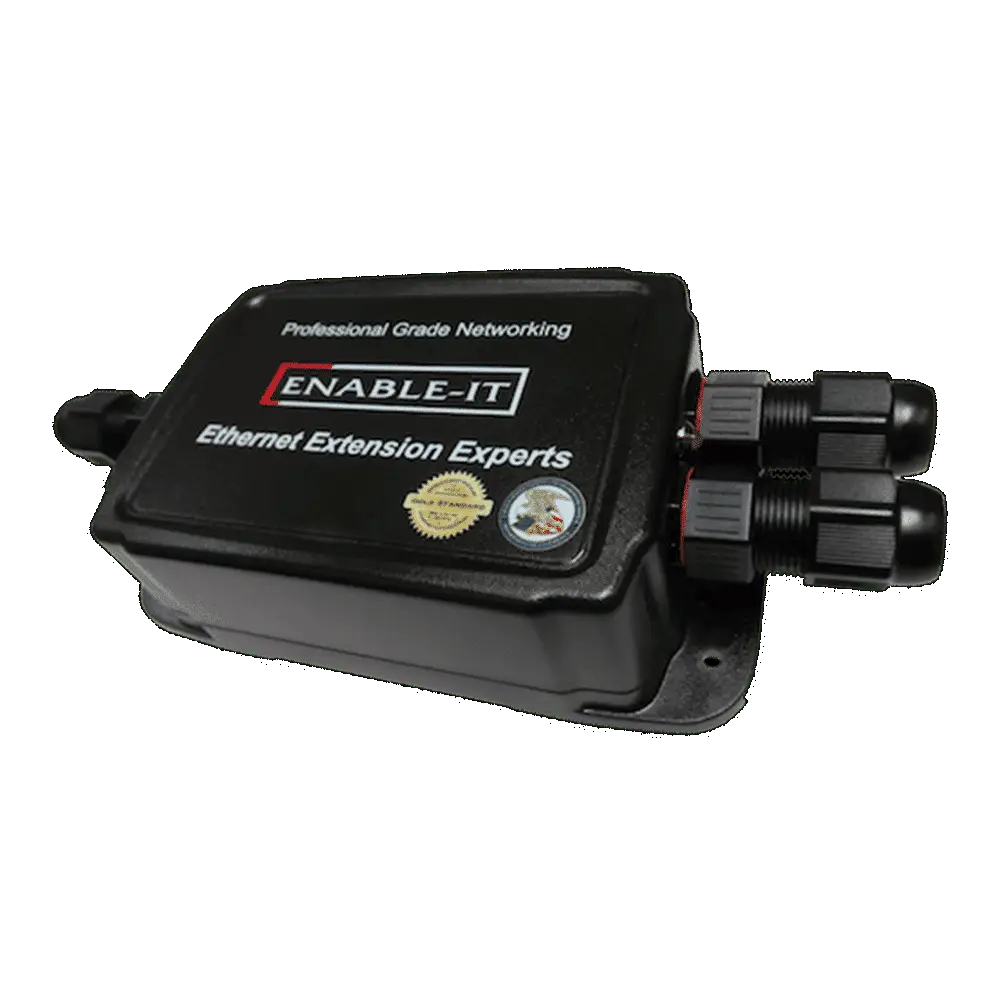

860W PRO Outdoor Gigabit Ethernet Extender

The Enable-IT™ 860W PRO IP68 rated Outdoor Ethernet Extender delivers Gigabit Ethernet data up to TWELVE times further than the IEEE 802.3 specifications for Ethernet LAN limits of just 328 feet and is the highest-throughput encrypted and Secure Ethernet Extender on the planet bar none!

This is trusted Business Reliable Professional Grade Ethernet Extension without the high cost of fiber or unsecured wireless. Why risk your business to lower quality imported equipment? The value of your network communications should be a protected investment. Beware of Cheap Chinese “so called Business Use” (not even suitable US Home use) gear that is banned in the US due to proven hidden spyware.

The 860W PRO IP68 rated Outdoor Ethernet Extender can extend your Ethernet all the way up to 4,100ft / 1,250m, effectively saving you thousands in labor, administration, and security. What’s more, it achieves these distances at a throughput no other Ethernet extension solution can match (260Mbps) and at a cost, quality and reliability our “Made in China” competitors cannot match.

Made in the USA with quality and pride – the only manufacturer to do so in our industry we started.

The American-made 860W PRO IP68 rated Outdoor Ethernet Extenders are also very easy to install and ready to work in most any environment. The 860W PRO IP68 rated Outdoor Ethernet Extender uses industry LAN standard RJ-45 (8-pin) connectors.

Quad port Gigabit LAN switches built into each end coupled with industrial strength components to survive harsh temperature extremes delivers twice as much value and capabilities no other competitor can touch. IP68 Casing comes with 2 output ports – optional 3rd or 4th port can be added on request before ordering.

  • Extended Gigabit Ethernet up to 4,100ft on existing or new Telephone wiring / Category rated wiring. Max distance 1.13 miles = 6,000ft (1.83km) encrypted and secure.
  • Can be daisy chained to extend infinitely in linear or tree topology.
  • Rapid LAN style installation RJ45 jacks – no programming required.
  • Ruggedized Professional Business Grade mountable casing for harsh environments.
  • Network Equipment independence – Transparent to protocols, applications and MAC addresses.
  • Longest warranty protection included exceeding any knockoff competitors.
  • Dual Gigabit LAN ports on each end to eliminate the need for LAN switches.

This kit includes the following:

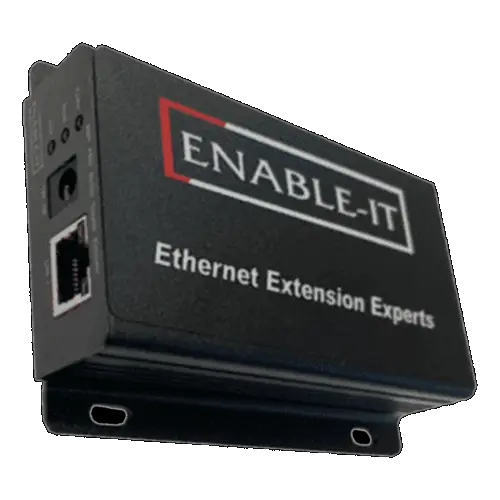

(1) 860W PRO CO Unit 4-port LAN
(1) 860W PRO CPE Unit 4-port LAN
(3) W Case Cable Seal Connectors
(1) W Case Cable Seal Cap
(1) 12V – 1A DC Country Specific (120-260V AC) Power Adapter for 860 PRO CO unit
(1) Enable-IT 360 61W – 56V PoE Injector that power up both units. – No PoE output on end of run.
(1) Country specific power cord for 360
(2) Black Ethernet patch cords
(1) Enable-IT 860W PRO QuickStart User Guide

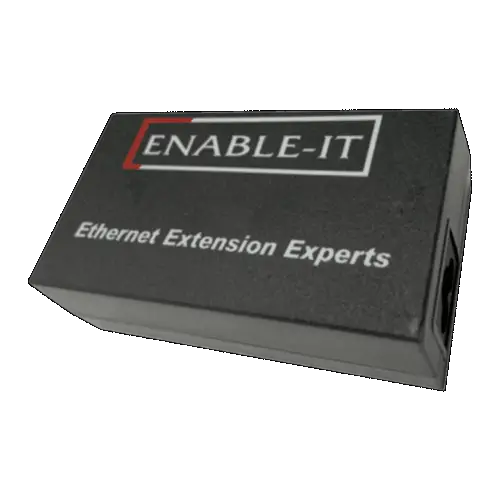

Enable-IT 360 Gigabit 56V 61W PoE Injector included.

Data Rate

1,000Mbps full-duplex Ethernet Data
260Mbps Interconnect throughput
Ethernet LAN Protocol Independent
Ethernet LAN MTU 1500
IP VLAN passthough


Ethernet: (4) LAN RJ-45 Standard 10/100/1000 Base-TX autosensing ports

860 PRO CO Dimensions

Height 1.4″ (35mm) Depth 3.4″ (86mm) Width 4.4″ (111mm)

860W PRO CPE Dimensions

Height 2.0″ (51mm) Depth 11.0″ (280mm) Width 4.5″ (114mm)


Operational Temperature: -49°F to 168°F (-45° to 76°C)
Humidity: 5% to 95%, non-condensing


Ruggedized wallmount IP68 rated Waterproof Outdoor casing Optimized for heat extraction and isolation without fans.
