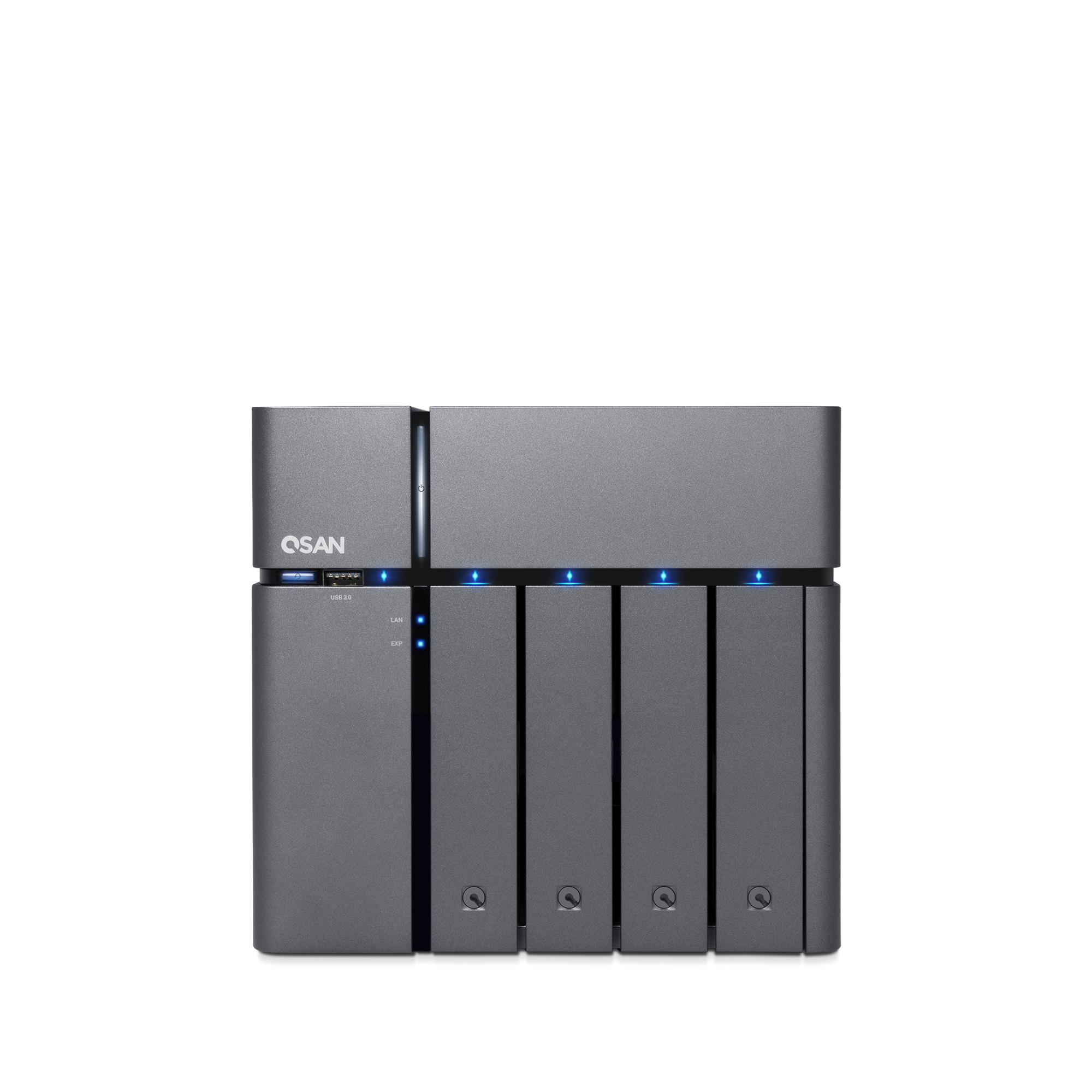

XCubeNAS
CPU
Intel® Celeron® 2.9GHz Dual-Core Processor
RAM
8GB DDR4 SO-DIMM (Max 32GB)
Hybrid Storage
Innovative N+1 Drive Tray Design
Network
4 x 1GbE Network Interface
Web Finder
No need to install any applications, you can easily find your XCubeNAS.
XFinder
XFinder is a desktop utility that searches for QSAN XCubeNAS devices in the local area network.
WORM
WORM technology is designed to prevent intentional modification and help your data away from ransomware attacks.
XReplicator
The most reliable and efficient PC backup solution on XCubeNAS.
XMirror
You can regularly synchronize a volume or the contents of a folder between multiple XCubeNAS devices.
Rsync
Data copies can be distributed to your trusted storage locations through real-time remote backup.
Snapshot Replication
Transporting snapshots to multiple XCubeNAS to help administrators utilize the storage capacity and secure your data.
File Retention
Automatically file management increases the efficiency of the storage capacity.
Boost your performance via SSD cache
Hidden Heat Dissipation
Smart Fan Control
Tool-less Installation
Simple & Intuitive Use
Magnetic Lock Key
1. Power Button
2. USB 3.0 Port
3. USB Copy Button
4. LAN Status
5. Expansion Unit Status
6. HDD and SSD Status
7. Service Door

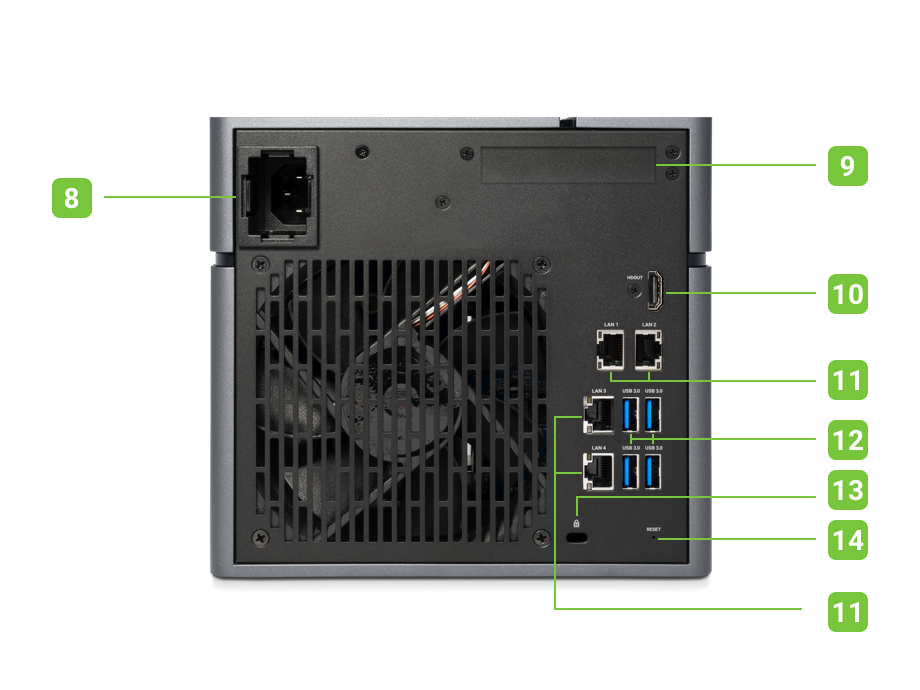

8. Power Port
9. Additional PCIe Slot for Expansion (Gen3 x 8)
10. HDMI Port
11. Gigabit LAN Port
12. USB 3.0 Port
13. Kensington Lock
14. Reset to Factory Default Button
| Architecture | All-in-one |
| Storage OS | QSM 3 |
| CPU | |
|---|---|
| Processor | Intel® Celeron® |
| CPU Architecture | 64-bit |
| CPU Frequency | Dual-Core 2.9GHz |
| Memory | |
| System Flash | 8GB USB DOM |
| Memory Module Pre-installed | 8GB DDR4 SO-DIMM |
| Total Memory Slots | 2 |
| Memory Expandable up to | 32 GB |
| Notes | – |
| Storage | |
| Drive Bays |
3.5″ Slot x 4 2.5″ Slot x 1 |
| Maximum Drive Bays with Expansion Unit | – |
| Compatible Drive Type |
3.5″ SATA HDD 2.5″ SATA HDD 2.5″ SATA SSD |
| Drive Interface |
SATA 6Gb/s |
| Maximum Internal Raw Capacity | 68TB |
| Maximum Raw Capacity with Expansion Units | – |
| Hot Swappable Drive | ✓ |
| Notes |
|
| External Port | |
| USB 2.0 Port | – |
| USB 3.0 Port | 5 (Front: 1, Rear: 4) |
| HDMI Port | 1 |
| Others | – |
| Notes | – |
| Connectivity Port | |
| 1GbE RJ45 LAN Port | 4 (Onboard) |
| 10GbE RJ45 LAN Port | 2 (Option: THBE10R2) |
| 10GbE SFP+ LAN Port | 2 (Option: XN-E1002) |
| Thunderbolt 3 | 2 (Option: XN-TB302) |
| 16Gb SFP+ Fibre Channel | – |
| Notes |
For more information, please refer to accessory book Please refer to the section below for expansion slot specification |
| Expansion Port | |
| 12Gb/s SAS Wide Port | – |
| Notes | – |
| PCIe Expansion | |
| Gen3x8 Slot | 1 |
| Gen3x4 Slot | – |
| Notes | For more information, please refer to hardware manual |
| Host Card Expansion | |
| Gen3x8 Slot | – |
| Gen2x4 Slot | – |
| Notes | – |
| Appearance | |
| Dimension (H x W x D) (mm) | 177 x 190 x 235 |
| Chassis Form Factor | Tower 4+1 Bay |
| Net Weight (kg) | 3.6 |
| Gross Weight (kg) | 4 |
| Notes | – |
| Memory Protection | |
| Cache-to-Flash Module | – |
| Battery Backup Module + Flash Module | – |
| Notes | – |
| Others | |
| System Fan | 120mm x 120mm x 1 pcs |
| Replaceable System Fan | – |
| Power Recovery | ✓ |
| Scheduled Power On/Off | ✓ |
| Wake on LAN/WAN | ✓ |
| Power Supply Unit / Adapter | FLEX ATX 200W |
| Redundant Power Supply | – |
| AC Input Power Voltage | 100V-240V |
| Power Frequency | 50-60 Hz, Single Phase |
| Power Consumption | – |
| British Thermal Unit | – |
| LCM Support | ✓ |
| Notes | – |
| Environment Temperature | |
| Operating Temperature | 0 to 40°C |
| Storage Temperature | -10°C to 50°C |
| Operating Relative Humidity | 20% to 80% non-condensing |
| Non-operating Relative Humidity | 10% to 90% |
| Notes | – |
| Certification | |
| Certifications |
CE FCC BSMI VCCI RCM KCC SASO EAC |
| Notes | – |
| Warranty | |
| Standard Warranty | 2 years |
| Notes | – |
