Smart Choice for Inference System with AI
Artificial intelligence, AI, is changing our lives from the past to the future. It enables machine learning by using a variety of training models to simulate and infer the status or appearance of objects. For example, the inference system with the video analysis model can perform face and vehicle license plate analysis for safety and security purposes.
The TANK AIoT Dev. Kit features rich I/O and dual PCIe x8 signals to support add-ons like the acceleration cards (Mustang-F100-A10 & Mustang-V100-MX8) or the PoE (IPCIE-4POE) to enhance performance and function for various applications.
Vision analytics on the factory floor adds intelligence to factories design and process. Today’s technologies automate the collection, storage, retrieval, and decision making across multiple factories and factory sub-systems at the edge.
Efficient road tolling and parking reduces fraud related to non-payment, makes charging effective, and reduces required manpower to process. Vehicle license plate analysis can be deployed on highways for electronic toll collection, and can be implemented as a method of cataloguing the movement of traffic as well as provide enhanced security by establishing data on suspicious vehicles in a more efficient way.
Face analysis with AI has explosive growth in various domains. It not only infers human features like gender, age and facial expression, but also identifies identity, which can greatly reduce labor costs and provide services via big data in retail, finance and medicine.
Integrate AI into IoT applications. It’s not that difficult

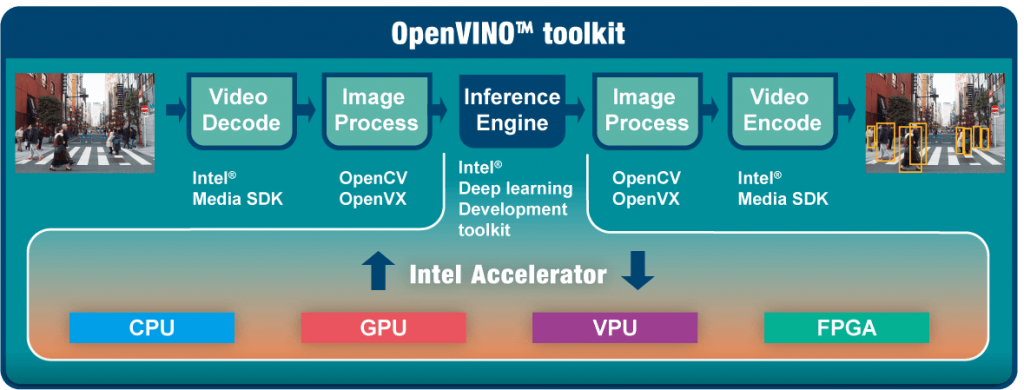

Open the door to faster deployments of inference systems with the TANK AIoT Dev. Kit via the Intel® Distribution of OpenVINO™ toolkit & Intel® Media SDK
Intel® Distribution of OpenVINO™ toolkit is based on convolutional neural networks (CNN), the toolkit extends workloads across multiple types of Intel® platforms and maximizes performance.
It can optimize pre-trained deep learning models such as Caffe, MXNET, and Tensorflow. The tool suite includes more than 20 pre-trained models, and supports 100+ public and custom models (includes Caffe*, MXNet, TensorFlow*, ONNX*, Kaldi*) for easier deployments across Intel® silicon products (CPU, GPU/Intel® Processor Graphics, FPGA, VPU).
| Model Name | TANK AIoT Dev. Kit |
|---|---|
| Chassis | |
| Color | Black C + Silver |
| Dimensions (WxDxH) | 121.5 x 255.2 x 205 mm (4.7″ x 10″ x 8″) |
| System Fan | Fan |
| Chassis Construction | Extruded aluminum alloys |
| Weight (Net/Gross) | 4.2 kg (9.26 lbs)/ 6.3 kg (13.89 lbs) |
| Motherboard | |
| CPU | Intel® Xeon® E3-1268LV5 2.4GHz (up to 3.4 GHz, Quad Core, TDP 35W) Intel® Core™ i7-7700T 2.9GHz (up to 3.8 GHz, Quad Core, TDP 35W) Intel® Core™ i5-7500T 2.7GHz (up to 3.3 GHz, Quad Core, TDP 35W) Intel® Core™ i7-6700TE 2.4 GHz (up to 3.4GHz, quad-core, TDP 35W) Intel® Core™ i5-6500TE 2.3 GHz (up to 3.3GHz, quad-core, TDP 35W) |
| Chipset | Intel® Q170/C236 with Xeon® E3 only |
| System Memory | 2 x 260-pin DDR4 SO-DIMM, 8 GB pre-installed (for i5/i5KBL/i7 sku) 16 GB pre-installed (for i7KBL sku) 32 GB pre-installed (for E3 sku) |
| Storage | |
| Hard Drive | 2 x 2.5’’ SATA 6Gb/s HDD/SSD bay, RAID 0/1 support (1x 2.5” 1TB HDD pre-installed) |
| I/O Interfaces | |
| USB 3.0 | 4 |
| USB 2.0 | 4 |
| Ethernet | 2 x RJ-45 LAN1: Intel® I219LM PCIe controller with Intel® vPro™ support LAN2 (iRIS): Intel® I210 PCIe controller |
| COM Port | 4 x RS-232 (2 x RJ-45, 2 x DB-9 w/2.5KV isolation protection) 2 x RS-232/422/485 (DB-9) |
| Digital I/O | 8-bit digital I/O, 4-bit input / 4-bit output |
| Display | 1 x VGA 1 x HDMI/DP 1 x iDP (optional) |
| Resolution | VGA: Up to 1920 x 1200@60Hz HDMI/DP: Up to 3840×2160@30Hz / 4096×2304@60Hz |
| Audio | 1 x Line-out, 1 x Mic-in |
| TPM | 1x Infineon TPM 2.0 Module |
| Expansions | |
| Backplane | 2 x PCIe x8 |
| PCIe Mini | 1 x Half-size PCIe Mini slot 1 x Full-size PCIe Mini slot (supports mSATA, colay with SATA) |
| Power | |
| Power Input | DC Jack: 9 V~36 V DC Terminal Block: 9 V~36 V DC |
| Power Consumption | 19 [email protected] A (Intel® Core™ i7-6700TE with 8 GB memory) |
| Internal Power output | 5V@3A or 12V@3A |
| Reliability | |
| Mounting | Wall mount |
| Operating Temperature | Xeon® E3 -20°C ~ 60°C with air flow (SSD), 10% ~ 95%, non-condensing i7-7700T -20°C ~ 35°C with air flow (SSD), 10% ~ 95%, non-condensing i5-7500T -20°C ~ 45°C with air flow (SSD), 10% ~ 95%, non-condensing i7-6700TE -20°C ~ 45°C with air flow (SSD), 10% ~ 95%, non-condensing i5-6500TE -20°C ~ 60°C with air flow (SSD), 10% ~ 95%, non-condensing |
| Operating Vibration | MIL-STD-810G 514.6 C-1 (with SSD) |
| Safety/EMC | CE/FCC/RoHS |
| OS | |
| Supported OS | Win10/Linux Ubuntu 16.04 LTS |
Warning: DO NOT install the add-on card into the TANK AIoT Dev. Kit before shipment. It is recommended to ship them with their original boxes to prevent the add-on card from being damaged.
| Part No. | Description |
|---|---|
| TANK-870AI-E3/32G/2A-R11 | Ruggedized embedded system with Intel® Xeon® E3-1268LV5 2.4GHz, (up to 3.4 GHz, Quad Core, TDP 35W), 32 GB DDR4 pre-installed memory, 2 x PCIe by 8 expansion, 2.5” 1TB HDD , TPM 2.0 , 9~36V DC, 150W AC DC power adaptor , RoHS |
| TANK-870AI-i7KBL/16G/2A-R11 | Ruggedized embedded system with Intel® Core™ i7-7700T 2.9GHz, (up to 3.8 GHz, Quad Core, TDP 35W), 16 GB DDR4 pre-installed memory, 2 x PCIe by 8 expansion, 2.5” 1TB HDD , TPM 2.0 , 9~36V DC, 150W AC DC power adaptor, RoHS |
| TANK-870AI-i5KBL/8G/2A-R11 | Ruggedized embedded system with Intel® Core™ i5-7500T 2.7GHz, (up to 3.3 GHz, Quad Core, TDP 35W), 8GB DDR4 pre-installed memory, 2 x PCIe by 8 expansion, 2.5” 1TB HDD , TPM 2.0 , 9~36V DC, 150W AC DC power adaptor , RoHS |
| TANK-870AI-i7/8G/2A-R11 | Ruggedized embedded system with Intel® Core™ i7-6700TE 2.4GHz, (up to 3.4 GHz, Quad Core, TDP 35W), 8GB DDR4 pre-installed memory, 2 x PCIe by 8 expansion, 2.5” 1TB HDD , TPM 2.0 , 9~36V DC, 150W AC DC power adaptor , RoHS |
| TANK-870AI-i5/8G/2A-R11 | Ruggedized embedded system with Intel® Core™ i5-6500TE 2.3GHz, (up to 3.3 GHz, Quad Core, TDP 35W), 8GB DDR4 pre-installed memory, 2 x PCIe by 8 expansion, 2.5” 1TB HDD , TPM 2.0 , 9~36V DC, 150W AC DC power adaptor , RoHS |
| Part No. | Description |
|---|---|
| Mustang-F100-A10-R10 | PCIe FPGA Highest Performance Accelerator Card with Arria 10 1150GX support DDR4 2400Hz 8GB, PCIe Gen3 x8 interface, RoHS |
| Mustang-V100-MX8-R10 | Computing Accelerator Card with 8 x Movidius Myriad X MA2485 VPU, PCIe Gen2 x4 interface, RoHS |
| Part No. | Description |
|---|---|
| IPCIE-4POE-R10 | PCI Express Power over ethernet card, 4-port 1000 Base(T), 802.3af compliant, RoHS |
| 72213100-5010000-000-RS | 2.5” HDD;WD;Caviar Blue;WD10SPZX;SATA3.0(6Gb/s, 600MB/s);1TB;128MB;5400 RPM;NoAssign;NoAssign;CCL;RoHS |
