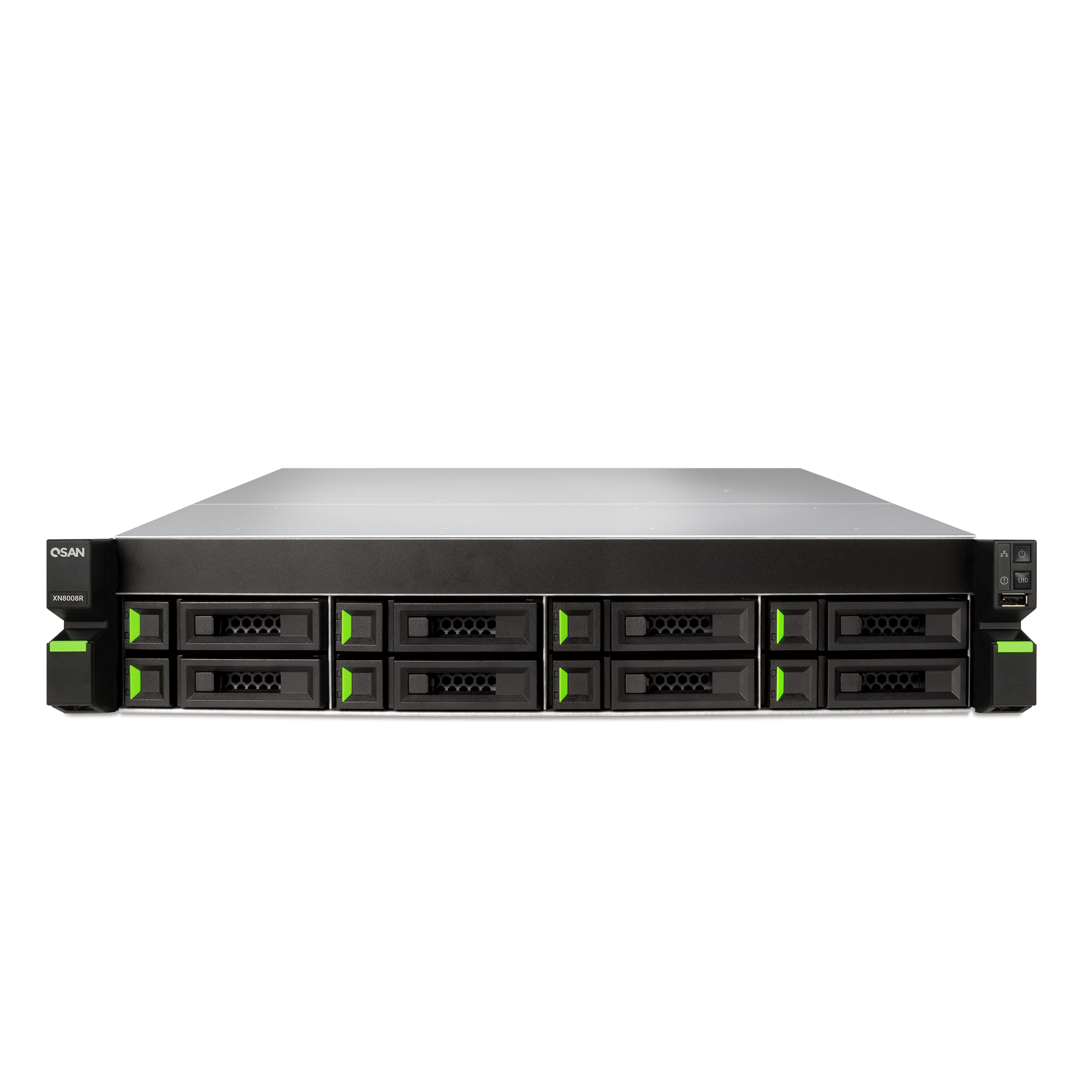

XCubeNAS
CPU
Intel® Core i3 3.9GHz Dual-Core Processor
RAM
8GB DDR4 U-DIMM (Max 64GB)
Scalability
Connect up to 8 Expansion Units
Flexible PCIe Expansion
Support 12Gb/s SAS Adapter Card
Easy File Access with Quick Connection
No need to install any applications, you can easily find your XCubeNAS.
XFinder
XFinder is a desktop utility that searches for QSAN XCubeNAS devices in the local area network.
SED
Support Self-encrypting drive technology.
Smart Snapshot Retention
More protection but less resources.
Rsync
Data copies can be distributed to your trusted storage locations through real-time remote backup.
AES256 Encryption
Pool Encryption fulfill Military regulations.
Quota
Effective management, optimize allocating.
Storage for Virtualization
Compatible with virtualization standard for VMware® vSphere™，Veeam™，Microsoft® Hyper-V.
1. Power Button/LED Indicator for Power Status
2. Unique Identifier (UID) Button/LED Indicator
3. System Access LED Indicator
4. System Status LED Indicator
5. USB 2.0 Port
6. Disk Drive Power LED Indicator
7. Disk Drive Status LED Indicator
8. Power Supply Unit PSU Indicator and Beep Off Button
9. Power Supply Unit Power Port
10. Unique Identifier (UID) LED Indicator
11. Mute Button
12. Reset Button
13. Console Port
14. Gigabit LAN Port
15. USB 3.0 Port
16. Additional PCIe Slot for Expansion (Gen3 x 8)
17. Additional PCIe Slot for Expansion (Gen3 x 4)
18. HDMI Port
| Architecture | Single Controller |
| Storage OS | QSM 3 |
| CPU | |
|---|---|
| Processor | Intel® Core™ i3 |
| CPU Architecture | 64-bit |
| CPU Frequency | Dual-Core 3.9GHz |
| Memory | |
| System Flash | 8GB USB DOM |
| Memory Module Pre-installed | 8GB DDR4 U-DIMM |
| Total Memory Slots | 4 |
| Memory Expandable up to | 64 GB |
| Notes | – |
| Storage | |
| Drive Bays | 3.5″ Slot x 8 |
| Maximum Drive Bays with Expansion Unit | 200 |
| Compatible Drive Type | 3.5″ SATA HDD 2.5″ SATA HDD 2.5″ SATA SSD |
| Drive Interface | SATA 6Gb/s |
| Maximum Internal Raw Capacity | 128TB |
| Maximum Raw Capacity with Expansion Units | 3200TB |
| Hot Swappable Drive | ✓ |
| Notes |
|
| External Port | |
| USB 2.0 Port | 1 (Front) |
| USB 3.0 Port | 4 (Rear) |
| HDMI Port | 1 |
| Others | Console Port x1 |
| Notes | – |
| Connectivity Port | |
| 1GbE RJ45 LAN Port | 4 (Onboard) |
| 10GbE RJ45 LAN Port | 2 (Option: THBE10R2) |
| 10GbE SFP+ LAN Port | 2 (Option: XN-E1002) |
| Thunderbolt 3 | 2 (Option: XN-TB302) |
| 16Gb SFP+ Fibre Channel | – |
| Notes | For more information, please refer to accessory book Please refer to the section below for expansion slot specification |
| Expansion Port | |
| 12Gb/s SAS Wide Port | 2 (Option: XN-S1202) |
| Notes | For more information, please refer to accessory book |
| PCIe Expansion | |
| Gen3x8 Slot | 1 |
| Gen3x4 Slot | 1 |
| Notes | For more information, please refer to hardware manual |
| Host Card Expansion | |
| Gen3x8 Slot | – |
| Gen2x4 Slot | – |
| Notes | – |
| Appearance | |
| Dimension (H x W x D) (mm) | 88.5 x 438 x 510 |
| Chassis Form Factor | 19″ Rackmount 2U 8 Bay |
| Net Weight (kg) | 12.7 |
| Gross Weight (kg) | 14.1 |
| Notes | – |
| Memory Protection | |
| Cache-to-Flash Module | – |
| Battery Backup Module + Flash Module | – |
| Notes | – |
| Others | |
| System Fan | 60mm x 60mm x 3 pcs |
| Replaceable System Fan | ✓ |
| Power Recovery | ✓ |
| Scheduled Power On/Off | ✓ |
| Wake on LAN/WAN | ✓ |
| Power Supply Unit / Adapter | 250W x2 |
| Redundant Power Supply | ✓ |
| AC Input Power Voltage | 100V-240V |
| Power Frequency | 50-60 Hz, Single Phase |
| Power Consumption | 231 W (Access) 111 W (HDD Hibernation) |
| British Thermal Unit | 788 BTU/hr (Access) 379 BTU/hr (HDD Hibernation) |
| LCM Support | ✓ |
| Notes | – |
| Environment Temperature | |
| Operating Temperature | 0 to 40°C |
| Storage Temperature | -10°C to 50°C |
| Operating Relative Humidity | 20% to 80% non-condensing |
| Non-operating Relative Humidity | 10% to 90% |
| Notes | – |
| Certification | |
| Certifications | CE FCC BSMI VCCI RCM |
| Notes | – |
| Warranty | |
| Standard Warranty | 3 years |
| Notes | – |
