AGS102 – IoT Gateway System with Intel® Atom® x7/x5, Pentium® & Celeron® Processors

Embedded Computing

AGS102
IoT Gateway System with Intel® Atom® x7/x5, Pentium® & Celeron® Processors

  • Intel® Atom® x7-E3950/x5-E3940/x5-E3930 & Pentium® N4200 / Celeron® N3350 Series Processors
  • GPIO 4-in & 4-out with isolation function
  • Over/Under/Reverse voltage protection
  • Wide-range operating temperature from -40°C to 70°C
  • 9V~36V DC wide-range power input
  • Supports DIN-rail mount & wall mount
  • 2x RS232/422/485 and 2x RS232 serial ports
  • Rugged and fanless design

The Intel® Apollo Lake-based AGS Series intelligent IoT gateway system designed for industrial control and factory automation applications can be used as an IoT gateway platform to connect devices and securely transfer data to clouds, or as a Machine-to-Machine (M2M) gateway, providing interconnection of wired or wireless devices to enhance workflow in various industrial environments.

The AGS100 can be powered by Intel® Atom® processor E3950/E3930 with extended operating temperature (-40°C to 70°C), Intel® Pentium® N4200, and Celeron® N3350 processors (-20°C to 60°C). It supports 4GB DDR3L-1866 DO-DIMM, a 64GB MLC industrial-grade mSATA SSD, dual display ports (DVI-I and DisplayPort), 4x USB 3.0, 2x GbE, 2x COM, a DC-in terminal block for 9V~36V input and over/under/reverse voltage protection.

The rugged aluminum and steel chassis of the AGS100 enhances heat dissipation and features easy expansion with a full-size Mini PCI-E socket, a 2230 M.2 E-Key socket for WLAN & BT, a 3042 M.2 B-Key socket for WWAN & SSD, an mSATA socket (Mini PCI-E), and a 2242 M.2 B-Key socket for mSATA SSD. Aside from a wide-operating temperature range, it supports shock and vibration tolerance standards (IEC 60068-2-64 / MIL-STD-810G), the durability needed to withstand harsh environments. Measuring 160mm (W) x 110mm (D) x 44mm (H), it comes with both DIN-rail and wall mounting kits.

The model AGS102 has additional two RS232 ports for COM3/COM4 and GPIO 4-in & 4-out multi-purpose interface for a variety of one- or two-wired devices for I/O, security and data storage purposes.

System MainboardIB801/ IB802T (F-1 Stepping)
CPU TypeIntel® Atom® x7-E3950/x5-E3930 & Pentium® N4200/ Celeron® N3350 Series processors
System SpeedUp to 2.5GHz
Memory1x 4GB DDR3L-1866 SO-DIMM, Max. 8GB
ConstructionAluminum & Steel
Chassis ColorSilver & Gray
Rear Panel External I/O1x DVI-I + 1x DisplayPort connector
4x USB 3.0 ports, 1x USB 2.0 port
2x RJ45 Gigabit Ethernet port
3x LED indicators (HDD, WLAN, WWAN)
1x power button with Green LED
(Sliver power button with Green LED for AGS102, Black
power button with Blue LED for AGS102T)
1x 3-pin DC-in terminal blo ck for 9V-36V
1x Antenna hole for WLAN module
AGS102T: 2x RS232/422/485 ports for COM#3/COM#4
AGS102: 2x RS232 ports for COM#3/COM#4
1x 4-in & 4-out GPIO with isolation

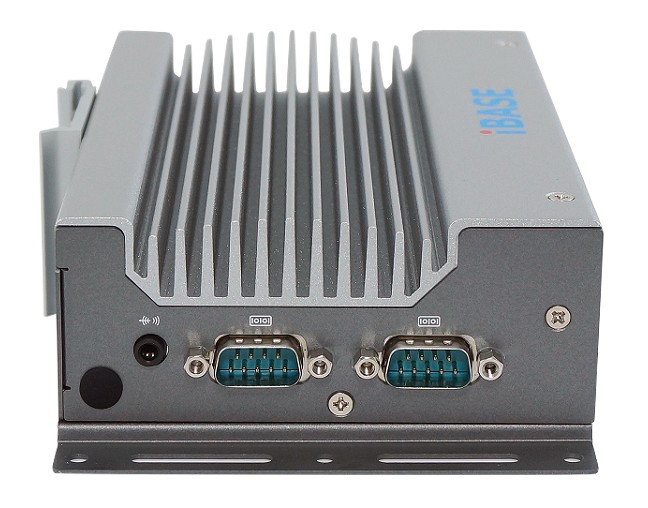

Left Panel External I/O2x RS232/422/485 ports for COM#1/COM#2
1x Antenna hole for WLAN module
1x Line-out
(AGS102 for 2W mono speaker, AGS102T for stereo output )
Right Panel External I/O1x SIM card slot
Expansion Slots1x Full size Mini PCI-E socket (USB 2.0 + PCI-E + SATA)
1x 2230 M.2 E-Key socket for WLAN & BT (USB 2.0 + PCI-E)
1x 3042 M.2 B-Key socket for WWAN & SSD (USB 2.0 + SATA)
Storage / M.21x mSATA socket (Mini-PCI-E)
1x 2242 M.2 B-Key socket for mSATA SSD
MountingDIN-rail mounting (DIN-rail mount kit included)
Desktop or wall mounting (wall mount kit included)
Weight1kg
Dimensions160mm (W) x 110mm (D) x 44mm (H)
6.3” (W) x 4.33” (D) x 1.73” (H)
Operating Temperature-40°C~70°C (-40°F~158°F) (For E-series CPU)
-20°C~60°C (-4°F~140°F) (For N-series CPU)
Storage Temperature-40°C ~ 85°C (-40°F~185°F)
Relative Humidity5~90% @ 45°C, (non-condensing)
VibrationOperatiing: 2.0 grms / 5~500Hz / random operation (with IEC 60068-2-64)
Non-Operating: 3.0 grms / 5~500Hz / random operation (with IEC 60068-2-64)
ShockOperating : 30G/11 ms Duration (with MIL-STD-810G)
Non-operating : 40G/11 ms Duration (with MIL-STD-810G)
CertificationCE / LVD / FCC Class B / CCC (AGS102 Only) / UL
AGS102-I50/ AGS102T-I50Fanless DIN-rail System supports TPM2.0 (AGS102T Series only) w/ Intel® Atom® Processor x7-E3950, 4x COM, 1x 4GB DDR3L industrial-grade memory, 1x 64GB MLC industrial-grade mSATA SSD, w/o power adaptor
AGS102-I40/ AGS102T-I40Fanless DIN-rail System supports TPM2.0 (AGS102T Series only) w/ Intel® Atom®Processor x5-E3940, 4x COM, 1x 4GB DDR3L industrial-grade memory, 1x 64GB MLC industrial-grade mSATA SSD, w/o power adaptor
AGS102-I30/ AGS102T-I30Fanless DIN-rail System supports TPM2.0 (AGS102T Series only) w/ Intel® Atom®Processor x5-E3930, 4x COM, 1x 4GB DDR3L industrial-grade memory, 1x 64GB MLC industrial-grade mSATA SSD, w/o power adaptor
AGS102-420/ AGS102T-420 (MOQ)Fanless DIN-rail System supports TPM2.0 (AGS102T Series only) w/ Intel® Pentium® Processor N4200, 4x COM, 1x 4GB DDR3L industrial-grade memory, 1x 64GB MLC industrial-grade mSATA SSD, w/o power adaptor
AGS102-335/ AGS102T-335Fanless DIN-rail System supports TPM2.0 (AGS102T Series only) w/ Intel® Celeron® Processor N3350, 4x COM, 1x 4GB DDR3L industrial-grade memory, 1x 64GB MLC industrial-grade mSATA SSD, w/o power adaptor
60W power adaptor (Optional)60W ([email protected]) power adaptor, bare wire type Compatible with IEC62368-1/EN62368-1
Optional AccessoriesWiFi/BT antenna kit, 4G/LTE antenna kit, GPS antenna kit
