ASB200-915 – Slim Type System for IBASE IB915 3.5” Disk-Size SBC

Embedded Computing

ASB200-915
Slim Type System for IBASE IB915 3.5” Disk-Size SBC

  • Fanless system with IBASE IB915 3.5″ Disk-Size SBC
  • Onboard 6th Gen Intel® Core™ U-series processor
  • iSMART- for auto-scheduler and power resume
  • 12V(-10%) ~ 24V(+10%) DC wide-range power input
  • Supports 1x Mini PCI-E (full-size)
  • Supports 1x 2.5” SATA HDD
  • 1x USB 3.1 port type-c, 4x USB 3.0 ports
  • Wall mount kit included

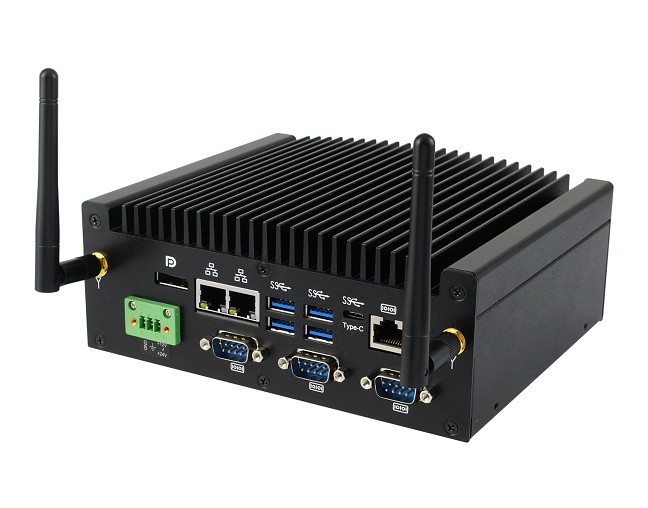

The ASB200-915 is a compact fanless system that uses the IBASE IB915-series 3.5-inch SBC and has 4GB DDR3L-1600 memory on board. It comes with a robust design and useful features that make it an ideal solution for control systems in factory automation, power plants, transportation and other applications in harsh environment conditions. The unit is provided with wall mount brackets and an optional VESA mount bracket, allowing it to be attached to a flat panel monitor. The ASB200-915 supports a 12V~24V DC wide-range power input terminal block on the rear of the system, as well as a -10°C~50°C wide-range operating temperature with the standard 64GB MLC SSD storage. Also located on the rear are four serial ports, one USB 3.1 port, four USB 3.0 ports, a DisplayPort and two Gigabit Ethernet connectors. Front I/Os consist of the power button, two USB 2.0, audio jacks, HDD and digital I/O.

There are three processors to choose from, including 6th Gen Intel® Core™ i7 6600U, i5 6300U and i3 6100U. All ASB200-915 systems are configured with iSMART power on/off scheduler and power resume functionality. There is also an optional 84W power adaptor is optional.

System MainboardIB915AF-6600 / IB915AF-6300 / IB915AF-6100
CPU TypeIntel® Core™ i7 6600U processor
Intel® Core™ i5 6300U processor
Intel® Core™ i3 6100U processor
System Speed2.6GHz / 2.4GHz / 2.3GHz
Memory2x 2GB DDR3L-1600 SO-DIMM Memory, Max.16GB
ConstructionAluminum & Steel
Chassis ColorBlack
Front Panel External I/O1x Power button
2x USB2.0
1x Audio Jack for Line-out / Line-in / MIC-in
1x HDD LED
1x Digital I/O (4-in / 4-out)
Rear Panel External I/O1x COM thru RJ45 connector (RS-232/422/485)
3x COM (RS232)
4x USB 3.0 ports
1x USB 3.1 port type-C
1x DisplayPort
2x RJ-45 GbE connector
1x 3-pin DC-in terminal block for 12V(-10%)~24V(+10%)
Storage / M.21x 2.5″ HDD or SSD
MountingDesktop or wall mount (wall mount kit included)
VESA mount (option)
Dimensions180mm(W) x 150mm(D) x 66mm(H)
7.09” (W) x 5.91” (D) x 2.6” (H)
Operating Temperature0°C~40°C (32°F~104°F) (With HDD)
-10°C~50°C (14°F~122°F) (With SSD)
Storage Temperature-20°C ~ 80°C (-4°F~176°F)
Relative Humidity5~90% @ 45°C, (non-condensing)
VibrationOperating : 0.25Grms / 5~500Hz
Non-operating : 1Grms / 5~500Hz
ShockOperating : 20G / 11ms
Non-operating : 40G / 11ms
CertificationCE / LVD / FCC Class B
ASB200-915-i7Fanless chassis with IB915AF-6600, Intel® i7-6600U 2.6GHz CPU, 4x COM, 2x 2GB DDR3L memory, 1x 2.5” 64GB MLC SSD, support iAMT11.0 (w/o 84W power adaptor and VESA mount bracket)
ASB200-915-i5Fanless chassis with IB915AF-6300, Intel® i5-6300U 2.4GHz CPU, 4x COM, 2x 2GB DDR3L memory, 1x 2.5” 64GB MLC SSD, support iAMT11.0 (w/o 84W power adaptor and VESA mount bracket)
ASB200-915-i3Fanless chassis with IB915F-6100, Intel® i3-6100U 2.3GHz CPU, 4x COM, 2x 2GB DDR3L memory, 1x 2.5” 64GB MLC SSD (w/o 84W power adaptor and VESA mount bracket)
ASB200-915-i7-DCFanless chassis with IB915AF-6600, Intel® i7-6600U 2.6GHz CPU, 4x COM, 2x 2GB DDR3L memory, 1x 2.5” 64GB MLC SSD, 1x 84W power adaptor, support iAMT11.0 (w/o VESA mount bracket)
ASB200-915-i5-DCFanless chassis with IB915AF-6300, Intel® i5-6300U 2.4GHz CPU, 4x COM, 2x 2GB DDR3L memory, 1x 2.5” 64GB MLC SSD, 1x 84W power adaptor, support iAMT11.0 (w/o VESA mount bracket)
ASB200-915-i3-DCFanless chassis with IB915F-6100, Intel® i3-6100U 2.3GHz CPU, 4x COM, 2x 2GB DDR3L memory, 1x 2.5” 64GB MLC SSD, 1x 84W power adaptor (w/o VESA mount bracket)
60W power adaptor (optional)60W ([email protected]) power adaptor (bare wire type)
