The FLEX series of adapters and extenders are designed to extend PoE far beyond standard Ethernet reach. When used with the FLEX24 Switch or the FLEX-Base Extender, the FLEX adapters can deliver 10/100Mbps (symmetrical, full duplex) and PoE (up to 50W) over 1- (needs local power), 2-, or 4-pair UTP/STP with up to 2,000ft (610m) reach. This helps eliminate the costs and disruptions associated with IDF closet requirements. There are three adapter options that provide deployment flexibility:
FLEX-LINK | FLEX-C | FLEX4 | |
---|---|---|---|
Power |
|
|
|
Casing | Metal | Plastic | Metal |
Single Pair Supported | Yes (need local power) | No | Yes (needs Local Power) |
EN 50121-4 Certification | Yes (Approved to operate in a Railway/Subway environment) | No | Yes (Approved to operate in a Railway/Subway environment) |
FLEX Adapter Applications
10/100Mbps (full duplex, symmetrical) and PoE++ over multi-pair UTP/STP with 2,000ft (610M) reach
Features:
Bandwidth Availability for FLEX Extender Kit (FLEX-Base, FLEX-Link, 60W, 55V power supply)
4-Pair UTP/STP | 100Mbps full duplex, symmetrical to 2,000ft (610m) |
2-Pair UTP/STP | 100Mbps full duplex, symmetrical to 1,000ft (305m), 10Mbps full duplex, symmetrical from 1,000ft (305m) to 2,000ft (610m) |
1-Pair UTP/STP | 10Mbps full duplex, symmetrical to 2,000ft (610m) – Only with the FLEX-Link locally-powered |
Part Number | NV-FLXLK |
Dimensions | 8.8cm x 5.5cm x 2.5cm (LxWxD); 3.46” x 2.16” x 0.98” (LxWxH) |
Weight | 114 g (4 oz.) |
Interface: Network Infrastructure side (FLEX side) | 1 RJ45 port: UTP/STP cable (2-pair or 4-pair) |
Interface: for IP End Device (IEEE side) | 1 RJ45 port; endpoint device must be IEEE 802.3 af/at compliant |
Power Supply | PoE from the FLEX24 switch or external power supply; maximum 50W (over 4 pairs) or 30W (over 2 pairs) |
DC IN (Barrel Connector) | Optional (sold separately) 48V – 56VDC via an external AC/DC Power Adapter (IEC Class II isolated only) NOTE 1: Local power supply used must have its output isolated from Earth potential. NOTE 2: If voltage of local power supply is lower than the voltage provided from the PoE switch, then power on the PoE switch should be turned off. |
Power Consumption | 1.5W |
Operating Temperature | -40ºC to 70ºC (Tests conducted against international safety standard at maximum ambient temperatures of 60ºC at 30W and 50ºC at 50W) |
Mean Time Before Failure (MTBF) | 20+ years |
Humidity | 10% to 95% (non-condensing) at 35° C |
Part Number | NV-FLXLK-C |
Dimensions | 8.1cm x 3.8cm x 2.3cm (LxWxD); 3.19” x 1.50” x 0.90” (LxWxH) |
Weight | 44 g (1.5 oz.) |
Interface: Network Infrastructure side (FLEX side) | 1 RJ45 port: UTP/STP cable (2-pair or 4-pair) |
Interface: for IP End Device (IEEE side) | RJ45 port; device must be IEEE 802.3 af/at compliant and it must be plugged in while PoE negotiation takes place between the switch and device. If power is directly sent from the FLEX24 Switch (no negotiations) or FLEX-Base, then since line will be powered, IEEE 802.3 af/at non-compliant devices may be damaged. |
Power Supply | PoE from the FLEX24 switch or local power from FLEX-Base, maximum 30W (over 2-pairs) |
Power Consumption | 1.3W |
Operating Temperature | -40ºC to 70ºC (Tests conducted against international safety standard at maximum ambient temperatures of 60ºC at 15W and 50ºC at 30W) |
Mean Time Before Failure (MTBF) | 20+ years |
Humidity | 10% to 95% (non-condensing) at 35° C |
Part Number | NV-FLX-04 |
Dimensions | 9.8cm x 9.6cm x 2.5cm (LxWxH); 3.86” x 3.78” x 0.98” (LxWxH) |
Weight | 214 g (7.6 oz.) |
Interface: Network Infrastructure side (FLEX side) | 1 RJ45 port: UTP /STP cable (2-pair or 4-pair) |
Interface: for IP End Device (IEEE side) | 4 RJ45 ports: device must be IEEE 802.3 af/at compliant, 10/100Mbps connection to IP end device |
Power Supply | PoE from the FLEX switch, or external power supply; maximum 30W (over 2-pairs) each port |
DC IN (Barrel Connector) | Optional (sold separately) 48V – 56VDC via an external AC/DC Power Adapter (IEC Class II isolated only) NOTE 1: Local power supply used must have its output isolated from Earth potential. NOTE 2: If voltage of local power supply is lower than the power voltage provided from the PoE switch, then power on the PoE switch should be turned off. |
Power Consumption | 1.5W |
Mean Time Before Failure | 20+ years |
Operating Temperature | -40ºC to 70ºC Tests conducted against international safety standard at maximum ambient temperatures of 60ºC at 64W and 55ºC at 120W |
Mean Time Before Failure (MTBF) | 20+ years |
Humidity | 10% to 95% (non-condensing) at 35° C |

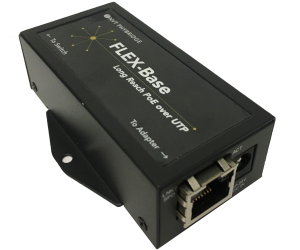

Part Number | NV-FLXLK-BSE |
Dimensions | 8.8cm x 5.5cm x 2.5cm (LxWxD); 3.46” x 2.16” x 0.98” (LxWxH) |
Weight | 114 g (4 oz.) |
Interface: Network Infrastructure side (FLEX side) | 1 RJ45 port: UTP/STP cable (2-pair or 4-pair) |
Interface: for IP End Device (IEEE side) | (For General/PoE Switch) 1 RJ45 port: supports negotiation with IEEE 802.3 af/at switches |
Power Supply | PoE from the FLEX24 switch, PoE switch, or external power supply; maximum 50W (over 4-pairs) or 30W (over 2-pairs) |
DC IN (Barrel Connector) | Optional (sold separately) 48V – 56VDC via an external AC/DC Power Adapter (IEC Class II isolated only) NOTE: local power supply must have its output isolated from Earth potential. |
Power Consumption | 1.5W |
Operating Temperature | -40ºC to 70ºC (Tests conducted against international safety standard at maximum ambient temperatures of 60ºC at 30W and 50ºC at 50W) |
Mean Time Before Failure (MTBF) | 20+ years |
Humidity | 10% to 95% (non-condensing) at 35° C |
EMC | Emission (Class A for FLEX4 and Class B for FLEX-Link, FLEX-Base, FLEX-C): EN 55032:2012, FCC Part 15, EN 50121-4:2015 (FLEX4, FLEX-Link, FLEX-Base) Immunity: EN 55024:2010, EN 50121-4:2015 (FLEX4, FLEX-Link, FLEX-Base) |
Safety | UL 60950-1 2nd Ed 2014-10-14, CSA C22.2 No. 60950-1-07 2nd Ed 2014-10, IEC 60950-1:2005 + A1 + A2, EN 60950-1:2006 + A11 + A12 + A1 + A2 |
Environment | EU RoHS Directive 2011/65 |
The FLEX Extender Kits are robust, convenient to order, long reach single port UTP solutions. The FLEX-Link and FLEX4, when connected to the FLEX-Base unit via 2 or 4 pair UTP can deliver 100Mbps (symmetrical full duplex) with up to 50 watts of power with 2,000ft (610m) reach.
PoE Power Availaable to FLEX-Link, FLEX4 and FLEX-C
FLEX-LINK/FLEX4 | 20FT (6M) | 250FT (76M) | 500FT (152M) | 750FT (228M) | 1000FT (305M) | 1250 (381M) | 1500FT (457M) | 1750FT (533M) | 2000FT (610M) |
---|---|---|---|---|---|---|---|---|---|
4 Pair UTP/STP | 50W | 47W | 44W | 41W | 38W | 35W | 32W | 30W | 27W |
2 Pair UTP/STP | 30W | 30W | 27W | 25W | 22W | 20W | 17W | 14W | 12W |
The FLEX-Link can support up to 50W of power using all 4-pairs or maximum of 30W using 2-pairs. FLEX4 can accept up to 120W of power and it can output up to 30W of power for 802.3af/at compliant devices. To account for cable losses and increase PoE delivery, the FLEX-Link/FLEX4 adapters have the option of using a local external power supply. The FLEX-Link/FLEX4 are IEEE-compliant and will negotiate power with the IP device. | |||||||||
FLEX-C | 20FT (6M) | 250FT (76M) | 500FT (152M) | 750FT (228M) | 1000FT (305M) | 1250 (381M) | 1500FT (457M) | 1750FT (533M) | 2000FT (610M) |
4 Pair UTP/STP | 30W | 30W | 30W | 29W | 27W | 26W | 25W | 23W | 22W |
2 Pair UTP/STP | 30W | 30W | 27W | 25W | 22W | 20W | 17W | 14W | 12W |
The FLEX-C supports IEEE-compliant devices and can support up to 30W of power. If additional power is required use FLEX-Link instead. |
