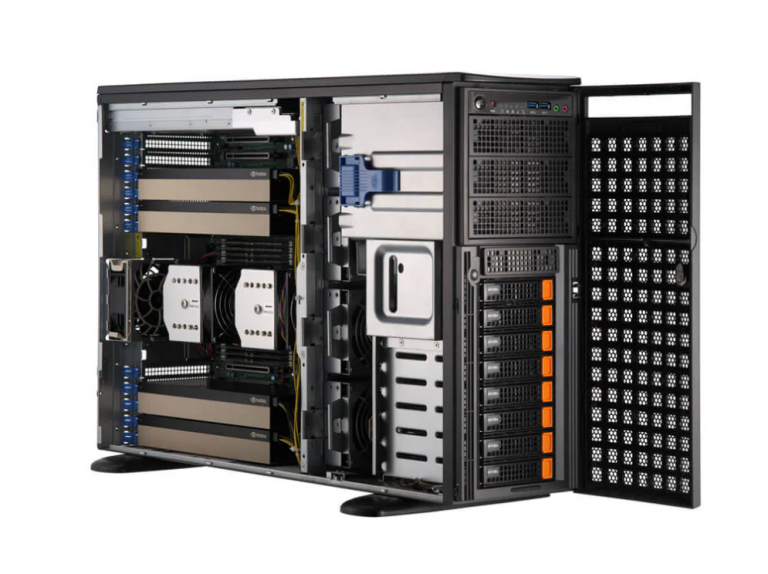

SuperMicro GPU SuperServer SYS-741GE-TNRT

DP Intel Workstation with up to 4 NVIDIA H100 or A100 PCIe GPUs

Key Applications

  • High Performance Computing
  • VDI
  • AI/Deep Learning Training
  • Media/Video Streaming
  • Cloud Gaming
  • Animation and Modeling
  • Design & Visualization
  • 3D Rendering
  • Diagnostic Imaging
  • AI Training


Key Features

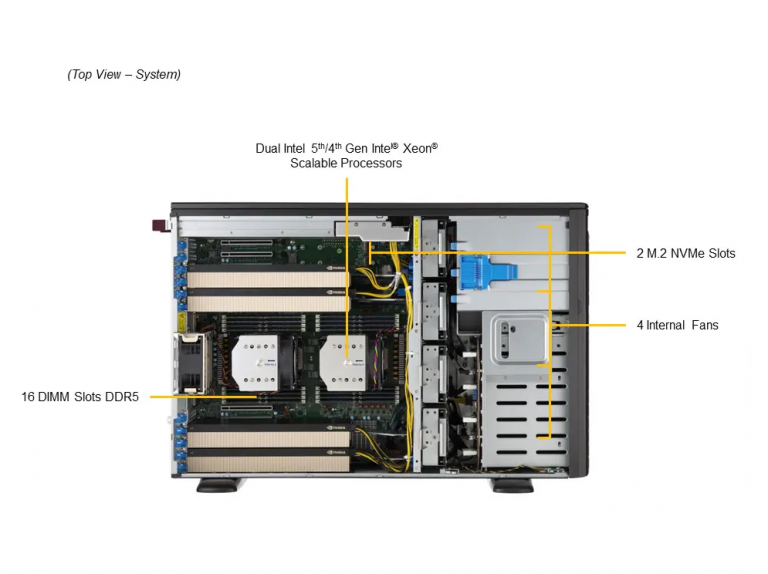

  • 5th/4th Gen Intel® Xeon® Scalable processor support
  • 16 DIMM slots Up to 4TB: 16x 256 GB DRAM Memory Type: 5600MTs ECC DDR5
  • Up to 4x double width, full length GPUs
    4x PCIe 5.0 x16 (double-width) slots, 3x PCIe 5.0 x16 (single-width) slots
  • Total 8x 3.5″ Hot-swap SATA/NVMe/SAS drive bays

Product SKUs

  • SuperServer SYS-741GE-TNRT

Motherboard

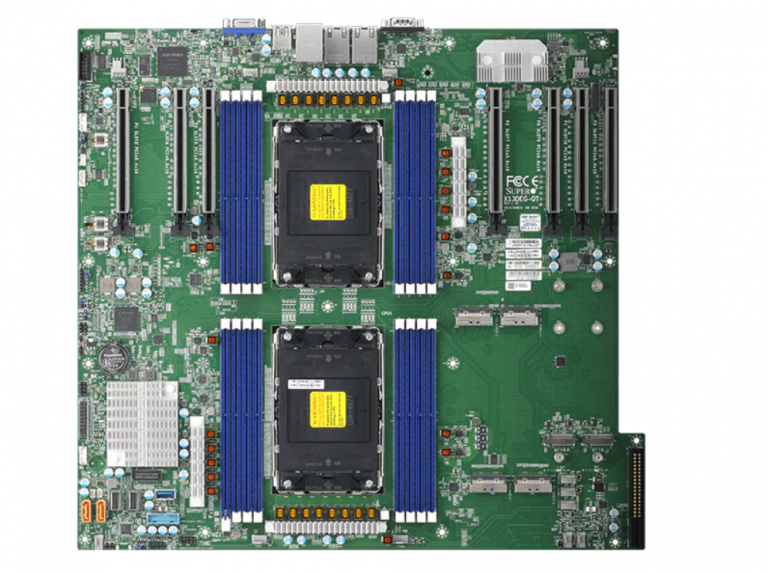

  • Super X13DEG-QT


Processor

  • CPU
    • Dual Socket E (LGA-4677)
    • 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
  • Core Count
    • Up to 64C/128T; Up to 320MB Cache per CPU
  • Note
    • Supports up to 350W TDP CPUs (Air Cooled)


GPU

  • Max GPU Count
    • Up to 4 double-width or 4 single-width GPUs
  • Supported GPU
    • NVIDIA PCIe: H100 NVL, H100, RTX 4000 Ada Generation, L40, RTX A5500, RTX A6000, RTX A4000, RTX 6000 Ada Generation, L40S, L4, A30, A100
    • AMD PCIe: Instinct MI210
      View GPU Options
  • CPU-GPU Interconnect
    • PCIe 5.0 x16 CPU-to-GPU Interconnect
  • GPU-GPU Interconnect
    • NVIDIA® NVLink® Bridge (optional)


System Memory

  • Memory
    • Slot Count: 16 DIMM slots
    • Max Memory (1DPC): Up to 2TB 5600MT/s ECC DDR5 RDIMM
    • Max Memory (2DPC): Up to 4TB 4400MT/s ECC DDR5 RDIMM
      View Memory Options
  • Memory Voltage: 1.1V


On-Board Devices

  • SATA: SATA (6Gbps)
  • Chipset: Intel® C741
  • Network Connectivity: 2 RJ45 10GbE with Intel® X550-AT2
    View AOC Options

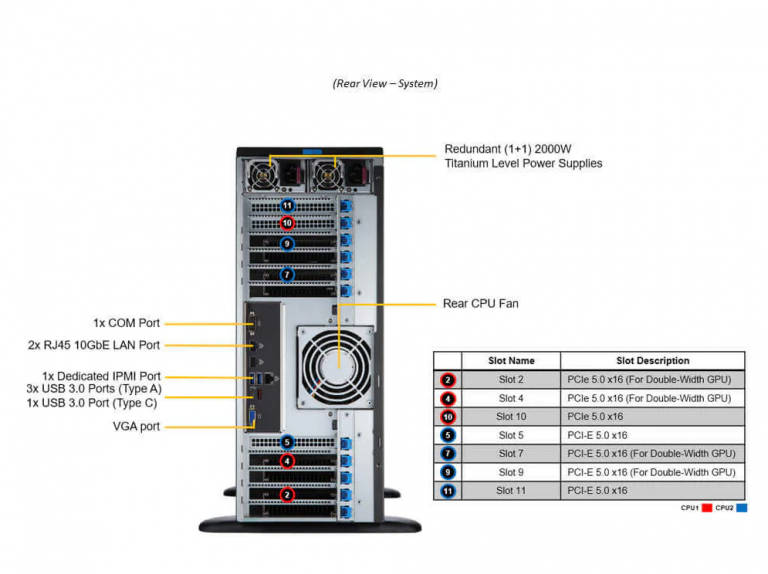

Input / Output

  • Video: 1 VGA port(s) (Rear)
  • Serial: 1 COM port(s) (Rear)
  • Audio: Front Audio
  • TPM: 1 TPM Onboard/port 80


System BIOS

  • BIOS Type: AMI 32MB SPI Flash EEPROM


Management

  • Software
    • SuperCloud Composer
    • Supermicro Server Manager (SSM)
    • Supermicro Update Manager (SUM)
    • Supermicro SuperDoctor® 5 (SD5)
    • Super Diagnostics Offline (SDO)
    • Supermicro Thin-Agent Service (TAS)
    • SuperServer Automation Assistant (SAA) New!
  • Power configurations
    • Power-on mode for AC power recovery
    • ACPI Power Management


Security

  • Hardware
    • Trusted Platform Module (TPM) 2.0
    • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
  • Features
    • Cryptographically Signed Firmware
    • Secure Boot
    • Secure Firmware Updates
    • Automatic Firmware Recovery
    • Supply Chain Security: Remote Attestation
    • Runtime BMC Protections
    • System Lockdown


PC Health Monitoring

  • CPU
    • Monitors for CPU Cores, Chipset Voltages, Memory
    • 8+4 Phase-switching voltage regulator
  • FAN
    • Fans with tachometer monitoring
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
  • Temperature
    • Monitoring for CPU and chassis environment
    • Thermal Control for fan connectors


Chassis

  • Form Factor: Tower Rackmount
  • Model: CSE-749TS-R2K05BP


Dimensions and Weight

  • Height: 7″ (178 mm)
  • Width: 17.2″ (437 mm)
  • Depth: 29″ (737 mm)
  • Package: 27″ (H) x 13″ (W) x 38″ (D)
  • Weight
    • Gross Weight: 62 lbs (28.1 kg)
    • Net Weight: 46 lbs (20.9 kg)
  • Available Color
    • Black Front & Silver Body

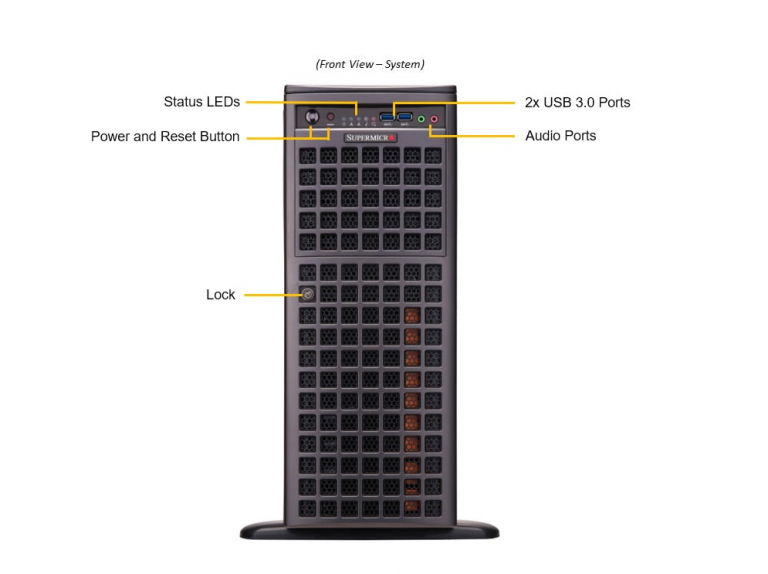

Front Panel

  • LED
    • Hard drive activity LED
    • Network activity LEDs
    • Power status LED
    • System Overheat & Power Fail LED
  • Buttons
    • Power On/Off button
    • System Reset button


Expansion Slots

  • PCI-Express (PCIe) Configuration
    • Default
      7 PCIe 5.0 x16 FHFL slots
      View AOC Options
  • M.2
    • 2 M.2 PCIe 5.0 x4 NVMe slots (M-key)

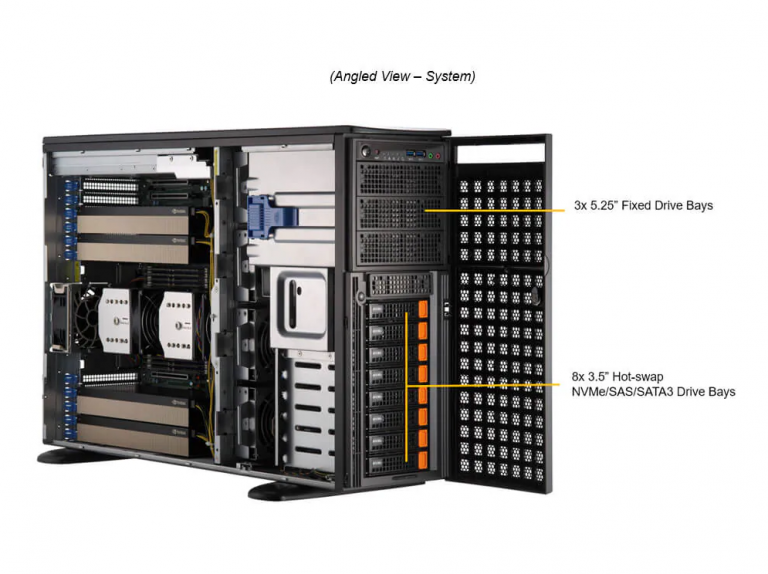

Drive Bays / Storage

  • Drive Bays Configuration
    • Default: Total 8 bays
      • 8 front hot-swap 3.5″ NVMe/SAS/SATA drive bays
    • Option A: Total 8 bays
      • 8 front hot-swap 2.5″ NVMe/SAS/SATA drive bays
        View NVMe Options
        View Drive Options
    • M.2: 2 M.2 NVMe slots (M-key)
      View M.2 Options


System Cooling

  • Fans: 4 heavy duty fans with optimal fan speed control


Power Supply

  • 2x 2000W Redundant (1 + 1) Titanium Level (96%) power supplies
  • Dimension (WxHxL) 73.5 x 40 x 265 mm
  • AC Input
    • 1000W: 100-120Vac / 50-60Hz
      100-127Vac
    • 1800W: 200-220Vac / 50-60Hz
      200-240Vac
    • 2000W: 200-240Vac / 50-60Hz (for UL/cUL only)
    • 1980W: 220-230Vac / 50-60Hz
    • 2000W: 230-240Vdc
    • 2000W: 230-240Vac / 50-60Hz
  • +12V
    • Max: 83.3A / Min: 0A (100Vac-120Vac)
    • Max: 83.3A / Min: 0A (100Vac-127Vac)
    • Max: 150A / Min: 0A (200Vac-220Vac)
    • Max: 166.7A / Min: 0A (200Vac-240Vac)
    • Max: 166.7A / Min: 0A (200Vac-240Vac) (for UL/cUL only)
    • Max: 165A / Min: 0A (220Vac-230Vac)
    • Max: 166.7A / Min: 0A (230Vac-240Vac)
  • 12V SB
    • Max: 2.1A / Min: 0A
  • Output Type Backplanes (gold finger)


Operating Environment

  • ROHS: RoHS Compliant
  • Environmental Spec.
    • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
    • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
    • Operating Relative Humidity: 8% to 90% (Non-Condensing)
    • Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
