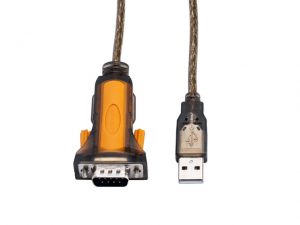

USB 2.0 to RS232 Serial Converter (FTDI Chipset) – 1.5 Meter

Part# SI-ADA15061

  • Standards: conforming to USBV1.0, 1.1 and 2.0
  • USB signals: VCC, DATA+, DATA-, GND and FG
  • RS-232 signals: CD RXD TXD DTR GND DSR RTS CTS RI
  • Single chip USB to asynchronous serial data transfer interface
  • Support Bits per second Data transfer rates from 300 baud to 921600baud (RS232 ) at TTL levels
  • UART interface support for 7 or 8 data bits,1 or 2 stop bits and even/odd/mark/space/none
  • Flow control none,hardware and xon/xoff
  • Synchronous and asynchronous bit bang interface options with RD# and WR# strobes
  • UART signal inversion option
  • USB 2.0 Full Speed capable
  • Extended operating temperature range; -40 to 85⁰C
  • USB to UART Cable
  • POS Printer Terminal
  • Networking System
  • Industrial and Power Meter
  • USB Bar Code Reader
  • USB Digital Camera Interface
  • USB Wireless/Wired Modem

Package Contents

  • 1x USB 2.0 to Serial Converter
  • 1x CD Driver
