XCubeNAS
CPU
Intel® Xeon® 2.2GHz Quad-Core Processor
RAM
8GB DDR4 ECC U-DIMM (Max 128GB)
Network
Built-in 10GbE Solution
Easy Maintenance
Modularized Hardware Platform Design
Easy File Access with Quick Connection
No need to install any applications, you can easily find your XCubeNAS.
XFinder
XFinder is a desktop utility that searches for QSAN XCubeNAS devices in the local area network.
Snapshot Single File Recovery
Better control data versions and execute point-in-time recovery on folders and LUNs.
Thin Provision
Space resources are dynamically distributed to the most demanding.
Auto-Tiering
Increase the performance of your business-related applications by using auto-tiering; without crippling your budget.
Deployment
With the simple, clear and intuitive interface design makes the NAS easier and more pleasant for everyone.
Storage for Virtualization
Compatible with virtualization standard for VMware® vSphere™, Veeam™, Microsoft® Hyper-V.
KVM
The built-in hypervisor manager provides a quick and straightforward way to deploy virtual resources into your infrastructure.

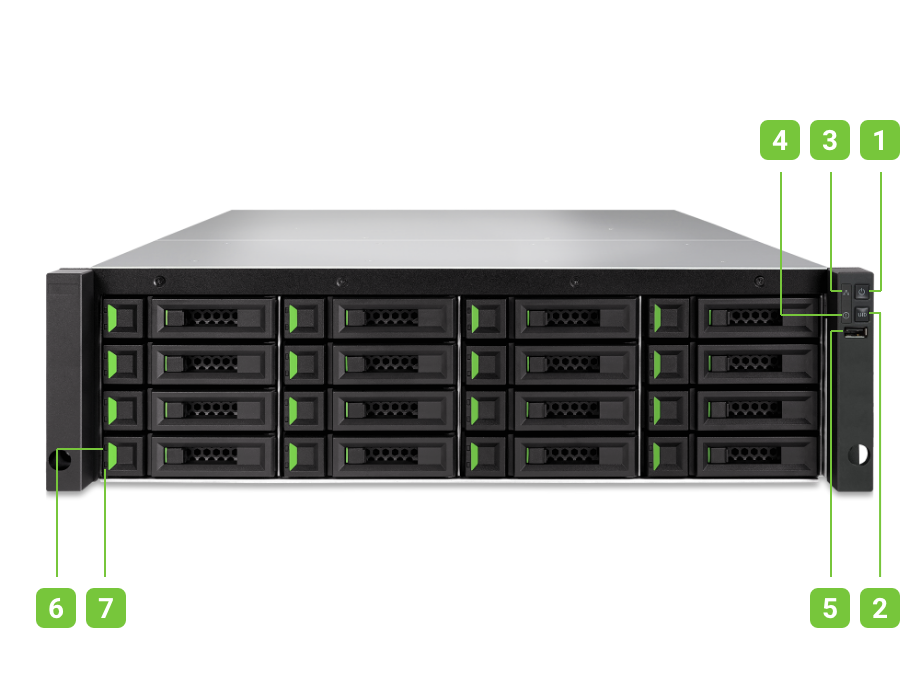

1. Power Button/LED Indicator for Power Status
2. Unique Identifier (UID) Button/LED Indicator
3. System Access LED Indicator
4. System Status LED Indicator
5. USB 2.0 Port
6. Disk Drive Power LED Indicator
7. Disk Drive Status LED Indicator
8. Power Supply Unit PSU Indicator and Beep Off Button
9. Additional Host Card Expansion Slot
10. Controller Status LED
11. Master/Slave LED
12. Unique Identifier (UID) LED Indicator
13. Mute Button
14. Reset Button
15. Console Port
16. Service Port
17. Gigabit LAN Port
18. 12Gb/s SAS Wide Port
19. 10GbE LAN Port
20. USB 3.0 Port
| Architecture | Single Controller |
| Storage OS | QSM 3 |
| CPU | |
|---|---|
| Processor | Intel® Xeon® |
| CPU Architecture | 64-bit |
| CPU Frequency | Quad-Core 2.2GHz |
| Memory | |
| System Flash | 8GB SATA DOM |
| Memory Module Pre-installed | 8GB DDR4 ECC U-DIMM |
| Total Memory Slots | 4 |
| Memory Expandable up to | 128 GB |
| Notes | – |
| Storage | |
| Drive Bays | 3.5″ Slot x 16 |
| Maximum Drive Bays with Expansion Unit | 208 |
| Compatible Drive Type | 3.5″ SAS HDD 3.5″ SATA HDD 2.5″ SAS SSD 2.5″ SATA HDD 2.5″ SATA SSD |
| Drive Interface | SAS 12Gb/s and SATA 6Gb/s |
| Maximum Internal Raw Capacity | 256TB |
| Maximum Raw Capacity with Expansion Units | 3328TB |
| Hot Swappable Drive | ✓ |
| Notes |
|
| External Port | |
| USB 2.0 Port | 1 (Front) |
| USB 3.0 Port | 2 (Rear) |
| HDMI Port | – |
| Others | Console Port x1 |
| Notes | – |
| Connectivity Port | |
| 1GbE RJ45 LAN Port | 1 (Onboard) 4 (Option: HQ-01G4T) |
| 10GbE RJ45 LAN Port | 2 (Onboard) 2 (Option: HQ-10G2T) |
| 10GbE SFP+ LAN Port | 4 (Option: HQ-10G4S2) |
| Thunderbolt 3 | – |
| 16Gb SFP+ Fibre Channel | 4 (Option: HQ-16F4S2) 2 (Option: HQ-16F2S2) |
| Notes | For more information, please refer to accessory book Please refer to the section below for expansion slot specification |
| Expansion Port | |
| 12Gb/s SAS Wide Port | 2 (Onboard) |
| Notes | – |
| PCIe Expansion | |
| Gen3x8 Slot | – |
| Gen3x4 Slot | – |
| Notes | – |
| Host Card Expansion | |
| Gen3x8 Slot | 1 |
| Gen2x4 Slot | 1 |
| Notes | Gen2x4 slot provides 20Gb bandwidth |
| Appearance | |
| Dimension (H x W x D) (mm) | 130.3 x 438 x 515 |
| Chassis Form Factor | 19″ Rackmount 3U 16 Bay |
| Net Weight (kg) | 21.7 |
| Gross Weight (kg) | 29.1 |
| Notes | – |
| Memory Protection | |
| Cache-to-Flash Module | – |
| Battery Backup Module + Flash Module | – |
| Notes | – |
| Others | |
| System Fan | 80mm x 80mm x 4 pcs |
| Replaceable System Fan | ✓ |
| Power Recovery | ✓ |
| Scheduled Power On/Off | ✓ |
| Wake on LAN/WAN | ✓ |
| Power Supply Unit / Adapter | 770W/850W x 2 (80 PLUS Platinum) |
| Redundant Power Supply | ✓ |
| AC Input Power Voltage | 100V-240V |
| Power Frequency | 50-60 Hz, Single Phase |
| Power Consumption | 203 W (Access) 200 W (HDD Hibernation) |
| British Thermal Unit | 692 BTU/hr (Access) 681 BTU/hr (HDD Hibernation) |
| LCM Support | ✓ |
| Notes | – |
| Environment Temperature | |
| Operating Temperature | 0 to 40°C |
| Storage Temperature | -10°C to 50°C |
| Operating Relative Humidity | 20% to 80% non-condensing |
| Non-operating Relative Humidity | 10% to 90% |
| Notes | – |
| Certification | |
| Certifications | CE FCC BSMI VCCI |
| Notes | – |
| Warranty | |
| Standard Warranty | 3 years |
| Notes | – |
