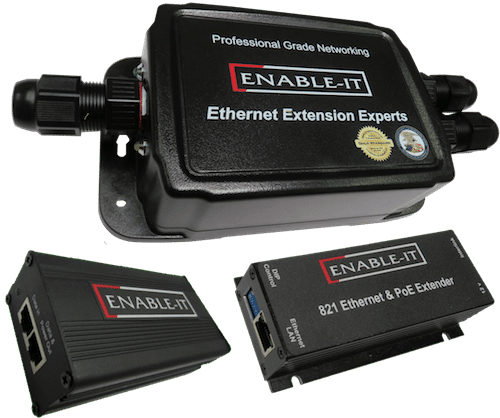

824WP Outdoor Waterproof PoE Extender Kit

The Enable-IT 824WP PoE (Power over Ethernet) Extender is the fastest encrypted and Secure PoE Extender on the planet bar none!

Designed & Made in the USA with quality and prideful Craftsmanship! These American-made Enable-IT 824WP PoE Extenders use industry LAN standard RJ-45 (8-pin) connectors to make installing in most any environment very easy. We have engineered most of the technical complexity into automatic line adjustments so the plug and go simplicity on your existing or new wiring is a snap. Ethernet Extension Experts designs and manufactures the 824WP PoE (Power over Ethernet) Extender kit, along with its entire product line, in the USA that makes us more responsive to customer demanding needs. We use the highest quality materials and craftsmanship.

This is trusted Business Reliable Professional Grade PoE Extender without the high cost of fiber or unsecured wireless. Why risk your business to lower quality imported equipment? The value of your network communications should be a protected investment. Beware of Cheap Chinese “so called Business Use” (not even suitable US Home use) gear that is banned in the US due to proven hidden spyware.

You can leverage existing Telephone wire all the way up to Category rated CAT 7 twisted pair to deploy your extended PoE devices vs expensive fiber that is unable to deliver PoE Power and is susceptible to extreme cold and movement damage.

Leverage existing or new wiring that is contiguous all the way up to 2,000ft (609m) encrypted and secure, effectively saving you thousands in labor, administration, and security. Think fiber is cheap? Have you ever priced or paid for fiber troubleshooting? Think again.

PoE Extender coupled with industrial strength components to survive harsh temperature extremes delivers superior value and capabilities no other competitor can touch.

  • Extended PoE Ethernet over 4 pair new or existing Telephone wiring up to Category rated wiring
    Max distance 2,000ft (609m) from device extension to device extension, encrypted and secure
  • (1) 821WP CO unit can support up to 9 other 821WP CPE units on the same wiring run!.
  • (1) 824W CPE PoE Output.
  • Rapid LAN style installation RJ45 jacks – no programming required.
  • Ruggedized Professional Business Grade mountable casing for harsh environments.
  • LAN Device independence – Transparent to 802.3 Protocols, Applications.
    and MAC / IP addresses.
  • Longest warranty protection included exceeding any knockoff competitors.

Power

Enable-IT 360 56V – 61W Gigabit PoE Injector included.

Data Rate

10/100/1000 Mbps full-duplex Ethernet Data
100Mbps Interconnect throughput
Ethernet LAN Protocol Independent
Ethernet LAN MTU 1500
IP VLAN passthough

Interface

Ethernet: (2) LAN RJ-45 Standard 10/100Base-TX autosensing ports on the CPE
Interlink Wiring: RJ-45 (2/4-Pair)

Dimensions

821 CO Unit Height 1″ (27mm) Depth 2.1″ (54mm) Width 4.3″ (110mm)
824W CPE Unit Height 2.0″ (51mm) Depth 11.0″ (279mm) Width 4.5″ (114mm)

Environment

Operational Temperature: -49°F to 168°F (-45°to 76°C)
Humidity: 5% to 95%, non-condensing

Enclosures

821 CO unit – Ruggedized wallmount black Aluminum casing Optimized for heat extraction and isolation without fans.
824 CPE unit – Ruggedized IP68 Rated Waterproof Outdoor Enclosure
