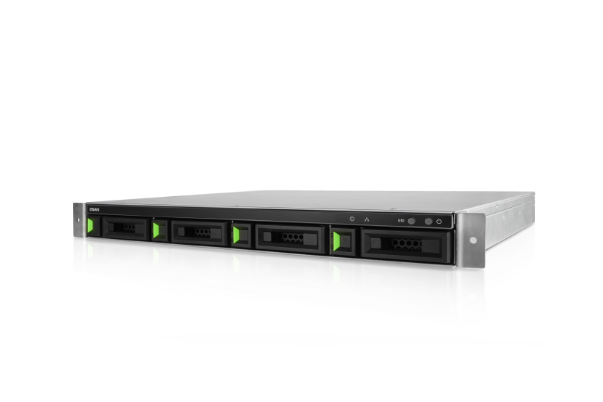

XCubeNAS
An All-in-one Entry Level Storage Solution
CPU
Intel® 64-bit Dual-Core
RAM
4GB DDR3 (MAX 8GB)
Ready for High Speed Internet
Support 10 GbE RJ45 or SFP+
Maximum Capacity
Up to 64TB
Why Do You Need XN3004R
The XN3004R provides enterprise-class features such as unified storage systems and data compression at an affordable price. Support cloud synchronization and multi-point data backup. Double protection of software and hardware effectively prevents the risk of data theft and tampering.
NVR Storage Solution
The NVR software can view, play back, manage, and store multiple network cameras simultaneously through the iSCSI connection of the XN3004R. And with online compression, optimize storage space usage, greatly improve the monitoring image retention period, and provide an affordable and reliable storage solution.
Light Private Cloud Storage
QSM’s built-in web-based file manager and remote backup greatly improve the efficiency of data and backup management. In addition, the XN3004R provides advanced storage technology and security solutions to enhance data security and more efficient use of storage space within a limited budget.
Easy Deployment, Easy to Operate
The QSM operating system interface is simple and easy to operate, making settings such as file sharing and permissions easy. Through archival services and cloud synchronization, you can connect members of the company department to provide enterprise-level file sharing and backup at the entry price.
Enterprise Storage Function
QSM provides enterprise-class storage capabilities, such as Unified Storage and Compression, enabling users to deploy elastically and increase storage space efficiency.
XMirror
XMirror supports NAS multi-point backup and permission backup. It can synchronize folder or logical volume content between multiple XCubeNAS devices. When an accident occurs, it can use the backup on other devices to achieve disaster recovery, and can easily design multi-layer backup. Provide the best protection.
Cloud Synchronization
Use XN3004R to perform file fast reading and writing on the local end, and transmit it to the cloud through cloud synchronization function, make full use of edge calculation, speed up data processing and transmission speed, and reduce delay to achieve maximum efficiency.
Software and Hardware Double Protection
Files written under single-write multiple read (WORM) protection can only be read for a defined period of time, protecting data from ransomware attacks. And the hard disk self-encryption (SED) function, even if the disk itself is stolen, still have to use a dedicated authentication key to access, without worrying about the risk of data leakage.
Web Finder
No need to install any applications, you can easily find your XCubeNAS.
XFinder
XFinder is a desktop utility that searches for QSAN XCubeNAS devices in the local area network.
1.Power Button/LED Indicator for Power Status
2. Unique Identifier (UID) Button/LED Indicator
3. System Access LED Indicator
4. System Status LED Indicator
5. Disk Drive Power LED Indicator
6. Disk Drive Status LED Indicator
7. Console Port
8. USB 2.0 Port
9. PCIe Gen2x8 slot
10. Mute Button
11. Reset Button
12. Unit Identification (UID) LED Indicator
13. 1GbE LAN Port
| Architecture | Single Controller |
| Storage OS | QSM 3 |
| CPU | |
|---|---|
| Processor | Intel® |
| CPU Architecture | 64-bit |
| CPU Frequency | Dual-Core |
| Memory | |
| System Flash | 8GB USB DOM |
| Memory Module Pre-installed | 4GB DDR3L SO-DIMM |
| Total Memory Slots | 1 |
| Memory Expandable up to | 8GB |
| Notes | – |
| Storage | |
| Drive Bays | 3.5″ Slot x 4 |
| Maximum Drive Bays with Expansion Unit | – |
| Compatible Drive Type | 3.5″ SATA HDD 2.5″ SATA HDD 2.5″ SATA SSD M.2 SSD |
| Drive Interface | SATA 6Gb/s (backward compatible with SATA 3Gb/s) |
| Maximum Internal Raw Capacity | 64TB |
| Maximum Raw Capacity with Expansion Units | – |
| Hot Swappable Drive | ✓ |
| Notes |
|
| External Port | |
| USB 2.0 Port | 2 (Rear) |
| USB 3.0 Port | – |
| HDMI Port | – |
| Others | Console Port x 1 |
| Notes | – |
| Connectivity Port | |
| 1GbE RJ45 LAN Port | 2 (Onboard) |
| 10GbE RJ45 LAN Port | 2 (Option:RHBE10R2) |
| 10GbE SFP+ LAN Port | 2 (Option:XN-E1002) |
| Thunderbolt 3 | – |
| 16Gb SFP+ Fibre Channel | – |
| Notes | For more information, please refer to accessory book Please refer to the section below for expansion slot specification |
| Expansion Port | |
| 12Gb/s SAS Wide Port | – |
| Notes | – |
| PCIe Expansion | |
| Gen3x8 Slot | – |
| Gen3x4 Slot | – |
| Notes | Gen2x8 Slot x1, For more information, please refer to hardware manual |
| Host Card Expansion | |
| Gen3x8 Slot | – |
| Gen2x4 Slot | – |
| Notes | – |
| Appearance | |
| Dimension (H x W x D) (mm) | 44 x 438 x 370 |
| Chassis Form Factor | 12″ Rackmount 1U 4 Bay |
| Net Weight (kg) | 5.97 |
| Gross Weight (kg) | 9.9 |
| Notes | – |
| Memory Protection | |
| Cache-to-Flash Module | – |
| Battery Backup Module + Flash Module | – |
| Notes | – |
| Others | |
| System Fan | 40mm x 40mm x 2 pcs |
| Replaceable System Fan | – |
| Power Recovery | – |
| Scheduled Power On/Off | – |
| Wake on LAN/WAN | – |
| Power Supply Unit / Adapter | FLEX ATX 200W |
| Redundant Power Supply | – |
| AC Input Power Voltage | 100V-240V |
| Power Frequency | 50-60 Hz, Single Phase |
| Power Consumption | 105 W (Access) 72 W (HDD Hibernation) |
| British Thermal Unit | 360 BTU/hr (Access) 244 BTU/hr (HDD Hibernation) |
| LCM Support | ✓ |
| Notes | – |
| Environment Temperature | |
| Operating Temperature | 0 to 40°C |
| Storage Temperature | -10 °C to 50 °C |
| Operating Relative Humidity | 20% to 80% non-condensing |
| Non-operating Relative Humidity | 10% to 90% |
| Notes | – |
| Certification | |
| Certifications | CE FCC BSMI VCCI RCM |
| Notes | – |
| Warranty | |
| Standard Warranty | 3 years |
| Notes | – |
