CSB200-818 – Slim Type System with IBASE IB818 3.5” Disk-Size SBC

Embedded Computing

CSB200-818
Slim Type System with IBASE IB818 3.5” Disk-Size SBC

  • Fanless system with IBASE IB818 3.5” Disk-Size SBC
  • Supports Intel® Atom® Processors E3940/ E3930 & Pentium® N4200/ Celeron® N3350 Series
  • Wide-range operating temperature from -30°C to 65°C
  • 12V(-10%) ~ 24V(+10%) DC wide-range power input
  • Wall mount kit included

The CSB200-818 is a slim fanless system that is fully operable under harsh conditions, with a wide-range operating temperature. Suitable for 24/7 deployments such as in industrial automation and intelligent transportation applications, this compact system comes with a 12V-24V DC terminal block power input and an optional 60W power adaptor.

The robust embedded CSB200-818 houses a 3.5-inch single board computer powered by an Intel® Atom® processor E3930, N4200 or N3350 and is equipped with 4GB (default) of DDR3L-1866 system memory that is upgradeable to 8GB. It offers versatile wired and wireless connectivity with the two onboard RJ45 Gigabit Ethernet ports and dual mini PCIe slots for optional WiFi, Bluetooth and LTE interface cards.

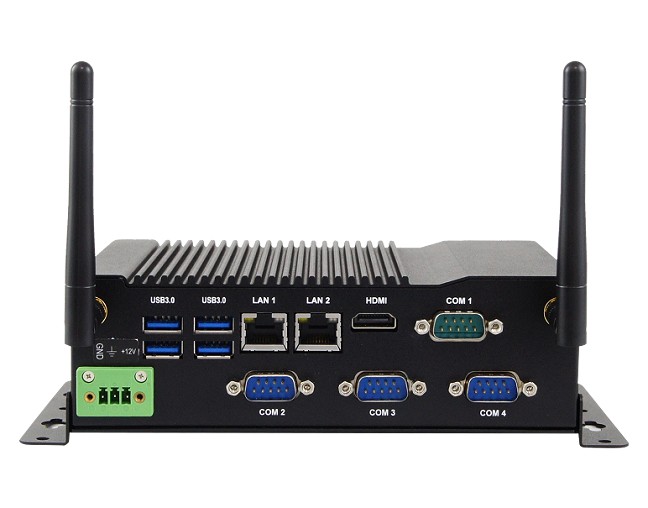

“IBASE has designed the CSB200-818 for customers requiring system reliability, efficient power consumption, longevity and low total cost of ownership. It has a rich set of interface connectivity options and a heat-dissipating enclosure with a flexible storage design for easy installation and maintenance,” said Wilson Lin, Director of IBASE Product Planning Department. Onboard rear I/O interface includes four high-speed USB 3.0, HDMI, four COM ports and two RJ45 connectors. Other features provided are wall-mount mounting and two wireless antennas.

To support an operating temperature range of -30°C to +65°C, the CSB200-818 is configured with an Intel® Atom® processor E3930 and 64GB industrial-grade SSD. With an N-Series (N4200/N3350) CPU and 500GB of SATA HDD, it operates between -10°C to +45°C. Both temperature conditions require sufficient airflow.

System MainboardIB818 (F-1 Stepping)
CPU TypeIntel® Atom® Processors E3940/ E3930 & Pentium® N4200/ Celeron® N3350 Series
System SpeedUp to 2.5GHz
Memory1x 4GB DDR3L-1866 SO-DIMM, Max. 8GB
ConstructionAluminum & steel
Chassis ColorBlack
Front Panel External I/O1x Power LED
1x HDD LED
1x Power button
1x Reset button
2x USB 2.0 ports
1x Line-out, 1x Mic-in
Rear Panel External I/O4x USB 3.0 port
1x HDMI
1x RS232/422/485 port for COM#1
3x RS232 ports for COM#2/COM#3/ COM#4
2x RJ45 Gigabit Ethernet port
1x 3-pin DC-in terminal block for 12V(-10%) ~ 24V(+10%)
Expansion Slots1x Full-size Mini PCI-E socket (USB 2.0 + SATA)
1x Half-size Mini PCI-E socket (USB 2.0)
Storage / M.21x 2.5″ HDD or SSD (Removable)
MountingDesktop or wall mount (wall mount kit included)
Weight1.1kg
Dimensions172mm (W) x 111.6mm (D) x 53mm (H)
6.77”(W) x 4.39”(D) x 2.09”(H)
Operating Temperature-30°C~65°C (22°F~149°F) For E3940 (With SSD) *With air flow
-10°C ~45°C(14°C~113°C) For N-Series CPU (With HDD) *With air flow
Storage Temperature-40°C ~ 85°C (-40°F~185°F)
Relative Humidity5~90% @ 45°C, (non-condensing)
VibrationOperatiing: (with IEC 60068-2-64) 1.0 grms / 5~500Hz / random operation
Non-Operating:(with IEC 60068-2-64) 2.0 grms / 5~500Hz / random operation
ShockOperating : 20G/11 ms Duration (with MIL-STD-810G)
Non-operating: 30G/11 ms Duration (with MIL-STD-810G)
CertificationCE / LVD / FCC Class B
CSB200-818-I40Fanless system w/ Intel® Atom® N3350, 4x COM, 1x 4GB DDR3L memory, 1x 2.5” 500GB SATA HDD, w/o power adaptor
CSB200-818-I30Fanless system w/ Intel® Atom® E3930, 4x COM, 1x 4GB DDR3L memory industrial-grade, 1x 2.5” 64GB MLC industrial-grade SSD, w/o power adaptor
CSB200-818-420Fanless system w/ Intel® Atom® N4200, 4x COM, 1x 4GB DDR3L memory, 1x 2.5” 500GB SATA HDD, w/o power adaptor
CSB200-818-335Fanless system w/ Intel® Atom® N3350, 4x COM, 1x 4GB DDR3L memory, 1x 2.5” 500GB SATA HDD, w/o power adaptor
60W power adaptor (Optional)60W (12V @5A) power adaptor, DC-jack or bare wire type, Compatible with IEC62368-1/ EN62368-1
