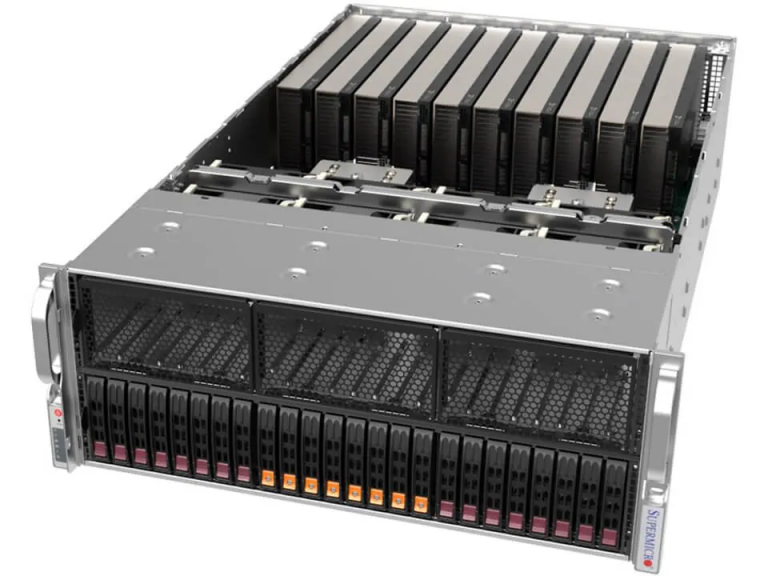

SuperMicro GPU A+ Client System AS -4125GS-TNRT2

DP AMD 4U Dual-Root PCIe GPU System with up to 10 PCIe GPUs

Key Applications

  • AI / Deep Learning
  • High Performance Computing


Key Features

  • Flexible GPU support: active & passive GPUs

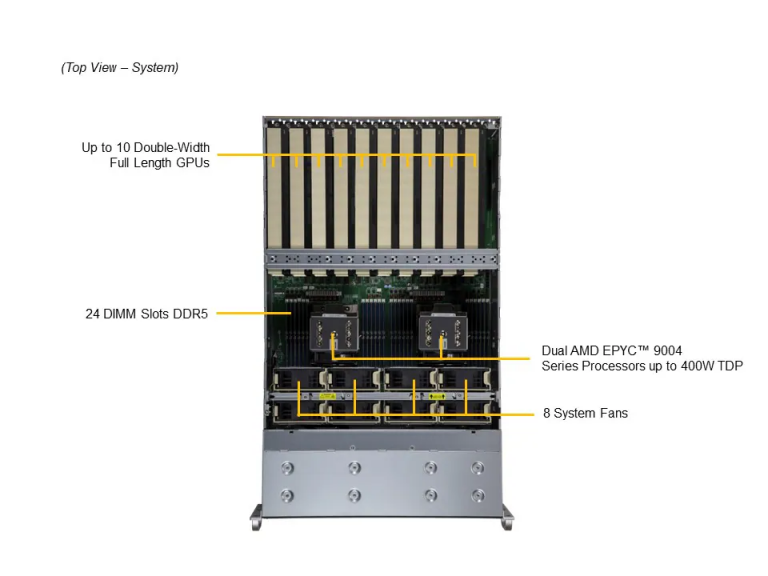

    Dual Root Configuration with PCIe Switch for up to 10 double width, full length GPUs
    8 Hot-Swap Heavy Duty Fans with Optimal Fan Speed Control
  • Dual-Socket, AMD EPYC™ 9004 Series Processors up to 360W TDP
  • 24 DIMM Slots, up to 6TB DDR5 memory
  • up to 8x 2.5″ Hot-swap NVMe drive bays
    1 M.2 Slot
  • AIOM / OCP 3.0 Support

Product SKUs

  • A+ Server AS -4125GS-TNRT2

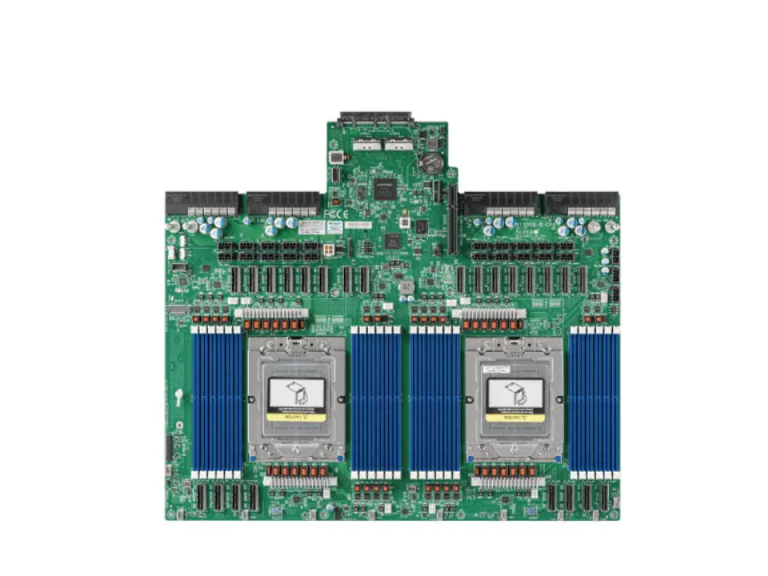

Motherboard

  • Super H13DSG-O-CPU


Processor

  • CPU: Dual Socket SP5 AMD EPYC™ 9004 Series Processors
  • Core Count: Up to 128C/256T
  • Note: Supports up to 400W TDP CPUs (Air Cooled)


GPU

  • Max GPU Count
    Up to 10 double-width GPUs
  • Supported GPU
    NVIDIA PCIe: H100 NVL, H100, L40, RTX A6000, RTX A5000, RTX A4000, RTX 6000 Ada Generation, L40S, A40, A30, A100
    AMD PCIe: Instinct MI210
    View GPU Options
  • CPU-GPU Interconnect
    PCIe 5.0 x16 Switch Dual-Root
  • GPU-GPU Interconnect
    NVIDIA® NVLink® Bridge (optional), AMD Infinity Fabric™ Link (optional)


System Memory

  • Memory: Slot Count: 24 DIMM slots
    Max Memory (1DPC): Up to 6TB 4800MT/s ECC DDR5 RDIMM/LRDIMM
    View Memory Options
  • Memory Voltage: 1.1V


On-Board Devices

  • SATA: SATA (6Gbps)
  • Chipset: AMD SP5
  • Network Connectivity: 2 RJ45 10GbE
    View AIOM Options
    View AOC Options

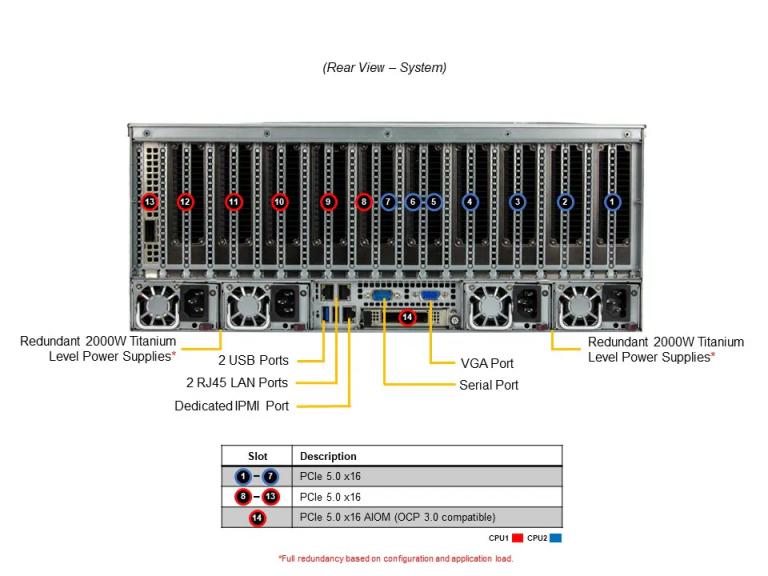

Input / Output

  • LAN
    • 1 RJ45 1 GbE Dedicated BMC LAN port(s)
    • 2 RJ45 10 GBASE-T LAN port(s)
  • USB
    • 2 port(s) (rear)
  • Video
    • 1 VGA port(s)
  • Serial
    • 1 COM port(s) (Rear)


System BIOS

  • BIOS Type: AMI 32MB SPI Flash EEPROM


Management

  • Software
    • SuperCloud Composer
    • Supermicro Server Manager (SSM)
    • Supermicro Update Manager (SUM)
    • Supermicro SuperDoctor® 5 (SD5)
    • Super Diagnostics Offline (SDO)
    • Supermicro Thin-Agent Service (TAS)
    • SuperServer Automation Assistant (SAA) New!
  • Power configurations
    • Power-on mode for AC power recovery
    • ACPI Power Management


Security

  • Hardware
    • Trusted Platform Module (TPM) 2.0
    • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
  • Features
    • Cryptographically Signed Firmware
    • Secure Boot
    • Secure Firmware Updates
    • Automatic Firmware Recovery
    • Supply Chain Security:
    • Remote Attestation
    • Runtime BMC Protections
    • System Lockdown


PC Health Monitoring

  • CPU
    • Monitors for CPU Cores, Chipset Voltages, Memory
    • 7 +1 Phase-switching voltage regulator
  • FAN
    • Fans with tachometer monitoring
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
  • Temperature
    • Monitoring for CPU and chassis environment
    • Thermal Control for fan connectors


Chassis

  • Form Factor: 4U Rackmount
  • Model: CSE-418G2TS

Dimensions and Weight

  • Height: 7″ (178 mm)
  • Width: 17.2″ (437 mm)
  • Depth: 29″ (737 mm)
  • Package: 26.57″ (H) x 27″ (W) x 41″ (D)
  • Weight:
    • Gross Weight: 100 lbs (45.3 kg)
    • Net Weight: 65.5 lbs (29.7 kg)
  • Available Color: Black Front & Silver Body


Front Panel

  • LED
    • Hard drive activity LED
    • Network activity LEDs
    • Power status LED
    • System Overheat & Power Fail LED
  • Buttons
    • Power On/Off button
    • System Reset button


Expansion Slots

  • PCI-Express (PCIe) Configuration: Default
    11 PCIe 5.0 x16 FHFL slots
    View AOC Options

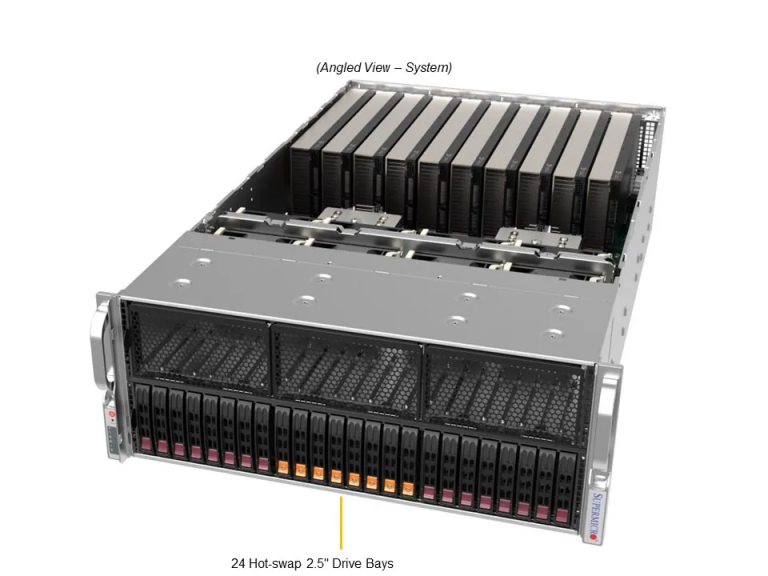

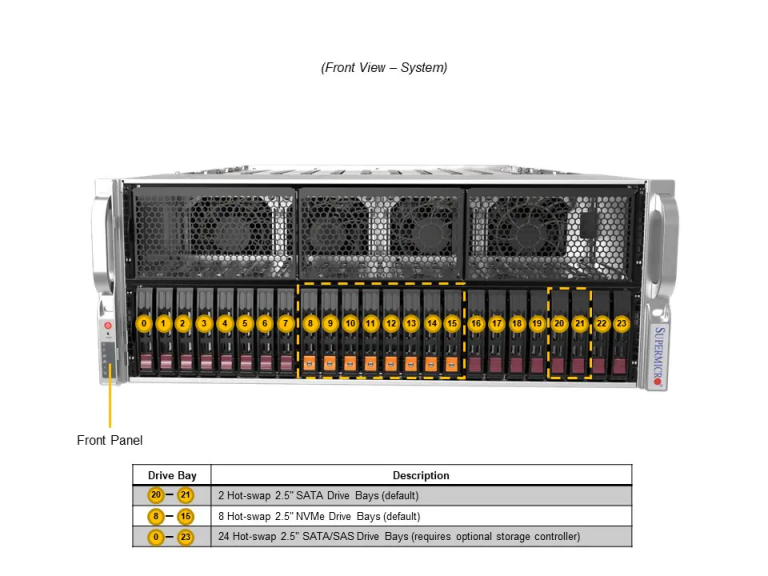

Drive Bays / Storage

  • Drive Bays Configuration: Default: Total 10 bays
    • 8 front hot-swap 2.5″ NVMe drive bays
    • 2 front hot-swap 2.5″ SATA drive bays
      View NVMe Options
      View Drive Options
  • M.2
    • 1 M.2 PCIe 3.0 x4 NVMe slot (M-key)
      View M.2 Options


System Cooling

  • Fans: 8 heavy duty fans with optimal fan speed control


Power Supply

  • 4x 2000W Redundant Titanium Level (96%) power supplies
  • Dimension (WxHxL) 73.5 x 40 x 203 mm
  • AC Input
    • 1000W: 100-127Vac
    • 1000W: 100-127Vac / 50-60Hz
    • 1800W: 200-220Vac
    • 1800W: 200-220Vac / 50-60Hz
    • 1980W: 220-230Vac
    • 1980W: 220-230Vac / 50-60Hz
    • 2000W: 220-240Vac
    • 2000W: 220-240Vac / 50-60Hz (for UL only)
    • 2000W: 230-240Vdc
    • 2000W: 230-240Vac
    • 2000W: 230-240Vac / 50-60Hz
    • 2000W: 230-240Vdc / 50-60Hz (for China only)
  • +12V
    • Max: 83A / Min: 0A (100Vac-127Vac)
    • Max: 150A / Min: 0A (200Vac-220Vac)
    • Max: 165A / Min: 0A (220Vac-230Vac)
    • Max: 166A / Min: 0A (230Vac-240Vac)
  • 12V SB
    • Max: 3.5A / Min: 0A
    • Max: 3.5A
  • Output Type Backplanes (gold finger)


Operating Environment

  • Environmental Spec.
    • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
    • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
    • Operating Relative Humidity: 8% to 90% (non-condensing)
    • Non-operating Relative Humidity: 5% to 95% (non-condensing)
