Promise Vess A6000 Series

Optimized for Video Surveillance

The Vess A6000 Series storage appliance is specially engineered for IP video surveillance deployment on medium to large scale; ideally suited for surveillance systems in banks, malls, casinos, factories, warehouses, commercial, residential, governmental or private enterprises. The subsystems are capable of continuous recording and playback operation without dropping frames.

Higher Capacity with Better Design

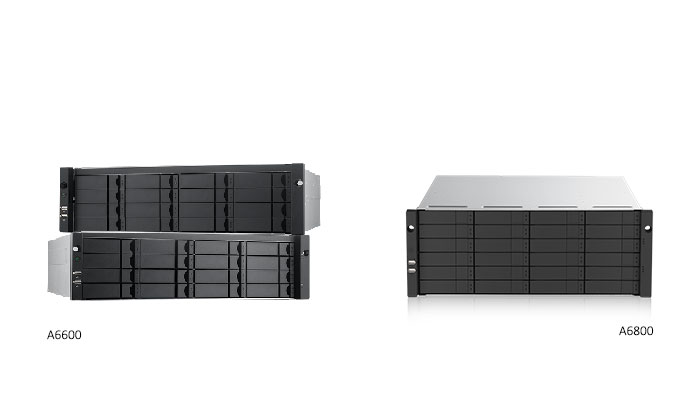

Two options for large HDD capacity enclosures are available: a 3U 16-drive (Vess A6600) and 4U 24-drive (Vess A6800). Combined with Promise Technology know how creates an outstanding combination of performance and reliability for Midsize to Large-Scale surveillance deployments. For larger storage system requirements, the system is cost effect using the Promise JBOD products to extend capacity without the added expense of an additional RAID server.


Reduces Deployment Costs and Complexity

Support and equipment costs are reduced; without a separate RAID storage unit to manage, there is no longer a need for a server, controller cards, external cables, and a separate storage enclosure. Additionally, the Vess A6000 Series reduces interoperability conflicts caused when integrating different hardware.

SMARTBOOST™ Technologies

PROMISE proprietary SMARTBOOST™ Technology provides the most stable and high performance storage solution for your surveillance system. Performance that can be limited by storage equipment bottlenecks is significantly improved by Promise SMARTBOOST™ Technology. With the optimized software features and FRU hardware design, you have the best stability and storage performance with the best C/P ratio.

Predictive Playback

Utilizes idle recording times to monitor read patterns to predict where the next playback will be needed so the hard disk drives are not competing with the workload of the system.

Remote Active Service

Takes all worries away by proactively detecting when PSU, controllers or HDDs are going into critical condition and automatically notifying user the hardware status. A huge advantage in installations with site restrictions, such as banking, as it not only saves maintenance costs but also the headaches caused when outside support personnel need access to restricted areas.

Sequential Pattern Recording

Eliminates the heavy workloads caused by random write patterns; this feature monitors recording patterns and collects data in the cache buffer and writes data to the drives once a full stripe is ready. This creates a sequential recording pattern which offers the smoothest performance.

Reduce the complexity of Maintenance by OPAS


One Plug Auto Service (OPAS) is a unique feature of Promise Vess App solutions that provides user convenience, reduces complexity for maintenance, and stream- lines technical support. OPAS enables users to easily collect all the necessary logs and data used by the Promise support team to analyze.

FEATURES

  • Optimized for Surveillance
  • Extensive VMS Support
  • Midsize to Large-Scale Solutions
  • Cost Effective & Scalable
  • Easy to Administer & Maintain

SPECIFICATIONS

Camera Range
1501
Form Factor
3U, 19″ Rackmount
Number Of Drives
16 Drives (3.5″)
Drive Type
12Gbs SAS/ 6Gbs SATA @ 3.5”, SSD capable @2.5”², Hot Swappable
Controller(s)
Single
System Processor
Intel Xeon E3-1275v5
System Memory
8GB x 2 Default (Max 64GB)
I/O
2x Gigabit Ethernet
Internal Storage (M.2)
128GB
Storage Expansion
Optional Promise SAS and iSCSI Storage
Max. # of HDDs Supported
Up to 96 drives through SAS JBOD expansion (iSCSI optional)
USB Ports
4x USB 3.0, 2x USB 2.0
PCI Express Ports
1×8-lane gen3
Graphics
D-sub x 1, DVI x 1, HDMI x 1
Audio I/O
5x 3.5 mm + 1x SPDIF Audio Jack
RAID Levels
0, 1, 1E, 3, 5, 6, 10 (0+1), 30, 50, 60. Any combination can exist at the same time
Hot Spares
Multiple global or dedicated hot-spare drives with revertible option
Max LUNs per system/array
256/32
Supported OS (64-bit)
Windows 10, Windows 2016
Management Tools/Interface
Graphical UI/SNMP via Ethernet, CLI via Ethernet or Graphics, OPAS Service via USB, SDK or API for Integration
Appliance Mode
Surveillance Optimization @ Arrays in Normal and Degrade
Event Notification
Email, SNMP, Buzzer, LEDs
AC Input
100 ~ 240V AC, 60 ~ 50Hz
Current (Maximum)
8-4A
Power Supply
Redundant 550W for each power, Hot swappable N+1 Design (80 PLUS certified)
System Controller
Replaceable FRU design
Temperature Range
5° ~ 40°C (-40° ~ 60°C non-operational)
Dimensions
131 x 503 x 447 mm (5.1 x 19.8 x 17.6 in)
Weight
System W/O HDD: 16.11kg
System W/ HDD: 26.84kg
Safety and EMI Certification
CE, FCC, VCCI, RCM, BSMI, KC, (EMI Class A), CB3, cTUVus4
Warranty
3 year limited warranty5
Optional Accessories
Sliding Rail, 8/16 GB DDR4 Memory
1The ideal camera range were the test output with fully populated enclosure and 16GB memory under 1080P/30FPS/5Mbps/H264/Pure Recording/Motion Detection disabled/Normal RAID Status.
2For 2.5” SSD/HDD it will need to use different optional carriers.
3CB Report is tested according to IEC/EN 60950-1 and IEC/EN 62368-1
4 cTUVus label marking is tested according to UL 62368-1 and CAN/CSA-C22.2 NO. 62368-1.
5 Available to purchase the extra 2 years warranty to total 5 years warranty.

FEATURES

  • Optimized for Surveillance
  • Extensive VMS Support
  • Midsize to Large-Scale Solutions
  • Cost Effective & Scalable
  • Easy to Administer & Maintain

SPECIFICATIONS

Camera Range
2001
Form Factor
4U, 19″ Rackmount
Number Of Drives
24 Drives (3.5″)
Drive Type
12Gbs SAS/ 6Gbs SATA @ 3.5”, SSD capable @2.5”², Hot Swappable
Controller(s)
Single
System Processor
Intel® Core™ i7-7700
System Memory
8GB x 2 Default (Max 64GB)
I/O
2x Gigabit Ethernet
Internal Storage (M.2)
128GB
Storage Expansion
Optional Promise SAS and iSCSI Storage
Max. # of HDDs Supported
Up to 104 drives through SAS JBOD expansion(iSCSI optional)
USB Ports
4x USB 3.0, 2x USB 2.0
PCI Express Ports
1×8-lane gen3
Graphics
D-sub x 1, DVI x 1, HDMI x 1
Audio I/O
5x 3.5 mm + 1x SPDIF Audio Jack
RAID Levels
0, 1, 1E, 3, 5, 6, 10 (0+1), 30, 50, 60. Any combination can exist at the same time
Hot Spares
Multiple global or dedicated hot-spare drives with revertible option
Max LUNs per system/array
256/32
Supported OS (64-bit)
Windows 10, Windows 2016
Management Tools/Interface
Graphical UI/SNMP via Ethernet, CLI via Ethernet or Graphics, OPAS Service via USB, SDK or API for Integration
Appliance Mode
Surveillance Optimization @ Arrays in Normal and Degrade
Event Notification
Email, SNMP, Buzzer, LEDs
AC Input
100 ~ 240 VAC, 60 ~ 50Hz
Current (Maximum)
8-4A
Power Supply
Redundant 550W for each power, Hot swappable N+1 Design (80 PLUS certified)
System Controller
Replaceable FRU design
Temperature Range
5° ~ 40°C (-40° ~ 60°C non-operational)
Dimensions
173 x 503 x 447 mm (6.8 x 19.8 x 17.6 in)
Weight
System W/O HDD: 19.26 kg
System W/ HDD: 35.36 kg
Safety and EMI Certification
CE, FCC, VCCI, RCM, BSMI, KC, (EMI Class A), CB3, cTUVus4
Warranty
3 year limited warranty5
Optional Accessories
Sliding Rail, 8/16 GB DDR4 Memory
1The ideal camera range were the test output with fully populated enclosure and 16GB memory under 1080P/30FPS/5Mbps/H264/Pure Recording/Motion Detection disabled/Normal RAID Status.
2For 2.5” SSD/HDD it will need to use different optional carriers.
3CB Report is tested according to IEC/EN 60950-1 and IEC/EN 62368-1
4 cTUVus label marking is tested according to UL 62368-1 and CAN/CSA-C22.2 NO. 62368-1.
5 Available to purchase the extra 2 years warranty to total 5 years warranty.
