Promise Vess A-Series

Vess A-Series

Optimized for surveillance

The Vess A-Series storage appliances are custom built to offer the highest levels of performance for IP video surveillance. Promise is active in all of the key video surveillance segments and is able to provide a solution for deployments of any size.

Reduces costs and complexity

Vess Storage Appliances reduce support and equipment costs because there is no separate RAID storage unit to manage, eliminating the need for a server, controller cards, external cables, and a separate storage enclosure. Additionally, Vess Storage Appliances reduce interoperability conflicts caused when integrating different hardware.

Certified by surveillance partners

Vess A series storage appliances are fully compatible with a range of IP cameras and VMS from vendors including Aimetis, Axxonsoft, CamIQ, CSVi, Digifort, Genetec, OnSSI, SeeTec, Sony and Milestone.

Highly integrated with smooth scalability

An SDK library is provided for VMS UI and management integration. Plus, Vess supports the Milestone VMS plug-in enabling it to be managed via the XProtect interface. Additionally, you can easily expand via iSCSI by adding Promise external storage.

SMARTBOOST™ Technologies

A collection of unique features designed to provide the highest level of service and overcome performance bottlenecks to allow Vess Storage Appliances to handle a higher number of IP cameras than competing solutions.

  • Predictive Playback – utilizes idle recording times to monitor read patterns to predict where the next playback will be needed so the hard disk drives are not competing with the workload of the system.
  • Remote Active Service – takes all worries away by proactively detecting when PSU, controllers or HDDs are going into critical condition and automatically notifying user the hardware status. A huge advantage in installations with site restrictions, such as banking, as it not only saves maintenance costs but also the headaches caused when outside support personnel need access to restricted areas.
  • Sequential Pattern Recording – eliminates the heavy workloads caused by random write patterns as this feature monitors recording patterns and collects data in the cache buffer and only writes data to the drives once a full stripe is ready. This creates a sequential recording pattern which offers the smoothest performance.


Simplified planning

With just a few clicks of the Promise online planning tool you can easily get the whole picture of what you need for your project, including the required hardware for VMS platform and storage devices, how to configure the servers and storage and see a topology of the interconnecting systems with the most popular and recommended settings. Start planning now at: http://www.promise.com/Surveillance/DesignTool

FEATURES

  • Ideal for 32-64 HD IP camera range installation
  • Advanced RAID engine requires no separate storage unit
  • Certified with the top VMS solutions
  • Supports the Milestone XProtect plug-in
  • Scales smoothly in capacity with Vess R2000 series
  • Robust error handling enables non-stop recording without dropping frames
  • Hot swappable drive bays, redundant power supplies and One Plug Auto Service
  • Perfect for small to mid-size deployments such as retail, offices, banks, and more


SPECIFICATIONS

Product Category
Storage Appliance for Video Surveillance
Availability
Released
Ideal Camera Range
32 to 64
Form Factor
2U6, 19” rackmount
Drive Support
SATA (6Gb/s or 3Gb/s), NCQ, TCQ
(Initiator still runs at 3Gb/s mode)
System Processor
Intel® Core™ i3 Dual-core
System Memory
8GB Standard (max. 16GB)
Max. # of HDDs Supported
118
(Expansion through iSCSI and multiple JBOD expansion enclosures)
RAID Levels
0, 1, 1E, 3, 5, 6, 10 (0+1), 30, 50
Preloaded OS
Windows Embedded Standard 7 Runtime
Supported OS (64-bit)
Windows Embedded Standard 7 Runtime (WS7P), Windows 10, Windows Server 2012R2 Standard
Power Supply
500W (Three redundant 250W N+1 design), 1288 BTU/hr
Dimensions
88.2 x 440 x 400 mm (3.5 x 17.3 x 15.7 in)
Weight
10.4kg(22.9 lbs) w/o drives, 14.9kg (32.8lbs) w/drives
Warranty
3 years and EW plans

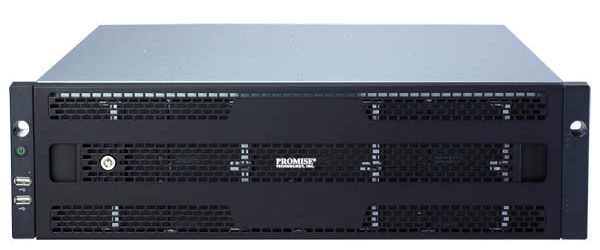

FEATURES

  • Ideal for 64-128 HD IP camera range installation
  • Advanced RAID engine requires no separate storage unit
  • Certified with the top VMS solutions
  • Supports the Milestone XProtect plug-in
  • Scales smoothly in capacity with Vess R2000 series
  • Robust error handling enables non-stop recording without dropping frames
  • Hot swappable drive bays, redundant power supplies and One Plug Auto Service
  • Perfect for mid-size to large scale deployments such as manufacturing, city surveillance and more


SPECIFICATIONS

Product Category
Storage Appliance for Video Surveillance
Availability
Released
Ideal Camera Range
64 to 128
Form Factor
3U16, 19″ rackmount
Drive Support
SATA (6Gb/s or 3Gb/s), NCQ, TCQ
(Initiator still runs at 3Gb/s mode)
System Processor
Intel® Xeon® E3 Quad-core
System Memory
8GB Standard (max. 16GB)
Max. # of HDDs Supported
128
(Expansion through iSCSI and multiple JBOD expansion enclosures)
RAID Levels
0, 1, 1E, 3, 5, 6, 10 (0+1), 30, 50, 60
Preloaded OS
Windows Embedded Standard 7 Runtime
Supported OS (64-bit)
Windows Embedded Standard 7 Runtime (WS7P), Windows 10, Windows Server 2012R2 Standard
Power Supply
500W (Three redundant 250W N+1 design), 1288 BTU/hr
Dimensions
130.1 x 446.2 x 461 mm (5.1 x 17.6 x 18.1 in)
Weight
15.9kg(35.1 lbs) w/o drives, 27.9kg (61.5lbs) w/drives
Warranty
3 years and EW plans
