Promise VTrak J5000 Series

VTrak JBOD expansion units for cloud and enterprise data centers

Affordable Enterprise-Level Storage

The VTrak J5000 Series delivers an affordable high performance SAS solution with advanced enterprise level reliability and functionality. The four external 12 Gb/s SAS ports per I/O module provide the connectivity for large capacity solutions requiring multiple cascaded JBODs, and high bandwidth solutions requiring speed. It features fully redundant I/O modules, power supplies and cooling units, combined with a cable-less system design, providing exceptional data availability even during component failures for the enterprise environment.

Supports Hybrid HDD/SSD Arrays

Fully backward compatible with 6 Gb/s SAS/SATA devices, users have the ability to deploy 3 Gb/s, 6 Gb/s, and 12 Gb/s SAS/SATA HDDs and SSDs in the J5000 Series. Efficient power supplies provide up to 90% power efficiency, which improves TCO by conserving power, reducing heat output, and improving cooling costs. The internal 12 Gb/s SAS expander-based architecture also allows for transparent access to each drive, enabling full utilization of the power management features built into modern hard drives.

Increased Performance To Optimize Datacenters

The VTrak J5000 Series moves data at incredible speeds, allowing you to optimize your datacenter. Administrators can deploy with the fastest SAS bus speed with 12 Gb/s HDDs or SSDs. These systems are fully backward compatible with 6 Gb/s SAS/SATA drives, yet are still able to optimize the full port bandwidth of 12 Gb/s to the host. Flash arrays allow you to optimize speed for key enterprise apps that require utmost performance. The internal 12 Gb/s SAS expander-based architecture allows for data to transfer faster with greater redundancy protection.

FEATURES

  • VTrak J5000 Series 12 Gb/s SAS subsystems deliver a high-performance SAS solution with advanced enterprise level reliability and functionality
  • 24 hot-swappable 2.5” (SFF) drive bays in a high-density 2U chassis
  • Supports SAS and SATA drives simultaneously and is compatible with leading SAS & SATA drives, HBAs, and RAID controllers
  • Dual active/active SAS JBOD I/O modules provide redundant data paths to ensure data availability and redundant hot-swappable Field Replaceable Units (FRUs)
  • Flexible wide-port configuration: Four x4 wide ports, two x8 wide ports or one x16 wide port per IOM and SES-2 compliant enclosure management

SPECIFICATIONS

Form Factor
2U/24 Bay
Drive Support
  • Up to 24 2.5” drives
  • 3/6/12 Gb/s SAS, 3/6 Gb/s SATA HDD and SSD
  • Supports any mix of SAS and SATA drives simultaneously in the same enclosure
External I/O Ports (per controller)
Each SBB 2.0 I/O module has four SAS ports using industrial standard Mini SAS HD connectors (SFF-8644), one port supports Wake-on SAS feature for upstream and other ports can be either upstream or downstream for cascading additional JBODs.
Expander Management Features
  • Self-configuring expander supports full SAS domain topology management
  • T-10 based zoning support is applicable for non-VTrak E-Class configurations
  • End Device Frame Buffering (aggregate bandwidth over multiple slow devices e.g. 6 Gb/s and 3 Gb/s)
  • Smart cable support to detect cable type and tune PHY automatically for maximum reliability
  • SMP – SAS Management Protocol
  • In-band access to Expander and PHY information
  • Statistic counters and performance monitors
  • SES EM– SES Enclosure Management (ANSI T10 SES 2 Compliant)
  • SCSI SES command set over virtual SSP device
  • Wake-on-SAS support, Wake-on-LAN support
Management Interfaces
  • LED status indicator support for drives, FRU and enclosure environmentals
  • In–band SES enclosure management alerts user to out of spec operation: thermal condition, voltage condition or component failures, protecting data and hardware
  • Full subsystem management CLI through out–of–band RS232 serial port
Enclosure Protocol and Management
  • ANSI T10 SES 2, SMP (SES over in-band SAS)
  • Persistence Error Logging with NVRAM, Extensive Service Report File, VPD (Vital Product Data) on Chassis and FRUs
Voltage
100-240 Vac Auto-Ranging
Current (Maximum)
9A @ 100 Vac; 4A @ 240 Vac
Power Conversion Efficiency
>80% @ 110V (>20% load), >80% @ 240V (>20% load) Temperature Range
Temperature Range
Operational: 5° to 40°C, Non-Operational: -40° to 60°C
Humidity
Operational: 10% to 90% (Non-Condensing), Non-Operational: 5% to 95% (Non-Condensing)
Acoustic Noise Levels
55 dB (Typical), 65 dB (Maximum)
Shock
Operational: 5G, 11ms duration, Non-Operational: 10G, 11ms duration
Vibration
Operational: 0.3G, 5 to 500 Hz, Non-Operational: 1G, 5 to 500 Hz
Safety and EMI Certification
EMC Class A: CE, FCC, VCCI, BSMI, RCM and KC
Safety: IEEE CB, UL/cUL and TUV
Environment Standards
RoHS, GreenPC, WEEE
Power Supply
Efficient 80PLUS GOLD Certified redundant PSU
Dimensions
88mm x 446.7mm x 420mm
(3.5” x 17.6” x 16.5”)
Weight
13.8Kg(30.4lbs) w/o drives
19.2Kg (43.3 lbs) w/ drives
Warranty
3-year full system limited warranty, optional extended warranty, onsite parts replacement program
Support
24/7 web and phone support, 24/7 access to PROMISE site Software, firmware, and compatibility list

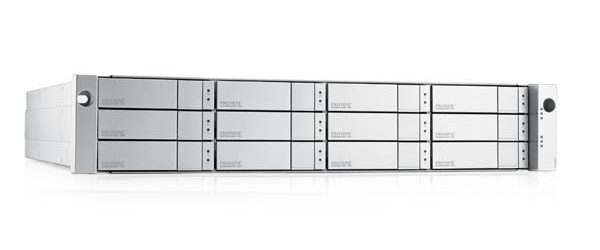

FEATURES

  • VTrak J5000 Series 12 Gb/s SAS subsystems deliver a high performance SAS solution with advanced enterprise level reliability and functionality
  • 12 hot-swappable 3.5” (LFF) drive bays in a robust 2U chassis
  • Supports SAS and SATA drives simultaneously and is compatible with leading SAS & SATA drives, HBAs, and RAID controllers
  • Dual active/active SAS JBOD I/O modules provide redundant data paths to ensure data availability and redundant hot-swappable Field Replaceable Units (FRUs)
  • Flexible wide-port configuration: Four x4 wide ports, two x8 wide ports or one x16 wide port per IOM and SES-2 compliant enclosure management

SPECIFICATIONS

Form Factor
2U/12 Bay
Drive Support
  • Up to 12 3.5” drives
  • 3/6/12 Gb/s SAS, 3/6 Gb/s SATA HDD and SSD
  • Supports any mix of SAS and SATA drives simultaneously in the same enclosure
External I/O Ports (per controller)
Each SBB 2.0 I/O module has four SAS ports using industrial standard Mini SAS HD connectors (SFF-8644), one port supports Wake-on SAS feature for upstream and other ports can be either upstream or downstream for cascading additional JBODs.
Expander Management Features
  • Self-configuring expander supports full SAS domain topology management
  • T-10 based zoning support is applicable for non-VTrak E-Class configurations
  • End Device Frame Buffering (aggregate bandwidth over multiple slow devices e.g. 6 Gb/s and 3 Gb/s)
  • Smart cable support to detect cable type and tune PHY automatically for maximum reliability
  • SMP – SAS Management Protocol
  • In-band access to Expander and PHY information
  • Statistic counters and performance monitors
  • SES EM– SES Enclosure Management (ANSI T10 SES 2 Compliant)
  • SCSI SES command set over virtual SSP device
  • Wake-on-SAS support, Wake-on-LAN support
Management Interfaces
  • LED status indicator support for drives, FRU and enclosure environmentals
  • In–band SES enclosure management alerts user to out of spec operation: thermal condition, voltage condition or component failures, protecting data and hardware
  • Full subsystem management CLI through out–of–band RS232 serial port
Enclosure Protocol and Management
  • ANSI T10 SES 2, SMP (SES over in-band SAS)
  • Persistence Error Logging with NVRAM, Extensive Service Report File, VPD (Vital Product Data) on Chassis and FRUs
Voltage
100-240 Vac Auto-Ranging
Current (Maximum)
9A @ 100 Vac; 4A @ 240 Vac
Power Conversion Efficiency
>80% @ 110V (>20% load), >80% @ 240V (>20% load) Temperature Range
Temperature Range
Operational: 5° to 40°C
Non-Operational: -40° to 60°C
Humidity
Operational: 10% to 90% (Non-Condensing)
Non-Operational: 5% to 95% (Non-Condensing)
Acoustic Noise Levels
55 dB (Typical), 65 dB (Maximum)
Shock
Operational: 5G, 11ms duration
Non-Operational: 10G, 11ms duration
Vibration
Operational: 0.3G, 5 to 500 Hz
Non-Operational: 1G, 5 to 500 Hz
Safety and EMI Certification
EMC Class A: CE, FCC, VCCI, BSMI, RCM and KC
Safety: IEEE CB, UL/cUL and TUV
Environment Standards
RoHS, GreenPC, WEEE
Power Supply
Efficient 80PLUS GOLD Certified redundant PSU
Dimensions
88mm x 446.7mm x 507mm
(3.5” x 17.6” x 19.96”)
Weight
14.8Kg(32.6lbs) w/o drives
24.8Kg (54.7 lbs) w/ drives
Warranty
3-year full system limited warranty, optional extended warranty, onsite parts replacement program
Support
24/7 web and phone support, 24/7 access to PROMISE site Software, firmware, and compatibility list

FEATURES

  • VTrak J5000 Series 12 Gb/s SAS subsystems deliver a high performance SAS solution with advanced enterprise level reliability and functionality
  • 16 hot-swappable 3.5” (LFF) drive bays in a robust 3U chassis
  • Supports SAS and SATA drives simultaneously and is compatible with leading SAS & SATA drives, HBAs, and RAID controllers
  • Dual active/active SAS JBOD I/O modules provide redundant data paths to ensure data availability and redundant hot-swappable Field Replaceable Units (FRUs)
  • Flexible wide-port configuration: Four x4 wide ports, two x8 wide ports or one x16 wide port per IOM and SES-2 compliant enclosure management

SPECIFICATIONS

Form Factor
3U/16 Bay
Drive Support
  • Up to 16 3.5” drives
  • 3/6/12 Gb/s SAS, 3/6 Gb/s SATA HDD and SSD
  • Supports any mix of SAS and SATA drives simultaneously in the same enclosure
External I/O Ports (per controller)
Each SBB 2.0 I/O module has four SAS ports using industrial standard Mini SAS HD connectors (SFF-8644), one port supports Wake-on SAS feature for upstream and other ports can be either upstream or downstream for cascading additional JBODs.
Expander Management Features
  • Self-configuring expander supports full SAS domain topology management
  • T-10 based zoning support is applicable for non-VTrak E-Class configurations
  • End Device Frame Buffering (aggregate bandwidth over multiple slow devices e.g. 6 Gb/s and 3 Gb/s)
  • Smart cable support to detect cable type and tune PHY automatically for maximum reliability
  • SMP – SAS Management Protocol
  • In-band access to Expander and PHY information
  • Statistic counters and performance monitors
  • SES EM– SES Enclosure Management (ANSI T10 SES 2 Compliant)
  • SCSI SES command set over virtual SSP device
  • Wake-on-SAS support, Wake-on-LAN support
Management Interfaces
  • LED status indicator support for drives, FRU and enclosure environmentals
  • In–band SES enclosure management alerts user to out of spec operation: thermal condition, voltage condition or component failures, protecting data and hardware
  • Full subsystem management CLI through out–of–band RS232 serial port
Enclosure Protocol and Management
  • ANSI T10 SES 2, SMP (SES over in-band SAS)
  • Persistence Error Logging with NVRAM, Extensive Service Report File, VPD (Vital Product Data) on Chassis and FRUs
Voltage
100-240 Vac Auto-Ranging
Current (Maximum)
9A @ 100 Vac; 4A @ 240 Vac
Power Conversion Efficiency
>80% @ 110V (>20% load), >80% @ 240V (>20% load) Temperature Range
Temperature Range
Operational: 5° to 40°C
Non-Operational: -40° to 60°C
Humidity
Operational: 10% to 90% (Non-Condensing)
Non-Operational: 5% to 95% (Non-Condensing)
Acoustic Noise Levels
55 dB (Typical), 65 dB (Maximum)
Shock
Operational: 5G, 11ms duration
Non-Operational: 10G, 11ms duration
Vibration
Operational: 0.3G, 5 to 500 Hz
Non-Operational: 1G, 5 to 500 Hz
Safety and EMI Certification
EMC Class A: CE, FCC, VCCI, BSMI, RCM and KC
Safety: IEEE CB, UL/cUL and TUV
Environment Standards
RoHS, GreenPC, WEEE
Power Supply
Efficient 80PLUS GOLD Certified redundant PSU
Dimensions
131mm x 446.7mm x 507mm
(5.2” x 17.6” x 19.96”)
Weight
25Kg(56 lbs) w/o drives
38.3Kg (84 lbs) w/ drives
Warranty
3-year full system limited warranty, optional extended warranty, onsite parts replacement program
Support
24/7 web and phone support, 24/7 access to PROMISE site Software, firmware, and compatibility list

FEATURES

  • VTrak J5000 Series 12 Gb/s SAS subsystems deliver a high performance SAS solution with advanced enterprise level reliability and functionality
  • 24 hot-swappable 3.5” (LFF) drive bays in a robust 4U chassis
  • Supports SAS and SATA drives simultaneously and is compatible with leading SAS & SATA drives, HBAs, and RAID controllers
  • Dual active/active SAS JBOD I/O modules provide redundant data paths to ensure data availability and redundant hot-swappable Field Replaceable Units (FRUs)
  • Flexible wide-port configuration: Four x4 wide ports, two x8 wide ports or one x16 wide port per IOM and SES-2 compliant enclosure management

SPECIFICATIONS

Form Factor
4U/24 Bay
Drive Support
  • Up to 24 3.5” drives
  • 3/6/12 Gb/s SAS, 3/6 Gb/s SATA HDD and SSD
  • Supports any mix of SAS and SATA drives simultaneously in the same enclosure
External I/O Ports (per controller)
Each SBB 2.0 I/O module has four SAS ports using industrial standard Mini SAS HD connectors (SFF-8644), one port supports Wake-on SAS feature for upstream and other ports can be either upstream or downstream for cascading additional JBODs.
Expander Management Features
  • Self-configuring expander supports full SAS domain topology management
  • T-10 based zoning support is applicable for non-VTrak E-Class configurations
  • End Device Frame Buffering (aggregate bandwidth over multiple slow devices e.g. 6 Gb/s and 3 Gb/s)
  • Smart cable support to detect cable type and tune PHY automatically for maximum reliability
  • SMP – SAS Management Protocol
  • In-band access to Expander and PHY information
  • Statistic counters and performance monitors
  • SES EM– SES Enclosure Management (ANSI T10 SES 2 Compliant)
  • SCSI SES command set over virtual SSP device
  • Wake-on-SAS support, Wake-on-LAN support
Management Interfaces
  • LED status indicator support for drives, FRU and enclosure environmentals
  • In–band SES enclosure management alerts user to out of spec operation: thermal condition, voltage condition or component failures, protecting data and hardware
  • Full subsystem management CLI through out–of–band RS232 serial port
Enclosure Protocol and Management
  • ANSI T10 SES 2, SMP (SES over in-band SAS)
  • Persistence Error Logging with NVRAM, Extensive Service Report File, VPD (Vital Product Data) on Chassis and FRUs
Voltage
100-240 Vac Auto-Ranging
Current (Maximum)
9A @ 100 Vac; 4A @ 240 Vac
Power Conversion Efficiency
>80% @ 110V (>20% load), >80% @ 240V (>20% load) Temperature Range
Temperature Range
Operational: 5° to 40°C
Non-Operational: -40° to 60°C
Humidity
Operational: 10% to 90% (Non-Condensing)
Non-Operational: 5% to 95% (Non-Condensing)
Acoustic Noise Levels
55 dB (Typical), 65 dB (Maximum)
Shock
Operational: 5G, 11ms duration
Non-Operational: 10G, 11ms duration
Vibration
Operational: 0.3G, 5 to 500 Hz
Non-Operational: 1G, 5 to 500 Hz
Safety and EMI Certification
EMC Class A: CE, FCC, VCCI, BSMI, RCM and KC
Safety: IEEE CB, UL/cUL and TUV
Environment Standards
RoHS, GreenPC, WEEE
Power Supply
Efficient 80PLUS GOLD Certified redundant PSU
Dimensions
174.4mm x 446.7m x 507mm
(6.87” x 17.6” x 19.96”)
Weight
29.6Kg(64 lbs) w/o drives
49.6Kg (108 lbs) w/ drives
Warranty
3-year full system limited warranty, optional extended warranty, onsite parts replacement program
Support
24/7 web and phone support, 24/7 access to PROMISE site Software, firmware, and compatibility list

Request for more information by contacting us now

Email: [email protected] or Call: 03 8806 8356
