Product SKUs

• SuperServer SYS-421GE-TNRT

Motherboard

• Super X13DEG-OA

Processor

• CPU
  • Dual Socket E (LGA-4677)
  • 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
• Core Count
  • Up to 64C/128T; Up to 320MB Cache per CPU
• Note
  • Supports up to 350W TDP CPUs (Air Cooled)
  • Supports up to 385W TDP CPUs (Liquid Cooled)

GPU

• Max GPU Count: Up to 10 double-width or 10 single-width GPUs
• Supported GPU:
  • NVIDIA PCIe: H100, L40, RTX A4000, RTX 6000 Ada Generation, L40S, A100, A10
  • Intel PCIe: Data Center GPU Max 1100
    View GPU Options
• CPU-GPU Interconnect
  • PCIe 5.0 x16 Switch Dual-Root
• GPU-GPU Interconnect
  • NVIDIA® NVLink® Bridge (optional), Intel® Xe Link Bridges

System Memory

• Memory
  • Slot Count: 32 DIMM slots
  • Max Memory (1DPC): Up to 4TB 5600MT/s ECC RDIMM
  • Max Memory (2DPC): Up to 8TB 4400MT/s ECC DDR5 RDIMM
    View Memory Options
• Memory Voltage: 1.1V

On-Board Devices

• Chipset: Intel® C741
• Network Connectivity: 2 RJ45 10GbE with Intel® X710-AT2
  View AIOM Options
  View AOC Options

Input / Output

• Video: 1 VGA port(s)

System BIOS

• BIOS Type: AMI 32MB SPI Flash EEPROM

Management

• Software
  • SuperCloud Composer
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • Supermicro SuperDoctor® 5 (SD5)
  • Super Diagnostics Offline (SDO)
  • Supermicro Thin-Agent Service (TAS)
  • SuperServer Automation Assistant (SAA) New!
• Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management

Security

• Hardware
  • Trusted Platform Module (TPM) 2.0
    Silicon Root of Trust (RoT) – NIST 800-193 Compliant
• Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown

PC Health Monitoring

• CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
  • 8+4 Phase-switching voltage regulator
• FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
• Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors

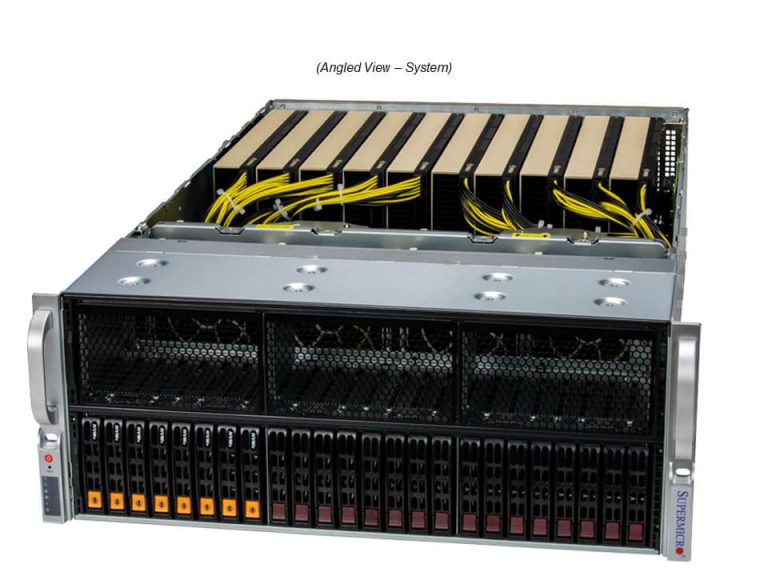

Chassis

• Form Factor: 4U Rackmount
• Model: CSE-418G2TS-R5K40P

Dimensions and Weight

• Height: 7″ (178 mm)
• Width: 17.2″ (437 mm)
• Depth: 29″ (737 mm)
• Package: 26.57″ (H) x 27″ (W) x 41″ (D)
• Weight:
  • Gross Weight: 100 lbs (45.3 kg)
  • Net Weight: 65.5 lbs (29.7 kg)
• Available Color
  • Black Front & Silver Body

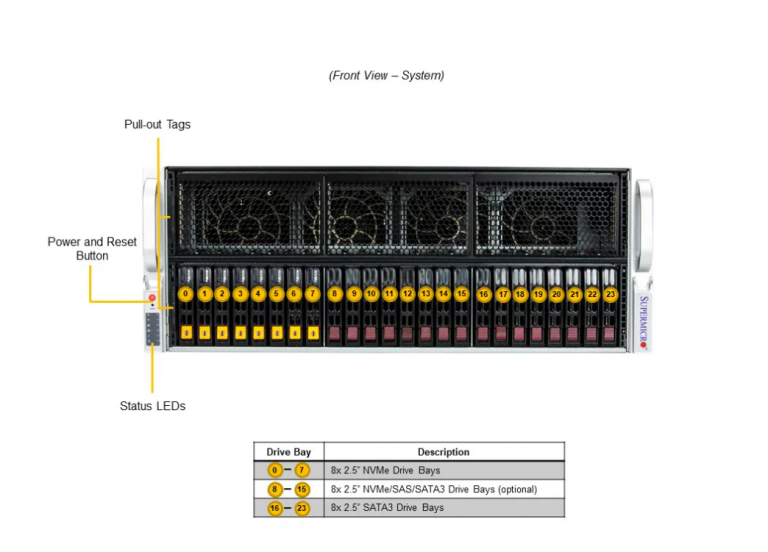

Front Panel

• LED
  • Hard drive activity LED
  • Network activity LEDs
  • Power status LED
  • System Overheat & Power Fail LED
• Buttons
  • Power On/Off button
  • System Reset button

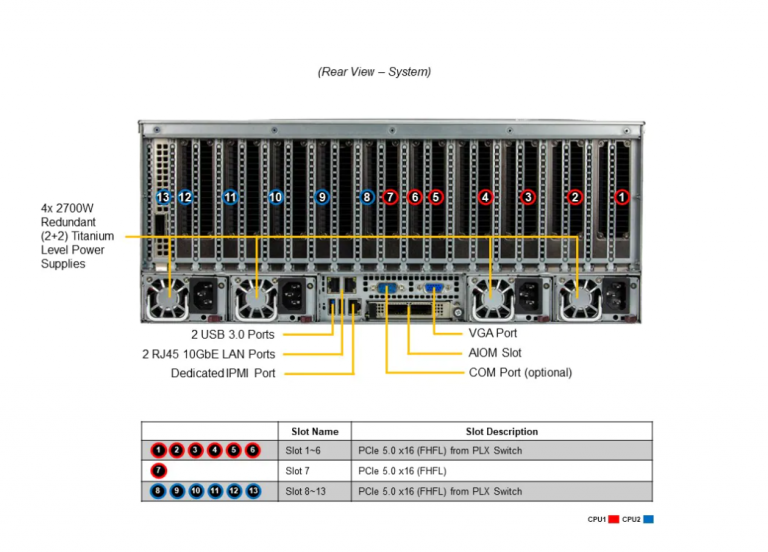

• Expansion Slots
  • PCI-Express (PCIe) Configuration
    • Default
      13 PCIe 5.0 x16 FHFL slots
      View AOC Options

Drive Bays / Storage

• Drive Bays Configuration: Default: Total 16 bays
  • 8 front hot-swap 2.5″ NVMe drive bays
  • 8 front hot-swap 2.5″ SATA drive bays
• Option A: Total 24 bays
  • 8 front hot-swap 2.5″ NVMe drive bays
  • 8 front hot-swap 2.5″ NVMe* drive bays
  • 8 front hot-swap 2.5″ SATA drive bays
    (*NVMe support may require additional storage controller and/or cables, please see the optional parts list for details)
    View NVMe Options
    View Drive Options
• M.2
  • 2 M.2 NVMe slots (M-key)
    View M.2 Options

System Cooling

• Fans: 8 heavy duty fans with optimal fan speed control

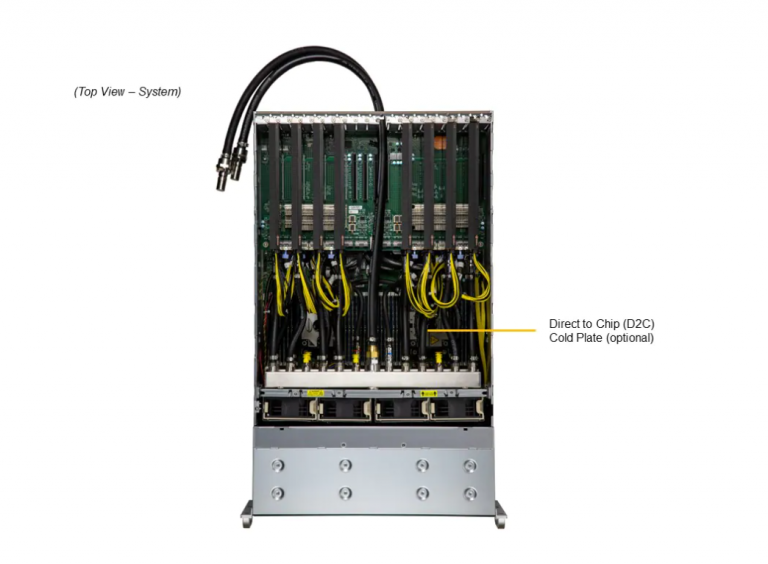

• Liquid Cooling: Direct to Chip (D2C) Cold Plate (optional)

Power Supply

• 4x 2700W Redundant Titanium Level (96%) power supplies
• Dimension (WxHxL): 73.5 x 40 x 203 mm
• AC Input
  • 2700W: 200-240Vac
  • 2700W: 200-240Vac / 50-60Hz
  • 2700W: 240-240Vdc / 50-60Hz (for CQC only)
• +12V
  • Max: 225A / Min: 0A (200Vac-240Vac)
  • Max: 225A / Min: 0A (240Vdc-240Vdc)
• 12V SB
  • Max: 3.5A / Min: 0A
  • Max: 4A / Min: 0A
• Output Type
  • Backplanes (gold finger)

Operating Environment

• Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
