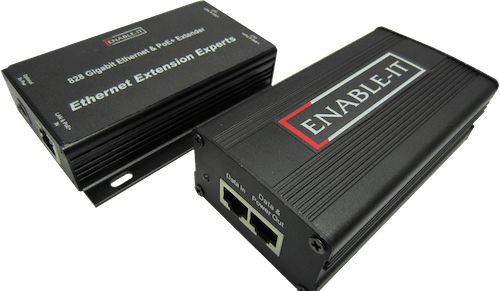

828P Gigabit PoE Extender

The Enable-IT™ 828P Gigabit PoE Extension Solution is ideal for deploying your PoE Devices like IP PoE Cameras, PoE Sensors and PoE WiFi Access Points. These are the world’s 1st and only Weatherproof copper Gigabit solution in the industry. This Full Gigabit solution comes with a high powered Enable-IT 360 56V 61W Gigabit PoE Injector. that powers the 828P Gigabit PoE Extender and your PoE devices with 2-pair and 4-pair PoE power. The single PoE injector can even power up the 828P and 3 other 828 units and your PoE device up to 2,000ft (600m) all from one 120 ~ 260V AC outlet – Nothing is more cost effective or simple to install.

The three LAN port design allows for deployment of two separate PoE devices. By default both output ports supply PoE power, however the unit can be configured at time of ordering for disabling PoE output on either or both output ports.

The Enable-IT 828P Gigabit PoE Extender is a very cost-effective solution eliminates many of the limitations and high costs for extending LAN cabling today. For Gigabit throughput make sure to leverage your existing or new CAT5e or better rated cabling

Both 2-pair and 4-pair PoE output is standard to support your high powered PoE Devices.

You can also daisy chain (4) 828 units to reach 2,000ft (600m) to power a PoE devices easily.

  • Extends Full Duplex Gigabit Ethernet and PoE SIX TIMES beyond the IEEE barrier of 328ft (100m) with PoE 56V over CAT5e/6 or better wiring.
  • Three LAN port design allows for deployment of (2) separate PoE devices up to 800ft (240m) or up to 2,000ft (600m) if used in a series.
  • Rapid LAN style installation RJ-45 LAN Interfaces – no programming required.
  • Both 2-pair and 4-pair PoE output is standard to support your high powered PoE Devices.
  • Cisco / Motorola reverse polarity PoE compatible
  • Ideal for deploying High Definition IP Cameras requiring Gigabit throughput at distance.
  • Supports VoIP (Voice over IP).
  • Network equipment independence – Transparent to protocols, applications and MAC addresses.
  • Sustained full-duplex Gigabit Ethernet service delivery end to end.



This kit includes the following:
(1) Enable-IT 828P Gigabit PoE Ethernet Extender Unit
(1) Enable-IT 360 56V 61W Gigabit PoE Injector
(2) 10′ Black Ethernet patch cords
(1) Enable-IT 828P Quickstart Guide

Power

Enable-IT 360 56V 61W Gigabit PoE Injector- 120 ~260v AC Input 56V DC 61W Output
Enable-IT 828P uses PoE input Power and consumes less than 5v DC at startup and passes the rest through

Data Rate

Gigabit full-duplex Ethernet Data & PoE (802.3af) or PoE (802.3at)

Interface

Ethernet: (3) LAN RJ-45 Standard 10/100/1000BaseTX, MDI-X, Autonegotiate ports
Interlink: RJ-45 (1-Pair)

Dimensions

Height 1.4″ (35mm) Depth 2″ (51mm) Width 3″ (76mm)

Environment

Operational Temperature: -49°F to 168°F (-45°to 76°C)
Humidity: 5% to 95%, non-condensing

Enclosure

Ruggedized metal wallmount casing with Triple Gigabit LAN Network ports
