SuperServer 5019C-MHN2

Key Applications

  • General purpose (Web Hosting, Mail Hosting, Unified Communications, Data Backup)
  • Access Control Systems Server
  • Video Surveillance Recording Server (up to 64 camera range)*


* The ideal camera ranges were output of fully populated enclosure by pure recording under 30FPS, H.264, 5Mbps Bitrate and 1080P resolution.

Features:

  • Compact 1RU Rackmount Server (483mm short depth)
  • The 9th generation Intel® Core™ i7 processor with 8 cores and 8 threads processing power.
  • Intel C246 chipset with support up to 128GB Ram and 5x SATA3 (6 Gbps) ports; RAID 0,1,5,10
  • 1x 240GB Enterprise SSD with preloaded Windows 10 Pro (or Windows 2019/2022 Essential or Standard Server, upon request)

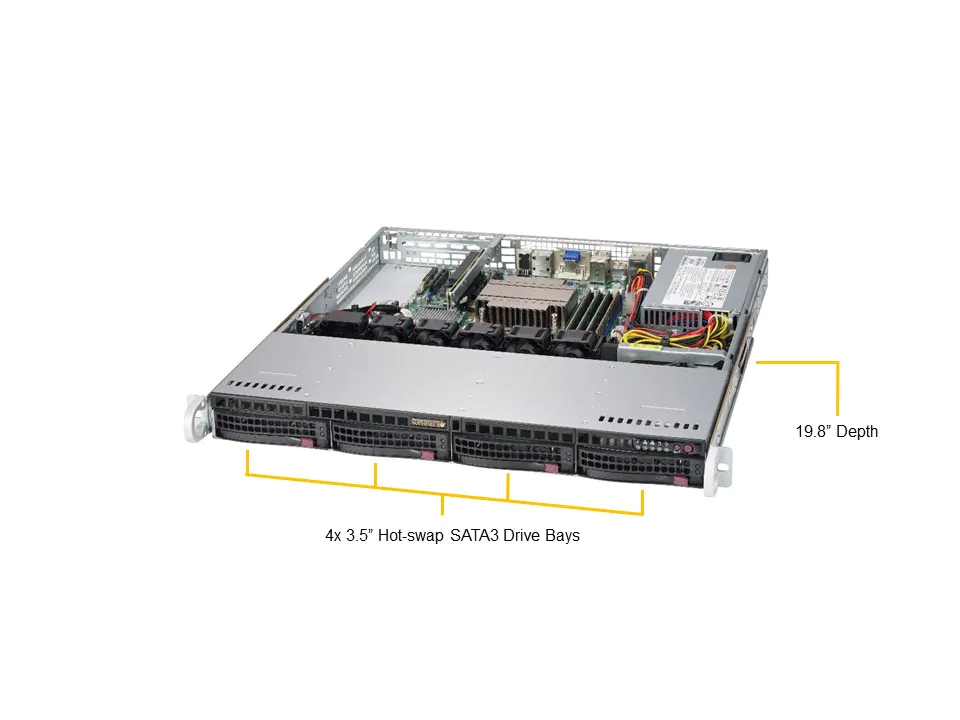

  • 4x Hot-swap front 3.5″ drive bays
  • Support RAID 0, 1, 5, 10
  • 350W 80+ Platinum Level Certified Power Supply Unit (Single / non-redundant)
  • 1x Dedicated IPMI LAN Port

Specifications:

Processor: Intel i7-9700E (8C/8T)
Ram: 1x 16GB DDR4-2666MHz ECC (support up to 4x DIMM slots)
GPU: Integrated Intel® UHD Graphics 630
Video Output: 1x VGA, 1x DVI, 2x DP (max support 3x independent displays)
OS Boot Drive: 240GB Enterprise SATA M.2 SSD
OS: MS Windows 10 Professional (or Windows Server 2019 or 2022, upon request)
Networking: 2x Gigabit LAN Ports, 1x IPMI LAN Port
Power Supply: 350W 80+ Platinum Level Certified w/ PFC (single / non-redundant)
Dimensions: 437mm(L) x 43mm(H) x 483mm(D)
Form Factor: 1U Rack Mount
Warranty: 3 Years Return To Base


I/O ports:
SATA: 5x SATA3 (6Gbps) ports; RAID 0, 1, 5, 10
LAN: 2x RJ45 Gigabit Ethernet LAN ports, 1x RJ45 Dedicated IPMI LAN port
USB: 2x USB 3.1 ports (rear), 2x USB 2.0 ports (rear)

Video: VGA D-Sub Connector port, 1 DVI – I port, 2 DP (DisplayPort) ports, 3x independent displays
Serial Port / Header: 1x COM port (header)
TPM: 1x TPM 2.0 Header

Front Panel
Buttons: Power On/Off button, System Reset button
LEDs: Power LED, Hard drive activity LED, Network activity LEDs, System Information LED

Expansion Slots
PCI-Express: 1x PCI-E 3.0 x16 slot
M.2 Interface: 1x SATA/PCI-E 3.0 x4 and 1x PCI-E 3.0 x4, M.2 Form Factor: 2280/22110, M.2 Key: M-Key

Drive Bays: 4x Hot-swap SATA 3.5″ drive bays **

System Cooling: 5x 40x28mm PWM fans

Dimensions and Weight

  • Height: 1.7″ (43mm)
  • Width: 17.2″ (437mm)
  • Depth: 19.8″ (483mm)
  • Package: 8.5″ (H) x 23.4″ (W) x 29.7″ (D)
  • Weight: Gross Weight: 32 lbs (14.52 kg), Net Weight: 18 lbs (8.16 kg) – before HDDs


Operating Environment / Compliance

  • RoHS Compliant
  • Operating Temperature: 0°C to 40°C (32°F to 104°F)
  • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)

** HDD Disk Capacity based on server configurations upon request
