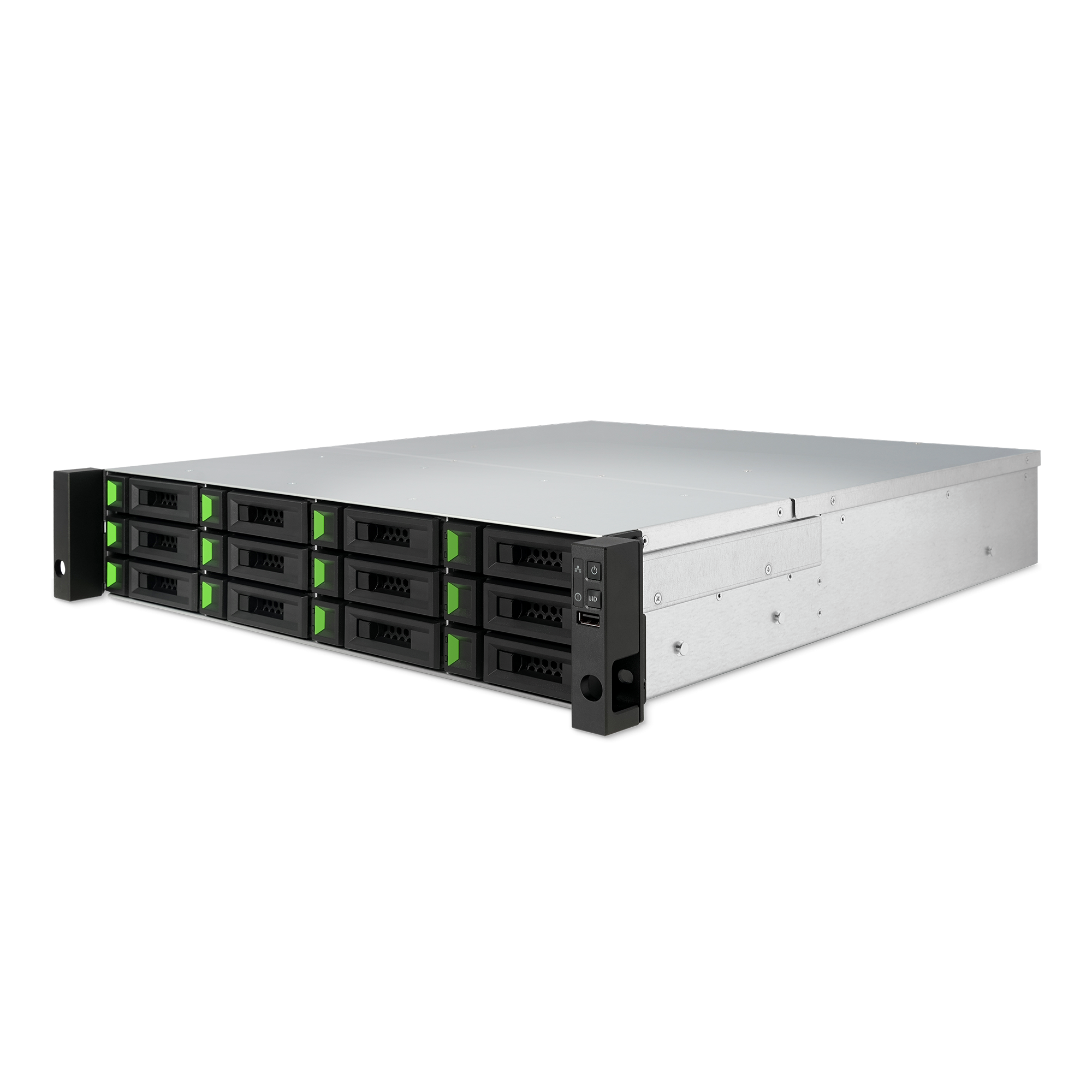

XCubeSAN
CPU
Intel® Xeon® Quad-Core Processor
RAM
8GB DDR4 ECC DIMM (Max 128GB)
Fastest Interface
12Gb SAS 3.0 Controller
Versatility Performance
Scalable Host Card Design
XFinder
XFinder is a desktop utility that searches for QSAN XCubeSAN devices in the local area network.
Liquid Crystal Monitor
Portable USB LCM (LCD Module) can help you identify the management port IP address.
RAID EE Technology
Add more disks to reduce rebuild time.
High Secured Data Requirement
Supported the upper-security level, SED and ISE encryption technology.
Virtualization for Enterprise
Let VM storage faster and more efficiently.
Fastest 12Gb SAS 3.0
12Gb SAS 3.0 is the latest and fastest drive interface available. It doubles the data transfer rate of SAS 2.0 (6Gb) while remaining backward compatible with 6Gb SAS 2.0 drives. The benefit is that you have the flexibility to purchase less expensive 6Gb SAS drives for initial installation or leverage investment of your existing 6Gb SAS drives and have a peace of mind knowing you can migrate to 12Gb SAS 3.0 by purchasing only new drives.
Fastest 12Gb SAS 3.0
12Gb SAS 3.0 is the latest and fastest drive interface available. It doubles the data transfer rate of SAS 2.0 (6Gb) while remaining backward compatible with 6Gb SAS 2.0 drives. The benefit is that you have the flexibility to purchase less expensive 6Gb SAS drives for initial installation or leverage investment of your existing 6Gb SAS drives and have a peace of mind knowing you can migrate to 12Gb SAS 3.0 by purchasing only new drives.
Modularized Controller
Each SAN controller has two host card slots that can be configured as iSCSI SAN, Fibre Channel, or a mix of both. There are various types of optional host cards available to match your specific needs, including 16Gb Fibre Channel, 10GbE iSCSI, and 1GbE iSCSI. You can choose the appropriate host card for your initial requirement and as your business grows you can add extra host cards to enhance system connectivity.
1. Enclosure Power Button / LED
2. UID (Unique Identifier) Button / LED
3. Enclosure Access LED
4. Enclosure Status LED
5. USB Port
6. Disk Drive Power LED
7. Disk Drive Status LED
8. Power Supply Unit – PSU Indicator and Beep Off Button
9. Controller Status LED
10. Master / Slave LED (only for dual controllers)
11. Dirty Cache LED
12. UID (Unique Identifier) LED
13. Host Card Slot 1 (host card is an optional part)
14. Host Card Slot 2 (host card is an optional part)
15. Buzzer Mute Button
16. Reset to Factory Default Button
17. Management Port
18. Console Port
19. Service Port
20. USB Port
21. 10GbE iSCSI Port
22. 12Gb/s SAS Wide Port
| Architecture | Dual (Active-Active) |
| Storage OS | SANOS 4 |
| CPU | |
|---|---|
| Processor | Intel® Xeon® |
| CPU Architecture | 64-bit |
| CPU Frequency | Quad-Core (8-core processor models are also available) |
| Memory | |
| System Flash | – |
| Memory Module Pre-installed | 8GB DDR4 ECC DIMM |
| Total Memory Slots | 4 |
| Memory Expandable up to | 128GB |
| Notes | Per Controller |
| Storage | |
| Drive Bays | 3.5″ Slot x 12 |
| Maximum Drive Bays with Expansion Unit | 612 |
| Compatible Drive Type | 3.5″ SAS HDD / SAS SED HDD 3.5″ NL-SAS HDD / NL-SAS SED HDD 2.5″ SAS SSD / SAS SED SSD 2.5″ SATA SSD / SATA SED SSD (*) 2.5″ SAS HDD / SAS SED HDD 2.5″ NL-SAS HDD / NL-SAS SED HDD |
| Drive Interface | SAS 12Gb/s |
| Maximum Internal Raw Capacity | 168TB |
| Maximum Raw Capacity with Expansion Units | 8,568TB |
| Hot Swappable Drive | ✓ |
| Notes |
|
| External Port | |
| USB 2.0 Port | 1 (Front) |
| USB 3.0 Port | – |
| HDMI Port | – |
| Others | UPS Port x 1 Console Port x 1 |
| Notes | – |
| Connectivity Port | |
| 1GbE RJ45 LAN Port | 1 (Onboard Management Port) |
| 10GbE RJ45 LAN Port | 2 (Onboard) 2 iSCSI (Option: HQ-10G2T) |
| 10GbE SFP+ LAN Port | 4 iSCSI (Option: HQ-10G4S2) |
| Thunderbolt 3 | – |
| 16Gb SFP+ Fibre Channel | 4 (Option: HQ-16F4S2) 2 (Option: HQ-16F2S2) |
| Notes | For more information, please refer to accessory book Please refer to the section below for expansion slot specification |
| Expansion Port | |
| 12Gb/s SAS Wide Port | 2 (Onboard) |
| Notes | – |
| PCIe Expansion | |
| Gen3x8 Slot | – |
| Gen3x4 Slot | – |
| Notes | – |
| Host Card Expansion | |
| Gen3x8 Slot | 1 |
| Gen2x4 Slot | 1 |
| Notes | Gen2x4 slot provides 20Gb bandwidth |
| Appearance | |
| Dimension (H x W x D) (mm) | 88 x 438 x 515 |
| Chassis Form Factor | 19″ Rackmount 2U 12 Bay |
| Net Weight (kg) | 16.4 |
| Gross Weight (kg) | 18.8 |
| Notes | – |
| Memory Protection | |
| Cache-to-Flash Module | ✓ |
| Battery Backup Module + Flash Module | ✓ |
| Notes | – |
| Others | |
| System Fan | 4 pcs |
| Replaceable System Fan | ✓ |
| Power Recovery | ✓ |
| Scheduled Power On/Off | – |
| Wake on LAN/WAN | ✓ |
| Power Supply Unit / Adapter | 770W/850W x 2 (80 PLUS Platinum) |
| Redundant Power Supply | ✓ |
| AC Input Power Voltage | 100V-240V |
| Power Frequency | 50-60 Hz, Single Phase |
| Power Consumption | 407W |
| British Thermal Unit | 1,388BTU |
| LCM Support | ✓ |
| Notes | – |
| Environment Temperature | |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -10°C to 50°C |
| Operating Relative Humidity | 20% to 80% non-condensing |
| Non-operating Relative Humidity | 10% to 90% |
| Notes | – |
| Certification | |
| Certifications | CE FCC BSMI VCCI KCC |
| Notes | – |
| Warranty | |
| Standard Warranty | 3 years Battery backup module / Super capacitor module : 1 year |
| Notes | – |
