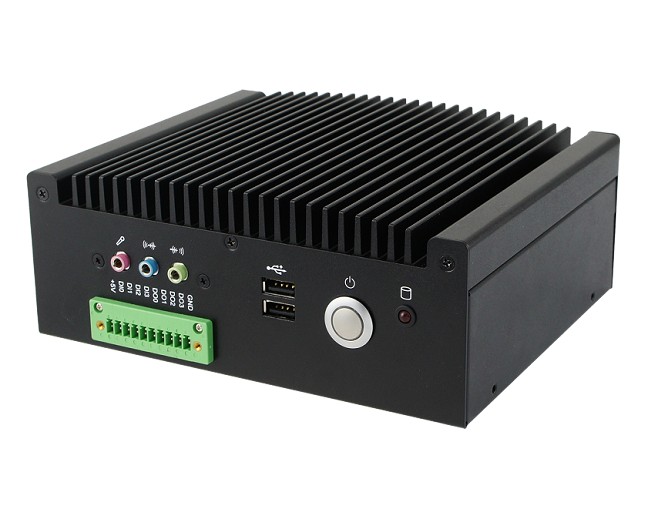

ASB200-916 – Slim Type System with IBASE IB916 3.5” Disk-Size SBC

Embedded Computing

ASB200-916
Slim Type System with IBASE IB916 3.5” Disk-Size SBC

  • Fanless system with IBASE IB916 3.5″ Disk-Size SBC
  • Onboard 6th Gen Intel® Core™ U-series processor
  • iSMART- for auto-scheduler and power resume
  • 12V(-10%) ~ 24V(+10%) DC wide-range power input
  • Supports 1x Mini PCI-E (full-size)
  • Supports 1x 2.5” SATA HDD
  • 4x USB 3.0 DP/HDMI
  • Wall mount kit included
System MainboardIB916AF-7600 / IB916AF-7300 / IB916F-7100
CPU TypeIntel® Core™ i7 7600U processor
Intel® Core™ i5 7300U processor
Intel® Core™ i3 7100U processor
System SpeedUp to 2.8 GHz
Memory2x 4GB DDR4-2133 SO-DIMM Memory, Max.32GB
ConstructionAluminum & Steel
Chassis ColorBlack
Front Panel External I/O1x Power button
2x USB 2.0
1x Audio Jack for Line-out / Line-in / MIC-in
1x HDD LED
1x Digital I/O (4-in / 4-out)
Rear Panel External I/O4x USB 3.0 port
1x HDMI display, 1x DisplayPort output
1x RS232/422/485 port for COM#1
3x RS232 ports for COM#2/COM#3/ COM#4
2x RJ45 Gigabit Ethernet port
1x 3-pin DC-in terminal block type for 12-24V
Expansion Slots1x Full size Mini PCI-E socket (USB 2.0 + SATA)
Storage / M.21x 2.5″ HDD or SSD
MountingDesktop or wall mount (wall mount kit included)
VESA mount (option)
Weight1.8kg
Dimensions180mm(W) x 150mm(D) x 66mm(H)
7.09” (W) x 5.91” (D) x 2.6” (H)
Operating Temperature0°C~45°C (32°F~113°F) (With HDD)
-20°C~60°C (-4°F~140°F) (With SSD)
Storage Temperature-20°C to 80°C (-4°F to 176°F)
Relative Humidity5~90% @ 45°C, (non-condensing)
Vibration-40°C~85°C (-40°F~185°F)
5%~90%@45°C (non-condensing)
ShockOperating : 20G / 11ms
Non-operating : 40G / 11ms
CertificationCE / LVD / FCC Class B
ASB200-916-i7Fanless chassis with IB916AF-7600, Intel® i7-7600U 2.8GHz CPU, 4x COM, 2x 4GB DDR4 memory, 1x 2.5” 64GB MLC SSD, (w/o 84W power adaptor and VESA mount bracket
ASB200-916-i5Fanless chassis with IB916AF-7300, Intel® i5-7300U 2.6GHz CPU, 4x COM, 2x 4GB DDR4 memory, 1x 2.5” 64GB MLC SSD, (w/o 84W power adaptor and VESA mount bracket)
ASB200-916-i3Fanless chassis with IB916F-7100, Intel® i3-7100U 2.4GHz CPU, 4x COM, 2x 4GB DDR4 memory, 1x 2.5” 64GB MLC SSD, (w/o 84W power adaptor and VESA mount bracket)
90W power adaptor (optional)90W ([email protected]) power adaptor, DC-jack or bare wire type
Optional AccessoriesWiFi/BT antenna kit
