J2021 is a hand-size edge AI box built with Jetson Xavier NX 8GB module which delivers up to 21 TOPs AI performance, rich set of IOs including USB 3.1 Gen 2 ports(4x), M.2 key E for WIFI, M.2 Key M for SSD, RTC, CAN, Raspberry Pi GPIO 40-pin, and so on, aluminum case, cooling fan, pre-installed JetPack System, as NVIDIA Jetson Xavier NX Dev Kit alternative, ready for your next AI application development and deployment.
reComputer series for Jetson are compact edge computers built with NVIDIA advanced AI embedded systems: J10 (Nano 4GB) and J20 (Jetson Xavier NX 8GB and Jetson Xavier 16GB), where the reComputer J2021 is the Jetson Xavier NX 8GB module carried by reComputer J202 carrier board.
With rich extension modules, industrial peripherals, thermal management, reComputer for Jetson is ready to help you accelerate and scale the next-gen AI product by deploying popular DNN models and ML frameworks to the edge and inferencing with high performance, for tasks like real-time classification and object detection, pose estimation, semantic segmentation, and natural language processing (NLP).
At Seeed Studio, you will find everything you want to work with NVIDIA Jetson Platform – official NVIDIA Jetson Dev Kits, Seeed-designed carrier boards, and edge devices, as well as accessories.
Product | NVIDIA Jetson Xavier NX Developer Kit | reComputer J2012 | reComputer J2021 | reComputer J2022 |
|---|---|---|---|---|
| Module | Xavier NX (not production version) | Xavier NX 16GB (production version) | Jetson Xavier NX 8 GB | Jetson Xavier NX 16GB |
| AI Perf | 21 TOPS | |||
| GPU | 384-core NVIDIA Volta™ GPU | |||
| CPU | 6-core NVIDIA Carmel ARM®v8.2 64-bit CPU 6 MB L2 + 4 MB L3 | |||
| Memory | 8 GB 128-bit LPDDR4x @ 51.2GB/s | 16 GB 128-bit LPDDR4x @ 59.7GB/s | 8 GB 128-bit LPDDR4x @ 59.7GB/s | 16 GB 128-bit LPDDR4x 59.7GB/s |
| Storage | MicroSD (Card not included) | 16 GB eMMC 5.1 | ||
Video encoder | 2x 4K @ 30 | 6x 1080p @ 60 | 14x 1080p @ 30 (H.265/H.264) | 2x 4K60 | 4x 4K30 | 10x 1080p60 | 22x 1080p30 (H.265) 2x 4K60 | 4x 4K30 | 10x 1080p60 | 20x 108p30 (H.264) | ||
Video decoder | 2x 4K @ 60 | 4x 4K @ 30 | 12x 1080p @ 60 | 32x 1080p @ 30 (H.265) 2x 4K @ 30 | 6x 1080p @ 60 | 16x 1080p @ 30 (H.264) | 2x 8K30 | 6x 4K60 | 12x 4K30 | 22x 1080p60 | 44x 1080p30 (H.265) 2x 4K60 | 6x 4K30 | 10x 1080p60 | 22x 1080p30 (H.264) | ||
Gigabit Ethernet | 1*RJ45 Gigabit Ethernet Connector (10/100/1000) | |||
USB | 4 * USB 3.1 Type A Connector; 1 * Micro-USB port for Device mode; | 4 * USB 3.0 Type A Connector; 1 * Micro-USB port for Device mode; | 4 * USB 3.1 Type A Connector； 1* USB Type-C (Device mode) | |
| CSI Camera Connect | 2*CSI Camera (15 pos, 1mm pitch, MIPI CSI-2 ) | |||
| Display | 1*HDMI Type A; 1*DP | |||
| FAN | 1* FAN(5V PWM) | |||
M.2 KEY E | 1*M.2 Key E(WiFi/BT included) | 1*M.2 Key E | ||
M.2 KEY M | 1*M.2 Key M | |||
RTC | – | 1*RTC Socket | RTC 2-pin RTC socket | |
| Multifunctional port | 1* 40-Pin header | |||
Power Requirements | DC Jack 19V 4.74A (MAX 90W) | 12V/5A(Barrel Jack 5.5/2.1mm) | ||
Mechanical | 103 mm x 90.5 mm x 31 mm | 130mm x120mm x 50mm | ||
For both beginners and experts, it is designed to help you to build your next-gen autonomous machine at the edge.
reComputer J20 series, powered by Xavier NX, are ideal for building autonomous applications and complex AI tasks of image recognition, object detection, pose estimation, semantic segmentation, video processing, and many more.
Traffic management
license plate detection
car detection
pedestrian detection
Industry 4.0:
helmet detection, hard hat detection, and custom PPE detection
visual anomaly detection using NVIDIA Deepstream IoT
Retail:
sentiment analysis
retail store items detection
Robotics:
under-ice sensing ROV
warehouse towing robot
Edge AI into the Wild: Wildfire detection
Agriculture: weeding machine, Tractors, Livestock detection
Healthcare: medical imaging analysis
Nearly the same functional design as Jetson Xavier NX Developer Kit

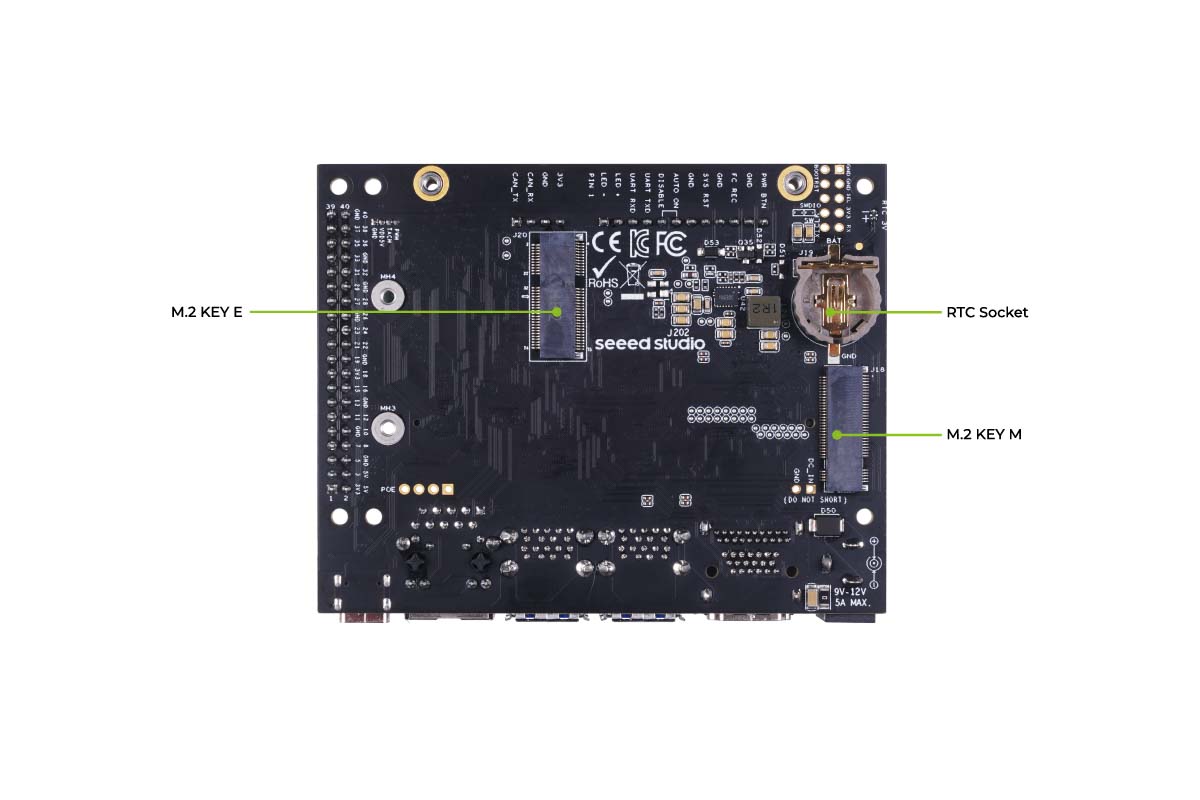

Seeed carrier board for reComputer J2021 is a high-performance, interface rich NVIDIA Jetson Xavier NX compatible carrier board, providing HDMI 2.0, Gigabit Ethernet, USB 3.1 Gen2, M.2 key E, M.2 key M, CSI camera, CAN, GPIO, I2C, I2S, fans, and other rich peripheral interfaces. It has the same functional design and size as the carrier board of NVIDIA® Jetson Xavier™ NX DEVELOPER KIT.
Take advantage of the small form factor, sensor-rich interfaces, and big performance to bring new capability to all your embedded AI and edge systems.
The back screw holes allow you to hang the product as you need. We also provide other editions case like blue, silver, and silver mental, whose stackable structure allows you to stack more middle layers to create rooms very easily.
