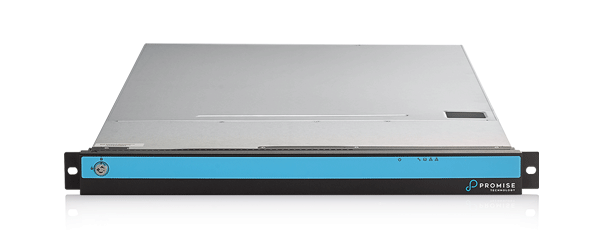

Promise Vess A6120 Series

Analytics Server, Management Server, Recording Server

Purpose-Built for Video Surveillance

The Vess A6120 series is purpose-built as building blocks for the deployment of a complete video surveillance system. Reliable and easy to set up, there are three main specifications for the Vess A6120 series:

  • Vess Orange (A6120-AS) – designed for running intelligent video analytics

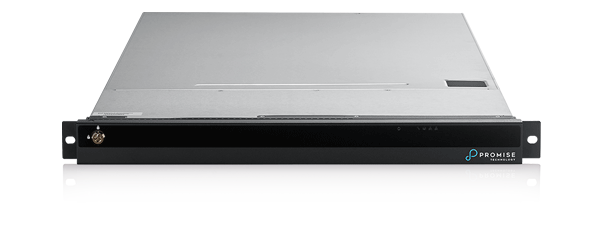

  • Vess Black (A6120-MS) – designed for managing the whole surveillance system
  • Vess Blue (A6120-RS) – designed for general recording purposes



Surveillance Building Blocks

Through the deployments of Vess Orange, Vess Black and Vess Blue together with the entire Vess family of products, security professionals can build their own surveillance system for projects of any size.



Customizable Interfaces and Graphics

Vess A6120 is customizable so it can perform a variety of functions based on your needs. Use the available PCI or PCM cards to create the mix of data and network connections to suit your applications. Promise does provide a recommended set of HBAs and add-in cards for customers to choose from, including 1G Base-T, 10G Base-T, 10G SPF+, SAS expansion, extension RAID boards as well as graphic cards.


Embedded SMARTBOOST™ Technologies

A6120 is equipped with Promise’s SMARTBOOST™ Technologies to optimize the system performance while playing back and writing surveillance video to the system. SMARTBOOST™ Technologies include:

  • Sequential Pattern Recording – increase and stabilize recording performance
  • Predictive Playback – better playback performance
  • Non-Stop Service – non-stop video surveillance services

SPECIFICATIONS

Form Factor
1U 4-bay
Processor
2 x Intel Xeon E5-2620 v4
Memory
16/32GB DDR4 ECC
Internal Storage
M.2 64G
SSD
0/2 (optional)
HDD
4 x 3.5” SATA (SAS optional)
Storage Expansion
iSCSI and JBOD
RAID Levels
0,1,1E,3,5,6,10(0+1), 30,50,60
RAID Stripe Size Support
64K, 128K, 256K, 512K and 1MB
Storage Expansion
Up to 112 HDDs per node
Max LUNs
256 logical drives per controller
Networking
1GbE x 4
(Optional: 10G BaseT/SFP+/FC x 2)
Power Supply
Dual 650W Platinum
Dimensions
710mm x 430mm x 43.5 mm
System Cooling
5 swappable fans
Preloaded OS
Windows Server 2012R2 Standard
Supported OS (64-bit)
Windows Server 2012 R2 Standard, Windows 10
Management Tools/Interface
GUI/SNMP via Ethernet/CLI&CLU via Ethernet or Graphics/OPAS Service via USB/SDK or API for integration
Safety Certification
FCC/CE/VCCI/RCM/BSMI/CB/KCC
Warranty
3-year Limited Warranty
Accessories
Sliding Rail, 8GB DDR4 ECC Memory

SPECIFICATIONS

Form Factor
1U 4-bay
Processor
1 x Intel Xeon E5-2620 v4
Memory
8GB DDR4 ECC
Internal Storage
M.2 64G
HDD
4 x 3.5” SATA (SAS optional)
Storage Expansion
iSCSI and JBOD
RAID Levels
0,1,1E,3,5,6,10(0+1), 30,50,60
RAID Stripe Size Support
64K, 128K, 256K, 512K and 1MB
Storage Expansion
Up to 112 HDDs thru iSCSI & JBOD
Max LUNs
256 logical drives per controller
Networking
1GbE x 2
(Optional: 10G BaseT/SFP+/FC x 2)
Power Supply
Dual 650W Platinum
Dimensions
710mm x 430mm x 43.5 mm
System Cooling
5 swappable fans
Preloaded OS
Windows Server 2012R2 Standard
Supported OS (64-bit)
Windows Server 2012R2 Standard, Windows 10
Management Tools/Interface
GUI/SNMP via Ethernet/CLI&CLU via Ethernet or Graphics/OPAS Service via USB/SDK or API for integration
Safety Certification
FCC/CE/VCCI/RCM/BSMI/CB/KCC
Warranty
3-year Limited Warranty
Accessories
Sliding Rail, 8GB DDR4 ECC Memory

SPECIFICATIONS

Form Factor
1U 4-bay
Processor
1 x Intel Xeon E5-2603 v4
Memory
8GB DDR4 ECC
Internal Storage
M.2 64G
HDD
4 x 3.5” SATA (SAS optional)
Storage Expansion
iSCSI and JBOD
RAID Levels
0,1,1E,3,5,6,10(0+1), 30,50,60
RAID Stripe Size Support
64K, 128K, 256K, 512K and 1MB
Storage Expansion
Up to 112 HDDs thru iSCSI & JBOD
Max LUNs
256 logical drives per controller
Networking
1GbE x 2
(Optional: 10G BaseT/SFP+/FC x 2)
Power Supply
Dual 650W Platinum
Dimensions
710mm x 430mm x 43.5 mm
System Cooling
5 swappable fans
Preloaded OS
Windows 10
Supported OS (64-bit)
Windows 10, Windows Server 2012 R2 Standard
Management Tools/Interface
GUI/SNMP via Ethernet/CLI&CLU via Ethernet or Graphics/OPAS Service via USB/SDK or API for integration
Safety Certification
FCC/CE/VCCI/RCM/BSMI/CB/KCC
Warranty
3-year Limited Warranty
Accessories
Sliding Rail, 8GB DDR4 ECC Memory
