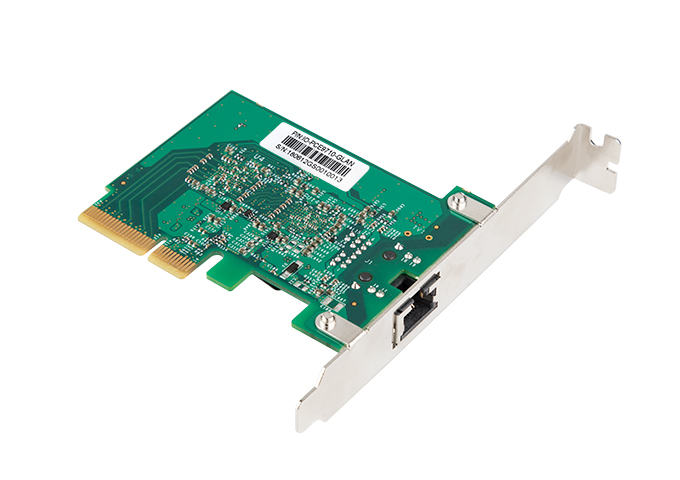

10GBASE-T PCI-e Ethernet Network Card

Part# IO-PCE9710-GLAN

  • PCI Express Rev 2.0 specification x4, x8, x16 Interface
  • NBASE-T Alliance draft specification compliant
  • 10G/5G/2.5G/1000M/100M auto negotiation support
  • Supports Jumbo frame (9K)
  • Supports RFC2819 RMON MIB statistics
  • Supports IEEE 802.3ad Link Aggregation.
  • Full IEEE Std 802.3ae Compliant
  • Supports IEEE 802.3az (EEE)
  • Supports IEEE 802.1q VLAN
  • Supports Multicast
  • Operating Temperature:0ºC to 70ºC
  • Storage Temperature:-40ºC to 85ºC
  • Power consumption (Full bidirectional traffic, 100m cable):
    • 10G speed: 6.1W / 5G speed: 3.6 W /
      2.5G speed: 3.0W / 1G speed: 2.7W / 100M speed: 2.5W

Package Contents

  • 1 x PCI Express 10 Gigabit Ethernet Network Card
  • 1 x User Manual
  • 1 x Software Driver CD
  • 1 x Low Profile
  • PC Motherboard with PCI-Express x4 Card Slot or Larger
  • OS SUPPORTED:
    • Windows Server 2008 R2, 2012 R2, 2016
    • Windows 7, 8, 8.1, 10 32 and 64-bit systems
    • Linux 2.6, Linux 3.x, Linux 4.x 32 and 64-bit systems
    • VMware® ESXi 6.0, ESXi 6.5
    • Microsoft Hyper-V
    • Apple MacOS 10.12 or later
