Home » TGC 19” Rack-mount Server Chassis » Rack Mountable Server Chassis Case 2U 390mm Short Depth with ATX PSU Window – no PSU

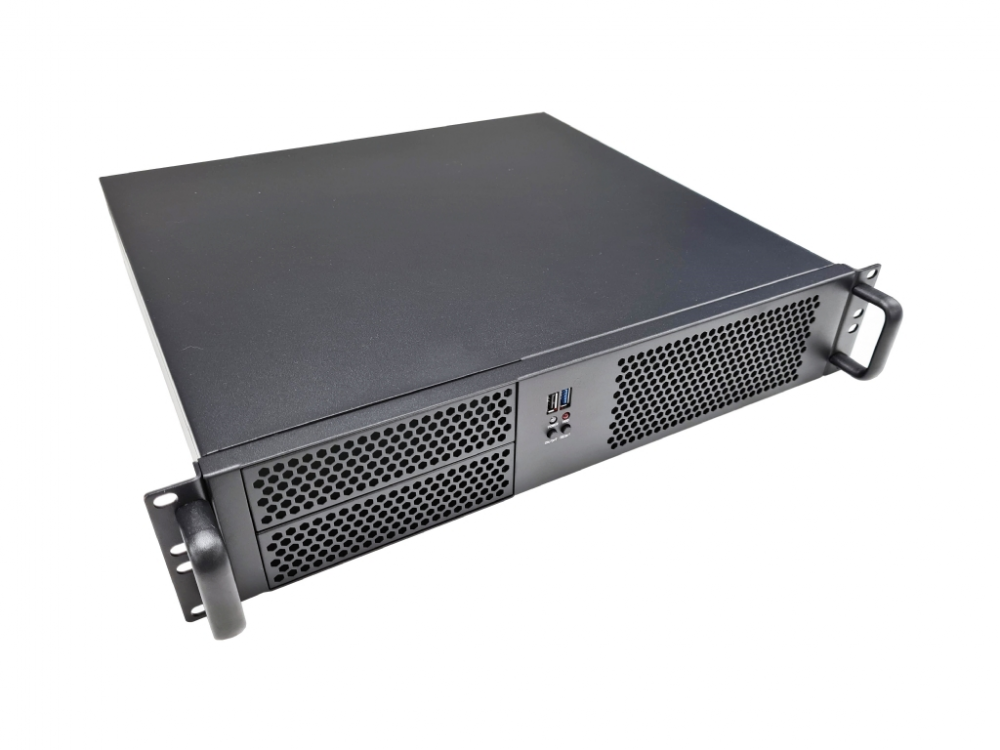

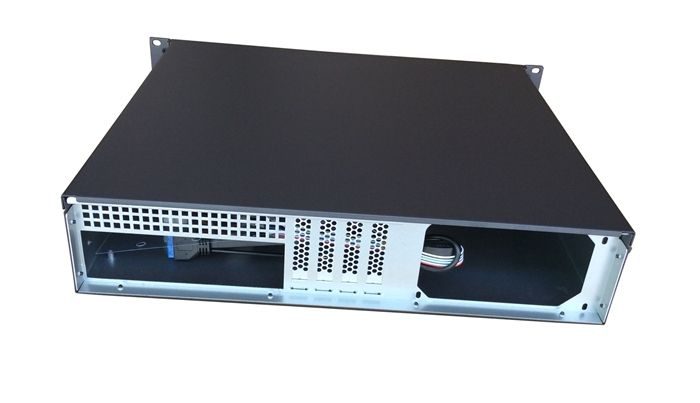

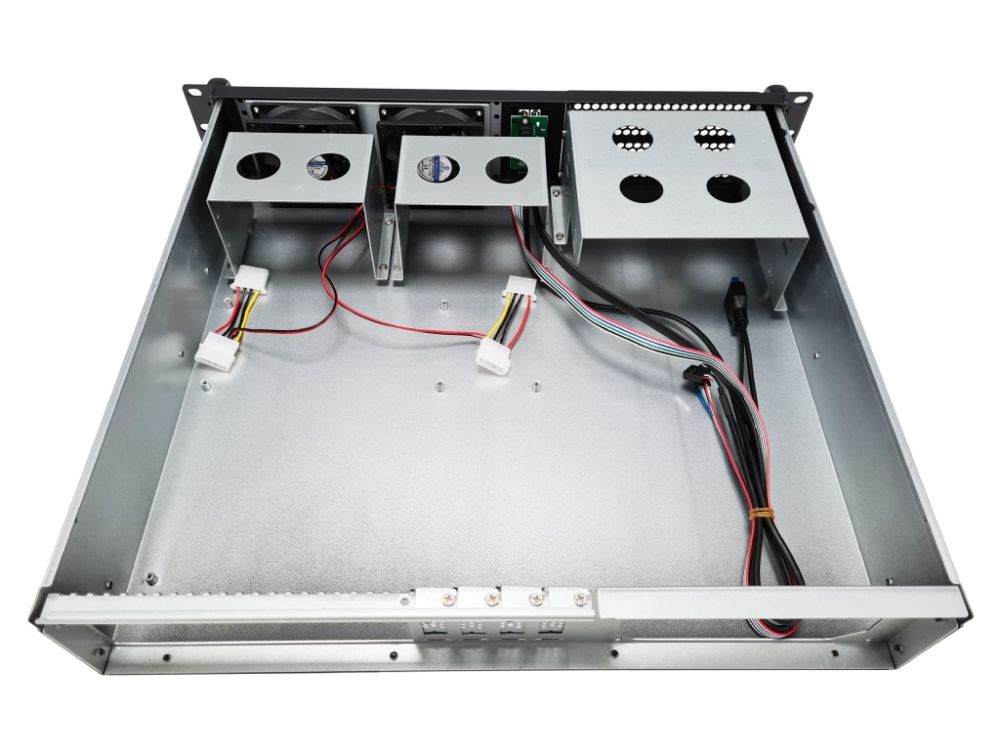

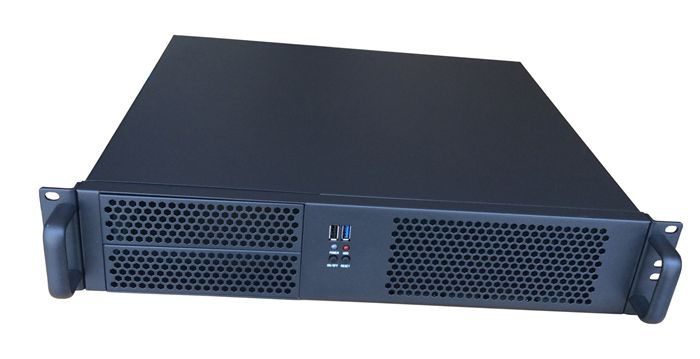

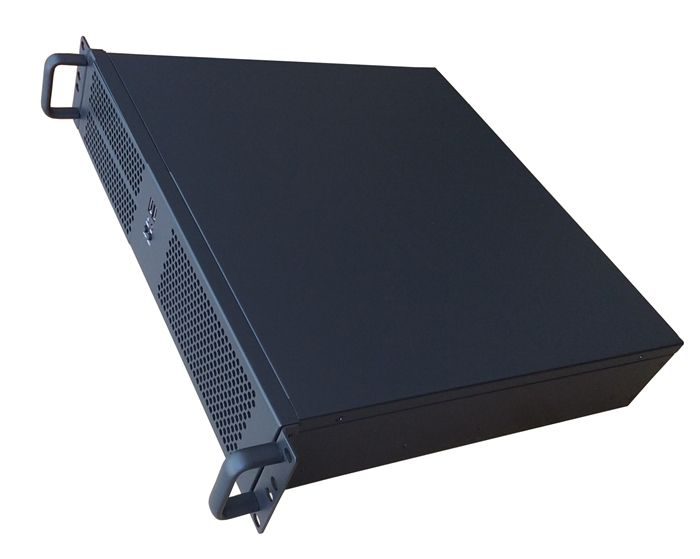

Rack Mountable Server Chassis Case 2U 390mm Short Depth with ATX PSU Window – no PSU





Part# TGC-24390

  • 3U Rackmount Server Chassis, No PSU
  • 2 x External 5.25″
  • 4 x Fixed HDD Bays
  • 4 x Half-Height/Low Profile PCI-e Expansion Slots
  • Supports Micro ATX (9.6″ x 9.6″), Mini ITX (6.7″ x 6.7″) Motherboards

Features:

  • 2U rackmount design, meets EIARS-310C standard.
  • 2 x 5.25″ drive bay, 4 x 3.5″ drive bays
  • Support Micro ATX (9.6″ x 9.6″), Mini ITX (6.7″ x 6.7″) motherboard
  • Supplied with 2 x 80mm front ball bearing fans fitted
  • 2 x front accessible USB port (1x USB 3.0 + 1x USB 2.0)

Specifications:

  • Drive Bay: Supports 4 x 3.5″ drives and 2 x 5.25″ drives
  • Cooling Fan: 2 x 80mm front ball bearing fans
  • Switch: 1 x Power ON/OFF, 1 x System reset
  • Indicator: 1 x Power, 1 x HDD LEDs
  • Connector: 2 x front accessible USB ports (1x USB 3.0 + 1x USB 2.0)
  • Motherboard Compatibility:
    • Micro ATX (9.6″ x 9.6″)
    • Mini ITX (6.7″ x 6.7″)
  • Power Supply: Standard ATX
  • Dimensions (WxDxH): 430 x 390 x 88.8mm
  • Packing: single box
  • Weight: 6kg (approx)
  • Environment:
    • Operating Temp. 0°C ~ 55°C (32°F ~ 131°F)
    • Non-Operating Temp. -20°C ~ 60°C (-4°F ~ 140°F)
    • Relative Humidity: 5%~ 95%,non-condensing
  • Vibration (5-500Hz): 1g (Operating), 2g (Non-Operating)
  • Shock: 10g (with 11ms duration, half sine wave) (Operating), 30g (Non-Operating)
