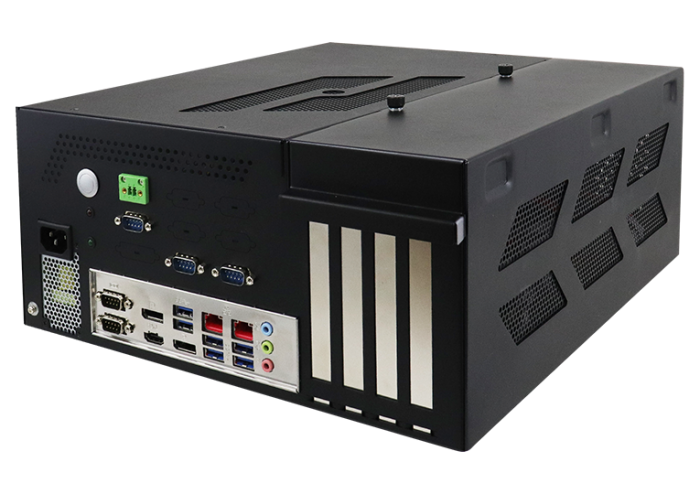

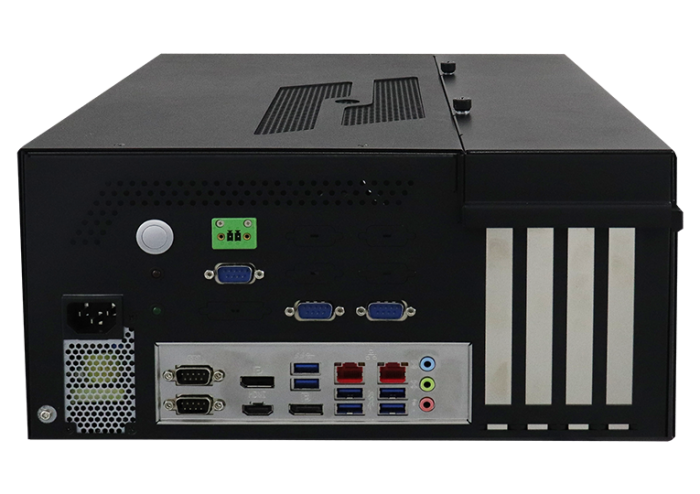

The CMB108 is a high-performance industrial computer engineered to meet the demanding needs of various industrial applications, leveraging the power of 13th/12th Gen Intel® Core™ i9/i7/i5/i3 DT processors (TDP 65W). It is also equipped with two DDR5-4800/5600 U-DIMM slots, supporting a maximum of 64GB, to ensure high-speed memory performance.

The CMB108 supports discrete GPU cards to provide enhanced graphics performance crucial for high-end applications. It features multiple expansion slots, including 1x PCI-E(x16) [PCI-E Gen.5], 1x PCI-E(x4) [PCI-E Gen.4], and 1x PCI-E(x4) [PCI-E Gen.3], allowing for significant expansion possibilities. Measuring 362(W) x 350(D) x 156(H)mm, this robust system is equipped with a 500W 1U Flex ATX power supply, ensuring reliable and uninterrupted performance in various industrial settings.

In addition to its powerful processing and expansion capabilities, the CMB108 boasts a range of connectivity and storage options. It supports multi-display interfaces including HDMI, DisplayPort, and DVI-D, along with 2.5GbE ports and USB 3.0 ports, enabling flexible and high-speed data transfers. The unit accommodates up to 4 sets of 2.5″ storage devices with RAID 0/1 support, 2x M-Key (2280) slots for NVMe, 1x E-Key (2230) for WiFi/BT (supporting CNVi), and 1x B-Key (3052) for 5G connectivity, addressing the growing demand for fast and efficient data processing and storage. The CMB108 is further enhanced with features such as fTPM, DIO, iAMT(16.1), and a watchdog timer, alongside a 2-pin remote boot extension design.

• CMB108 Datasheet
