Home » TGC 19” Rack-mount Server Chassis » Rack Mountable Server Chassis Case 2U 650mm Depth with ATX PSU Window – no PSU

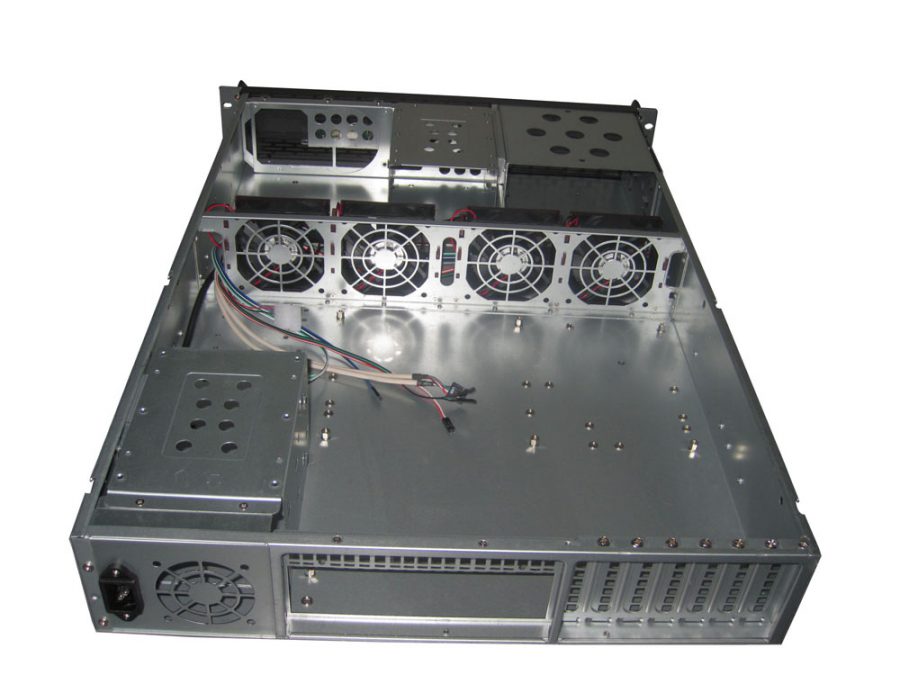

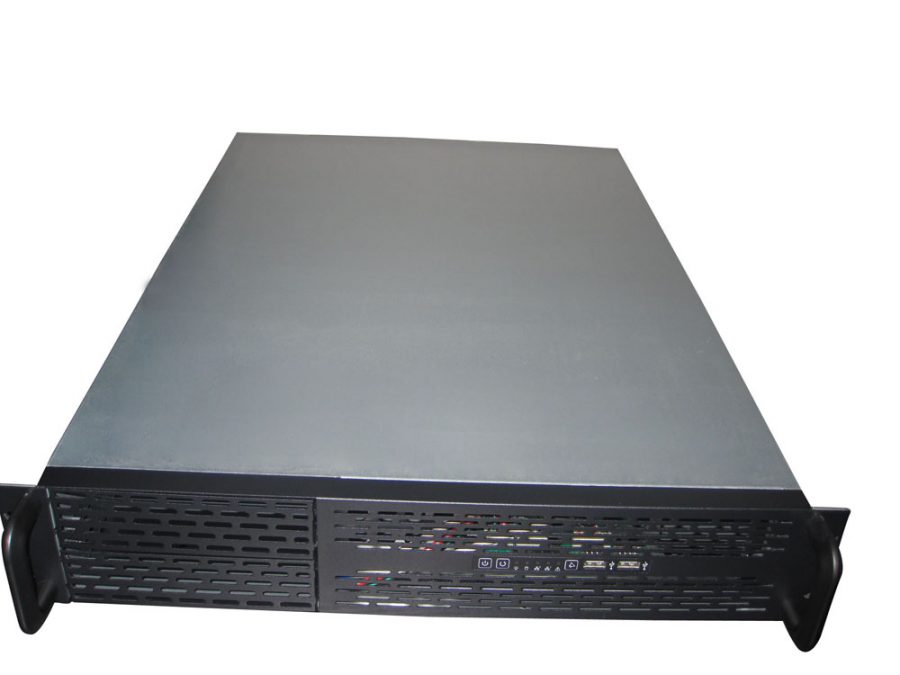

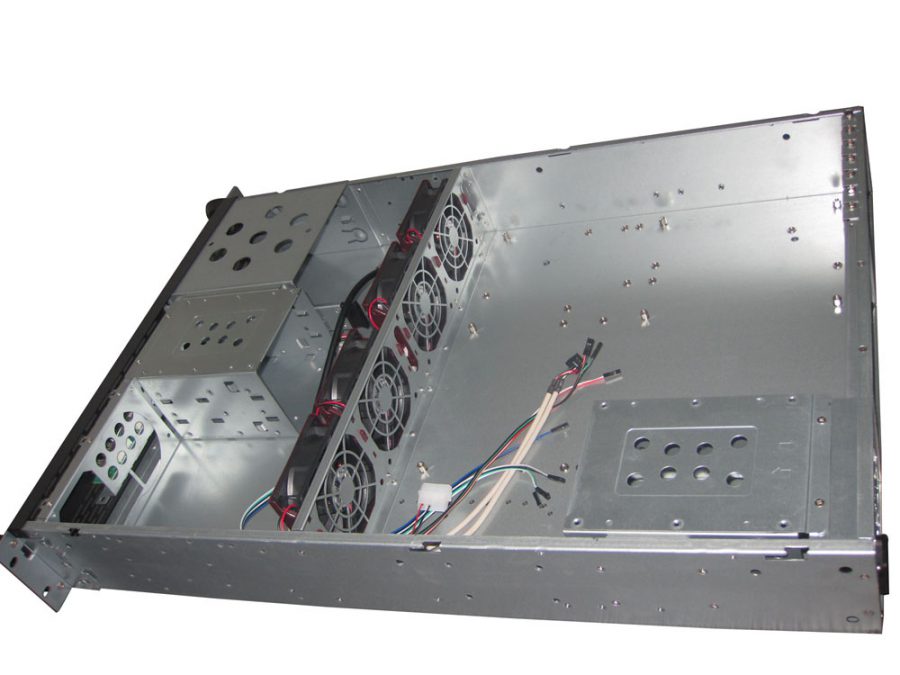

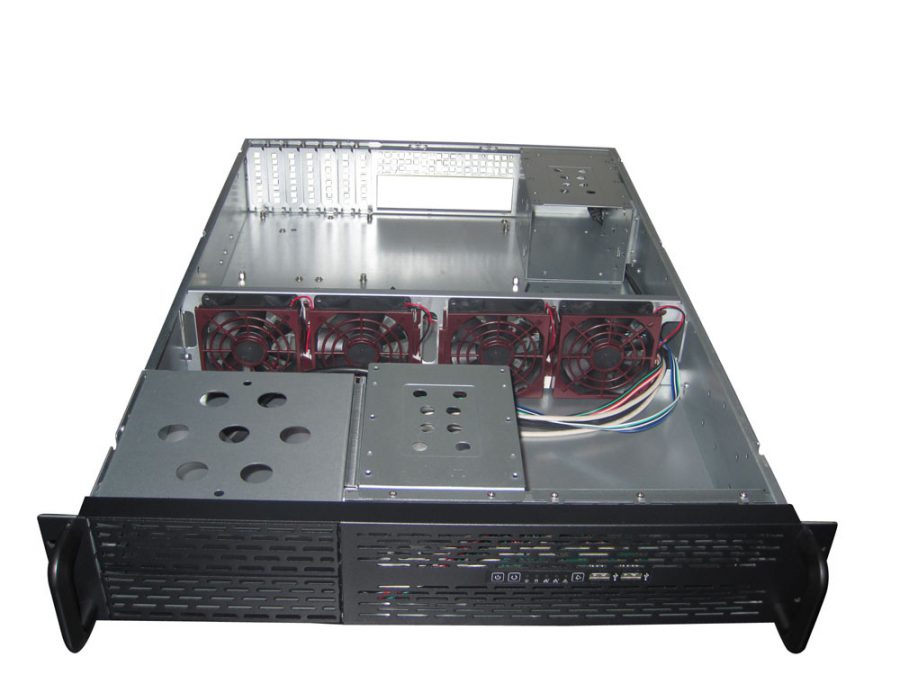

Rack Mountable Server Chassis Case 2U 650mm Depth with ATX PSU Window – no PSU



Part# TGC-23650

  • 2U Rackmount Server Chassis, No PSU
  • 2 x External 5.25″
  • 6 x Fixed HDD Bays
  • 7 x Low Profile Expansion Slots
  • Supports mATX, ATX, CEB, EEB Motherboards

Features:

  • 2U rackmount design, meets EIARS-310C standard.
  • 2 x 5.25″ drive bay, 6 x 3.5″ drive bays
  • 7 x Low Profile Expansions Slots
  • Support EEB (12″ x 13″), CEB(12″ x 10.5″), ATX (12″ x 9.6″), Micro ATX (9.6″ x 9.6″) motherboard
  • Supplied with 4 x 80mm front ball bearing fans fitted (middle)
  • 2 x front accessible USB 2.0 port

Specifications:

  • Drive Bay: Supports 6 x 3.5″ drives and 2 x 5.25″ drives
  • Cooling Fan: 4 x 80mm middle fans
  • Switch: 1 x Power ON/OFF, 1 x System reset
  • Indicator: 1 x Power ON/OFF, 1 x HDD, 2 x NETWORK
  • Connector: 2 x front accessible USB port
  • Motherboard Compatibility:
    • EEB (12″ x 13″)
    • CEB (12″ x 10.5″)
    • ATX (12″ x 9.6″)
    • Micro ATX (9.6″ x 9.6″)
  • Power Supply: Standard ATX (optional: standard 2U or Redundant 2U power supplies)
  • Dimensions (WxDxH): 430 x 650 x 89mm
  • Packing: single box
  • Weight: 9.4kg (approx)
  • Environment:
    • Operating Temp. 0°C ~ 55°C (32°F ~ 131°F)
    • Non-Operating Temp. -20°C ~ 60°C (-4°F ~ 140°F)
    • Relative Humidity: 5%~ 95%,non-condensing
  • Vibration (5-500Hz): 1g (Operating), 2g (Non-Operating)
  • Shock: 10g (with 11ms duration, half sine wave) (Operating), 30g (Non-Operating)
