Introduction

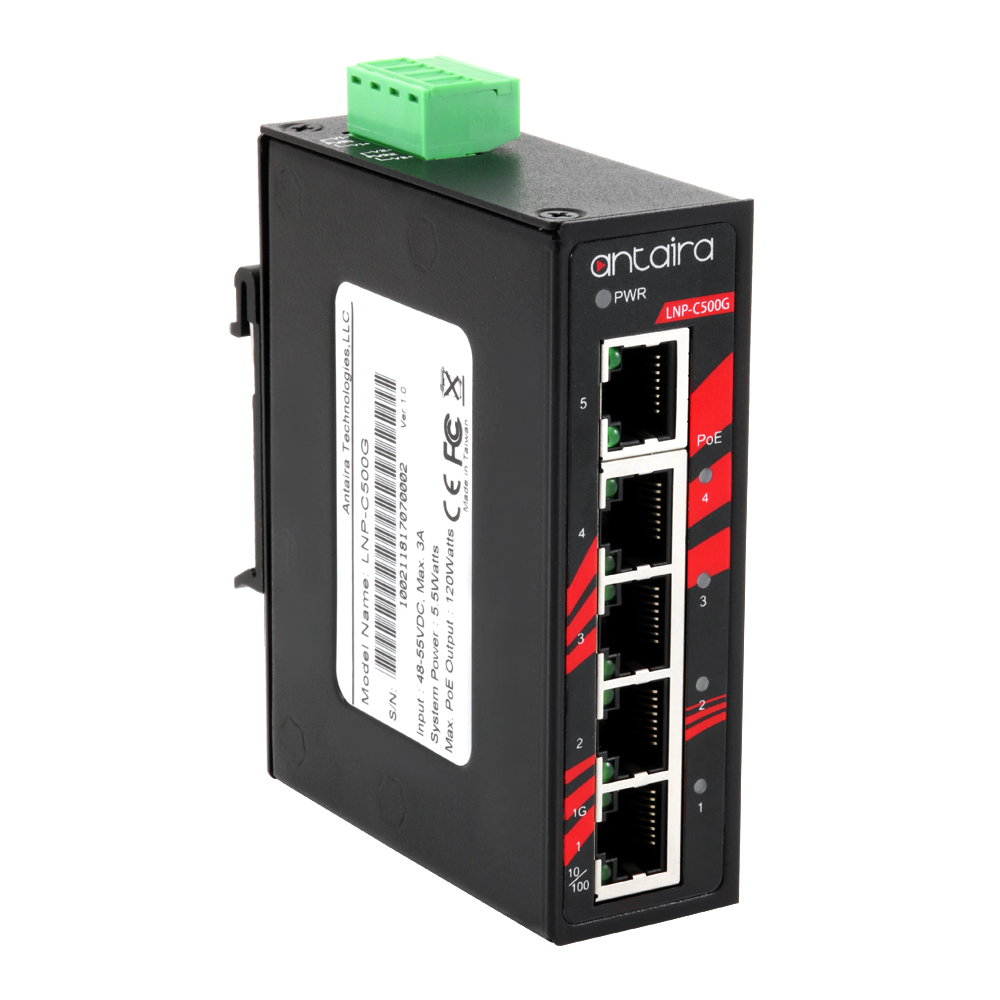

Antaira Technologies’ LNP-C500G is a compact 5-port industrial gigabit PoE+ unmanaged Ethernet switch. The small form factor of this metal IP30 rated design is 50% smaller allowing for a more versatile implementation. It is equipped with 4*10/100/1000Tx Ethernet ports that support IEEE 802.3af/at for a maximum of 30W/port and 1*10/100/1000Tx Ethernet port. It can handle high bandwidth applications in tight spaces.
LNP-C500G supports high EFT & ESD protection through the redundant power inputs that support reverse polarity and overload current protection. This model supports DIN-rail as well as wall mountable orientations, and support operating temperature from -10° to 70° C. This is an industrial grade unit applicable for networking applications in factory automation, ITS, power/utility, water wastewater treatment plants, or any application that needs a compact solution.
Package Content
- 1 – Quick Installation Guide
- 1 – LNP-C500G Industrial PoE+ Gigabit Unmanaged Ethernet Switch
- 1 – Wall mounting bracket set with screws
- 1 – DC cable – 18 AWG & DC jack 5.5×2.1mm
Technology
IEEE Standards
- IEEE 802.3 10Base-T Ethernet
- IEEE 802.3u 100Base-TX Fast Ethernet
- IEEE 802.3ab 1000Base-T Gigabit Ethernet
- IEEE 802.3x Flow Control
- IEEE 802.3af/at Power over Ethernet
Processing Type: Store and Forward
Flow Control: IEEE 802.3x flow control, back pressure flow control
Ethernet Interface
Ethernet Port Count: 5 ports
10/100/1000 BASE-T(X): 5 ports
PoE Port: 4 ports (30W/port)
PoE Pin Assignment: V+, V+, V-, V-, for pin 1, 2, 3, 6 (End-span, Mode A)
Performance
MAC Table Size: 8K
Transfer Rate
- 14,880pps for Ethernet Port
- 148,800pps for Fast Ethernet Port
- 1,488,000pps for Gigabit Ethernet Port
Switching Architecture: Back-Plane (Switching Fabric): 10Gbps
Power Requirements
Power Connection: Removable 4-contact terminal block
Input Voltage: 48V–55V DC, Redundant Input
System Power Consumption: 5.5 Watts
Max. PoE Power Budget: 120 Watts
Overload Current Protection: Present
Reverse Polarity Protection: Present
Environmental Limits
Operating Temperature: -10° to 70° C (14° to 158° F)
Storage Temperature: -40° to 85° C (-40° to 185° F)
Ambient Relative Humidity: 5% to 95% non-condensing
Mechanical Characteristics
Housing: Metal, IP30 protection

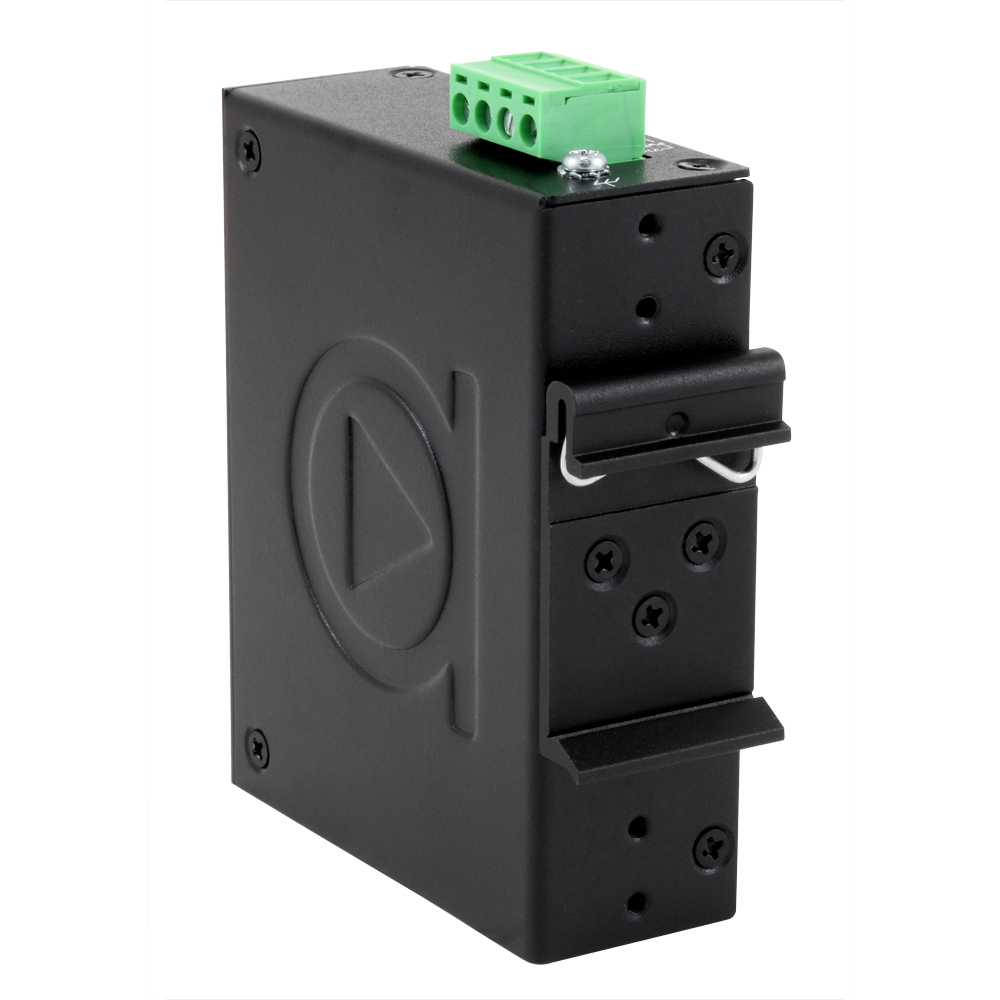

Mounting: DIN-Rail mount, Wall mount (Optional)
Dimensions (W × H × D): 30 × 95 × 75 mm
Weight
- Unit weight : 0.77 lbs
- Shipping weight: 0.99 lbs
Regulatory Approvals
UL 61010-1 / UL 61010-2-201: ✔
EMI
- FCC Part 15 Subpart B Class A
- CE EN 55032 Class A
- EN 61000-6-4 Class A
EMS
- CE EN 55024
- EN 61000-6-2
- IEC61000-4-2 (ESD)
- IEC61000-4-3 (RS)
- IEC61000-4-4 (EFT)
- IEC61000-4-5 (Surge)
- IEC61000-4-6 (CS)
- IEC61000-4-8 (Magnetic Field)
Stability Testing
- Free Fall: IEC60068-2-32
- Shock: IEC60068-2-27
- Vibration: IEC60068-2-6
