Introduction
Antaira’s LNP-1600G is a smart 16-port Industrial Unmanaged Ethernet Switch that supports IEEE-802.3at (Power-over-Ethernet Plus) on ports 1 to 16. This switch is classified as power sourcing equipment (PSE), and when used in this way, LNP-1600G enables centralization of the power supply and provides up to 30 watts of power per port. LNP-1600G can be used to power IEEE 802.3af or 802.3at compliant power devices (PD), eliminating the need for additional wiring, and supports IEEE 802.3/802.3u/802.3x with 10/100/1000BTx, full or half duplex, and MDI/MDI-X auto sensing to provide an economical solution for the Industrial Ethernet Network. In addition, the Network Broadcast Storm Protection and built-in relay warning function alerts network engineers when power failures or port breaks occur.
Package Content
- LNP-1600G
- DC Cable – 18 AWG with DC jack 5.5×2.1mm
- Quick Installation Guide
- RJ45 dust cover set
- Wall mounting bracket set with screws
Technology
IEEE Standards
- IEEE 802.3 10Base-T Ethernet
- IEEE 802.3u 100Base-TX Fast Ethernet
- IEEE 802.3ab 1000Base-T Gigabit Ethernet
- IEEE 802.3x Flow Control
- IEEE 802.3af/at Power over Ethernet
Processing Type: Store and Forward
Flow Control: IEEE 802.3x flow control, back pressure flow control
Ethernet Interface
Ethernet Port Count: 16 ports
10/100/1000 BASE-T(X): 16 ports
PoE Port: 16 ports (30W/port)
PoE Pin Assignment: V+, V+, V-, V-, for pin 1, 2, 3, 6 (End-span, Mode A)
Performance
MAC Table Size: 8K
Jumbo Frame: 9,216 bytes
Memory Buffer: 512 Kbytes
- 14,880pps for Ethernet Port
- 148,800pps for Fast Ethernet Port
- 1,488,000pps for Gigabit Ethernet Port
Switching Architecture: Back-Plane (Switching Fabric): 32Gbps
Power Requirements
Power Connection: Removable 6-contact terminal block
Input Voltage: 48V–55V DC, Redundant Input
Power Redundancy: Yes
Relay Output: 24V DC, 1A resistive
System Power Consumption: 13 Watts
Max. PoE Power Budget: 240 Watts
Overload Current Protection: Present
Reverse Polarity Protection: Present
Environmental Limits
Operating Temperature: -10° to 70° C (14° to 158° F)
Storage Temperature: -40° to 85° C (-40° to 185° F)
Ambient Relative Humidity: 5% to 95% non-condensing
Mechanical Characteristics
Housing: Metal, IP30 protection

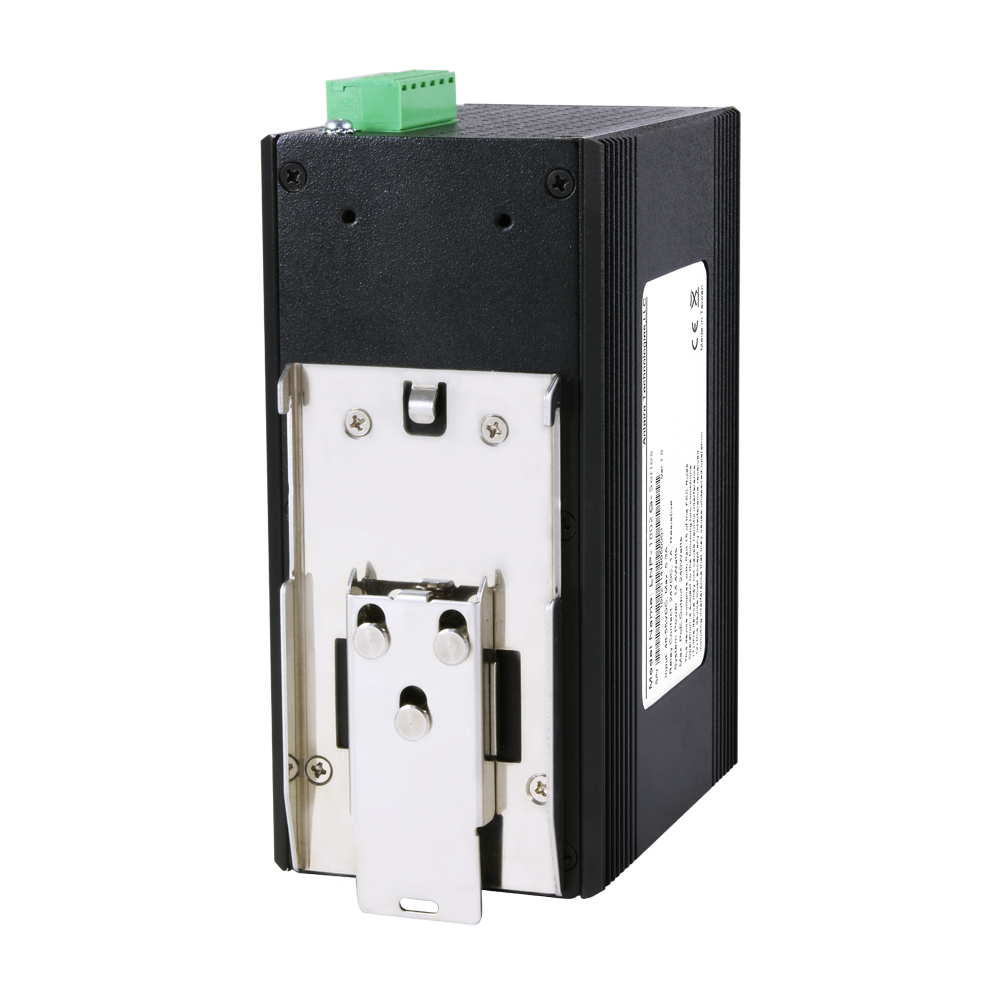

Mounting: DIN-Rail mount, Wall mount (Optional)
Dimensions (W × H × D): 67 × 142 × 99 mm
Weight
- Unit weight: 2.65 lbs
- Shipping weight: 3.09 lbs
Regulatory Approvals
- FCC Part 15 Subpart B Class A
- CE EN 55032 Class A
- EN 61000-6-4 Class A
EMS
- CE EN 55024
- EN 61000-6-2
- IEC61000-4-2 (ESD)
- IEC61000-4-3 (RS)
- IEC61000-4-4 (EFT)
- IEC61000-4-5 (Surge)
- IEC61000-4-6 (CS)
- IEC61000-4-8 (Magnetic Field)
Stability Testing
- Free Fall: IEC60068-2-32
- Shock: IEC60068-2-27
- Vibration: IEC60068-2-6
